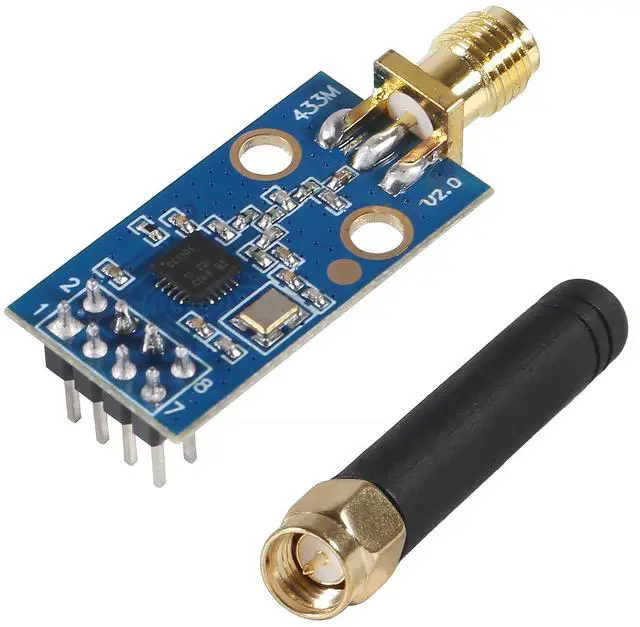

AOICRIE 3pcs CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315/433/868/915MHZ for Raspberry Pi
- CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module made of high-quality materials, durable.
- CC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources.
- Instantaneous maximum working current: <30mA; Maximum transmit power: 10mW (+10dBm).
- The CC1101 module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.
- This wireless transceiver module is an ideal choice for applications that require wireless connectivity, such as IoT devices, remote control systems, and wireless sensor networks.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

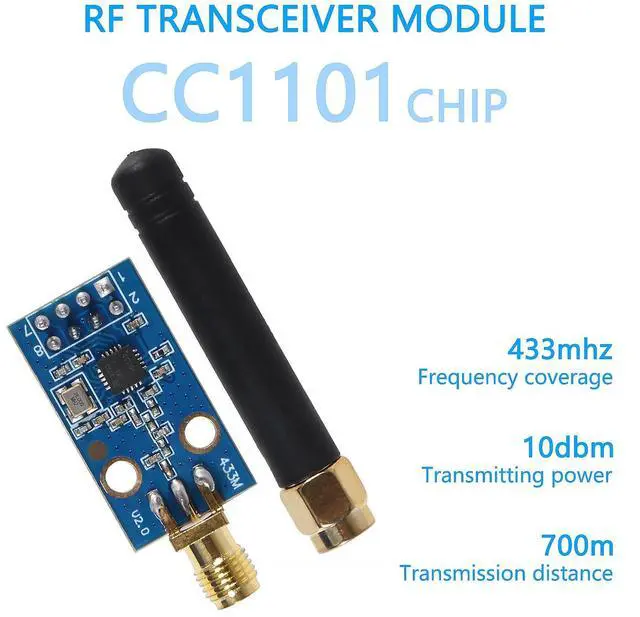

CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module
Continuous frequency band expansion:
CC 1100: 400 -464 MHz and 800-928 MHz
CC 1101: 387 -464 MHz and 779-928 MHz
Working voltage: DC 1.8V - 3.6V
Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz
Maximum instantaneous working current: <30mA;
Maximum transmit power: 10mW (+10dBm)
Support 2-FSK, GFSK and MSK modulation;
Receiver sensitivity -110dBm, 1200 baud
The minimum operating speed is 1.2 kbps, the maximum is 500kbps
Independent 64-byte RX and TX data FIFO buffer
Built-in hardware CRC error detection to ensure reliable data transmission
Support RSSI signal strength detection and carrier sensing functions
Low power consumption
Mailing address (256) Working frequency can be programmed via SPI
Programmable output power, supporting all frequencies up to +10 dBm
WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption
Fast frequency synthesizer with proper frequency hopping system
Package list:

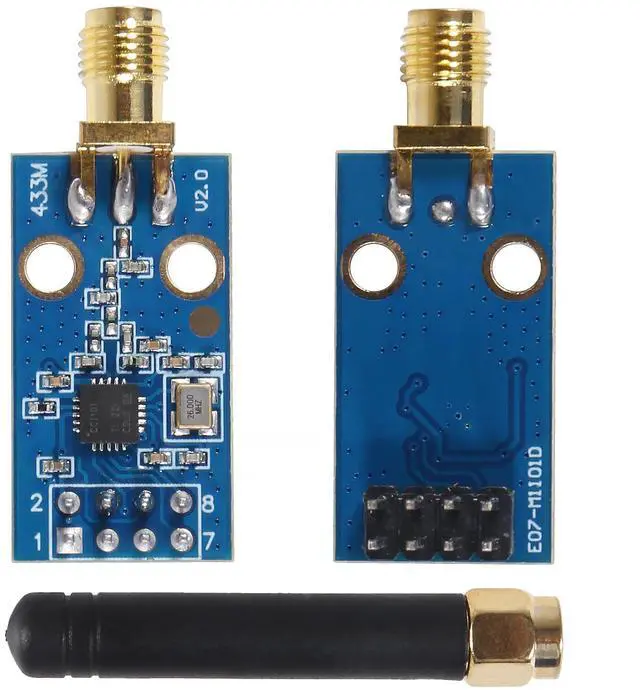

3 * Frequency Transceiver Module CC1101
3 * Antenna
Continuous frequency band expansion:
CC 1100: 400 -464 MHz and 800-928 MHz
CC 1101: 387 -464 MHz and 779-928 MHz
Working voltage: DC 1.8V - 3.6V
Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz
Maximum instantaneous working current: <30mA;
Maximum transmit power: 10mW (+10dBm)
Support 2-FSK, GFSK and MSK modulation;
Receiver sensitivity -110dBm, 1200 baud
The minimum operating speed is 1.2 kbps, the maximum is 500kbps
Independent 64-byte RX and TX data FIFO buffer
Built-in hardware CRC error detection to ensure reliable data transmission
Support RSSI signal strength detection and carrier sensing functions
Low power consumption
Mailing address (256) Working frequency can be programmed via SPI
Programmable output power, supporting all frequencies up to +10 dBm
WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption
Fast frequency synthesizer with proper frequency hopping system
Package list:
3 * Frequency Transceiver Module CC1101
3 * Antenna
