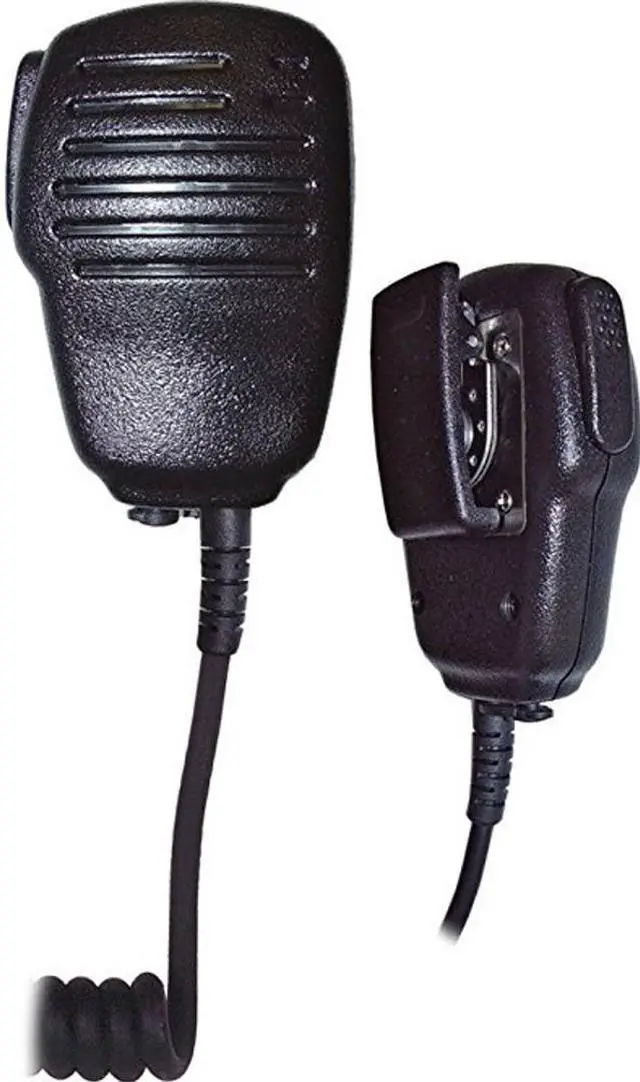

Klein Electronics Flare-M1 Flare Compact Speaker Microphone, For use with Motorola/Blackbox/HYT/Relm/TEKK Radios, Super rugged PTT Pust-To-Talk switch, Strong strin relief, Swivel clothing clip
- For use with Motorola/Blackbox/HYT/Relm/TEKK Radios
- Super rugged PTT Pust-To-Talk switch
- Strong strin relief, Swivel clothing clip, Heavy duty coil cord
- Includes 3.5mm audio port to add an optional Scorpion or Shadow lsten-only earpiece
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Klein Electronics Flare-M1 Flare Compact Speaker Microphone, For use with Motorola/Blackbox/HYT/Relm/TEKK Radios, Super rugged PTT Pust-To-Talk switch, Strong strin relief, Swivel clothing clipKey FeaturesFor use with Motorola/Blackbox/HYT/Relm/TEKK Radios Super rugged PTT Pust-To-Talk switch Strong strin relief Swivel clothing clip Heavy duty coil cord Includes 3.5 mm audio port to add an optional Scorpion or Shadow listen-only earpiece
SpecificationsSPEAKER Transducer: Moving coil dynamic speaker
Impedance: 8 Ohms +/- 15% @ 1KHz
Sensitivity: 120 +/- 3dB @ 1KHz
Resonance frequency: 400Hz +/- 20%
Frequency respond: F0-9KHz
Rated input power: 0.5W
Macimum input power: 1W
MICROPHONE Transducer: Electret condenser microphone
Impedance: Max 2.2 k Ohms @ 1KHz
Sensitivity: -34 +/- 2dB @ 1KHz 2.2 k Ohms 3V 0dB+1v/Pa
Directivity: Omni-directional
Frequency: 100Hz - 1600Hz
Max operation voltage: 10V
Standard operation voltage: 3V
Current consumption: Max 0.5 mA
S/N ratio: Min -34dB @ 1KHz
SpecificationsSPEAKER Transducer: Moving coil dynamic speaker
Impedance: 8 Ohms +/- 15% @ 1KHz
Sensitivity: 120 +/- 3dB @ 1KHz
Resonance frequency: 400Hz +/- 20%
Frequency respond: F0-9KHz
Rated input power: 0.5W
Macimum input power: 1W
MICROPHONE Transducer: Electret condenser microphone
Impedance: Max 2.2 k Ohms @ 1KHz
Sensitivity: -34 +/- 2dB @ 1KHz 2.2 k Ohms 3V 0dB+1v/Pa
Directivity: Omni-directional
Frequency: 100Hz - 1600Hz
Max operation voltage: 10V
Standard operation voltage: 3V
Current consumption: Max 0.5 mA
S/N ratio: Min -34dB @ 1KHz
