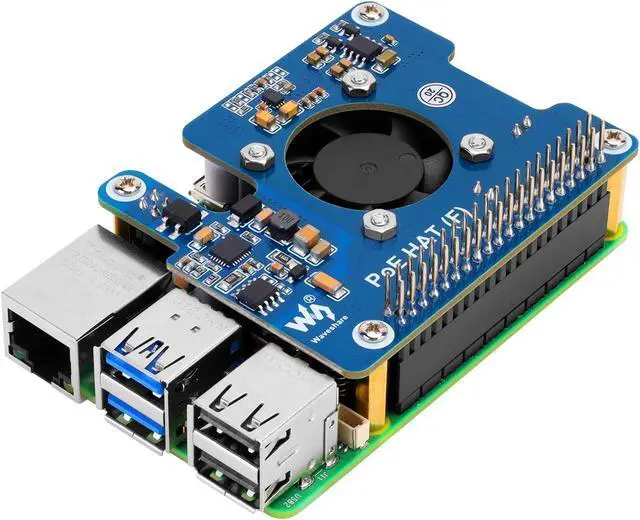

MakerFocus PoE HAT(F) for Raspberry Pi 5, Power Over Ethernet Hats with Metal Heatsink and Active Cooling Fan, Supports IEEE 802.3af/at Network, 5V/12V Power Output and SMPS

Description:
Power over Ethernet (PoE) expansion board for the Raspberry Pi 5, supporting the IEEE 802.3 af/at networking standard. It is suitable for use with PoE routers or switches that support the IEEE 802.3 af/at networking standard, allowing the Raspberry Pi to be networked and powered over a single cable

Highlights:

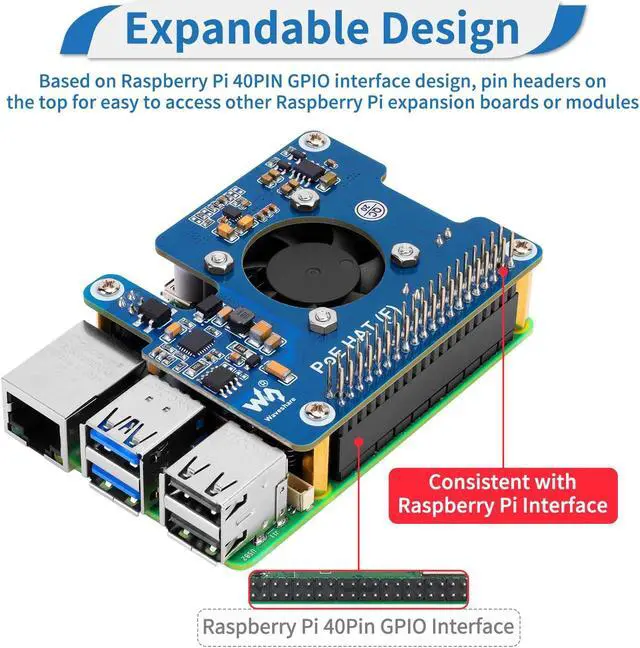

1. Based on the Raspberry Pi 40PIN GPIO interface for Raspberry Pi 5

2. Supports PoE Power over Ethernet, supports IEEE 802.3 af/at PoE network standard

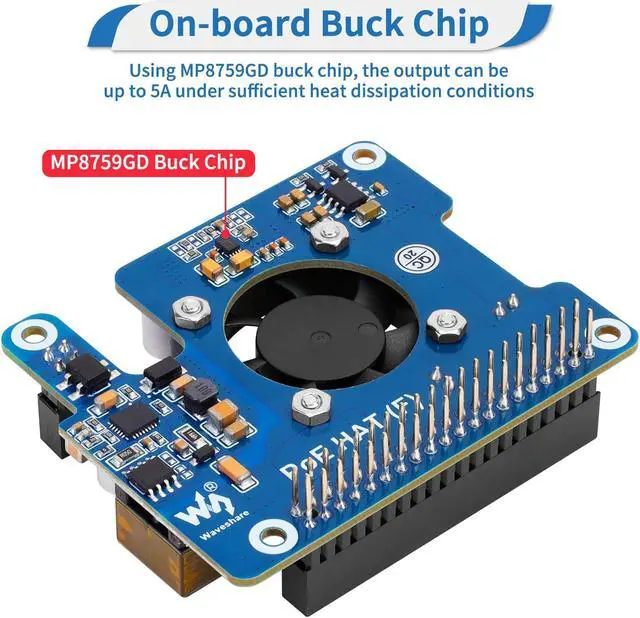

3. Fully isolated switched mode power supply (SMPS)

4. Onboard high speed active cooling fan and metal heat sink to accelerate heat dissipation

How to Install?
Put on the thermal tape first, then install the metal heat sink, and then install the PoE expansion board

Parameters:
PoE power input: 37V ~ 57V DC input
Dimensions: 56.5 x 70.0 mm

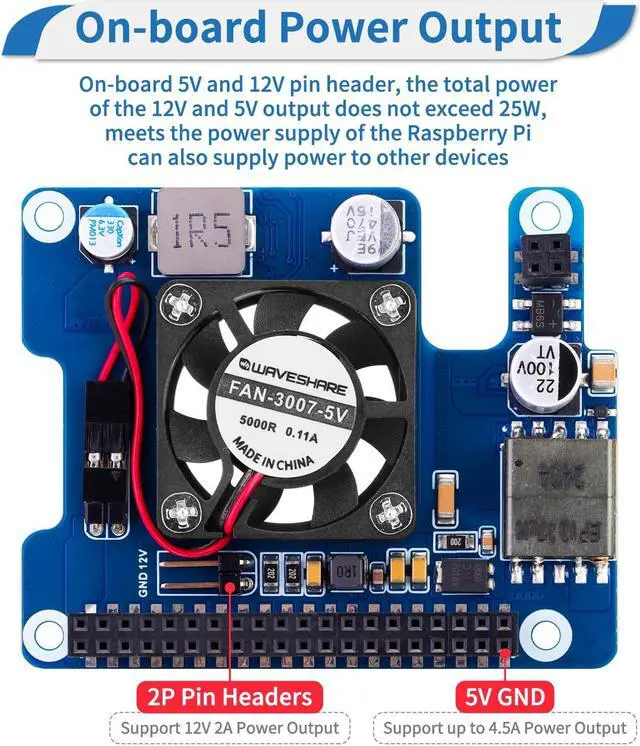

Power Output:
GPIO pin: 5V 4.5A (max)
2P Pin: 12V 2A (Max)

Note:

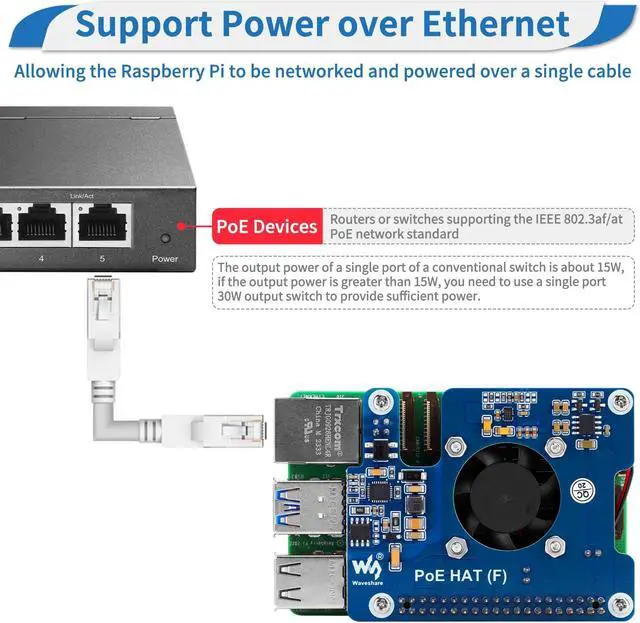

The output power of a single port of a conventional switch is about 15W, if the output power is greater than 15W, you need to use a single port 30W output switch to provide sufficient power

Package Contents:
1 * PoE HAT (F)
1 * Metal Heatsink
3 * Thermal Tape
5 * Studs
9 * Screws
