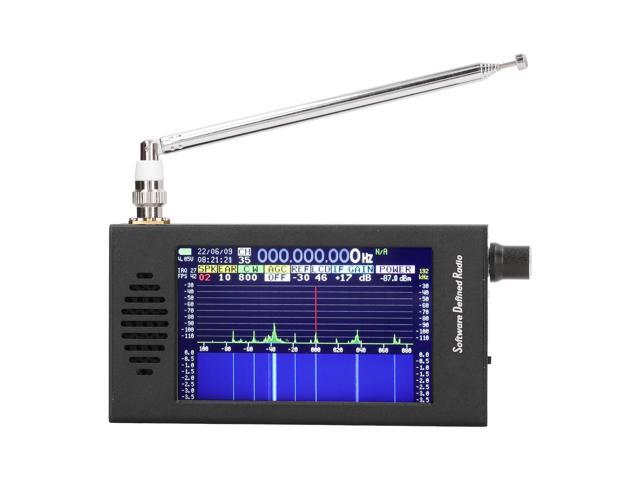

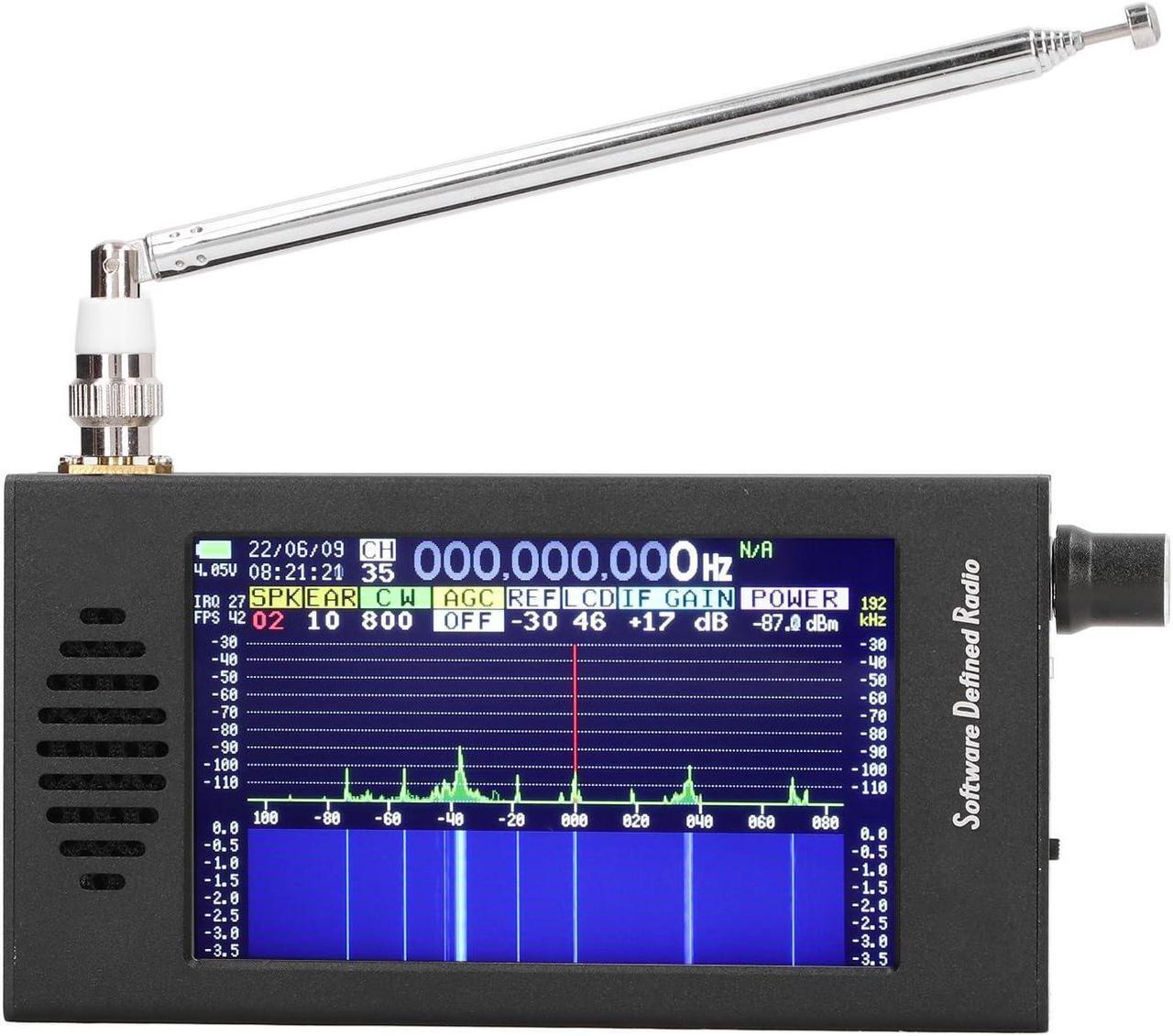

4.3 inch Touchscreen Portable Receiver 100KHz-149MHz SDR DSP Digital Demodulation Shortwave FM MW SSB CW HAM Radio Receiver
- PORTABLE RECEIVER: This DSP digital demodulation receiver, based on SDR software defined radio architecture, has 192kHz wide spectrum and waterfall display capabilities, combined with 16bit sampling could achieve CW, , SSB, FM, WFM demodulation functions.
- EXCELLENT RECEPTION EFFECT: This full frequency band amateur radio receiver is equipped with powerful DSP chip and a long retractable antenna, with excellent quality, can receive various channels without any interference.
- LCD DISPLAY: The SDR receiver adopts all aluminum alloy CNC shell, equipped with 4.3 inch 800x480 resolution high brightness IPS LCD display.

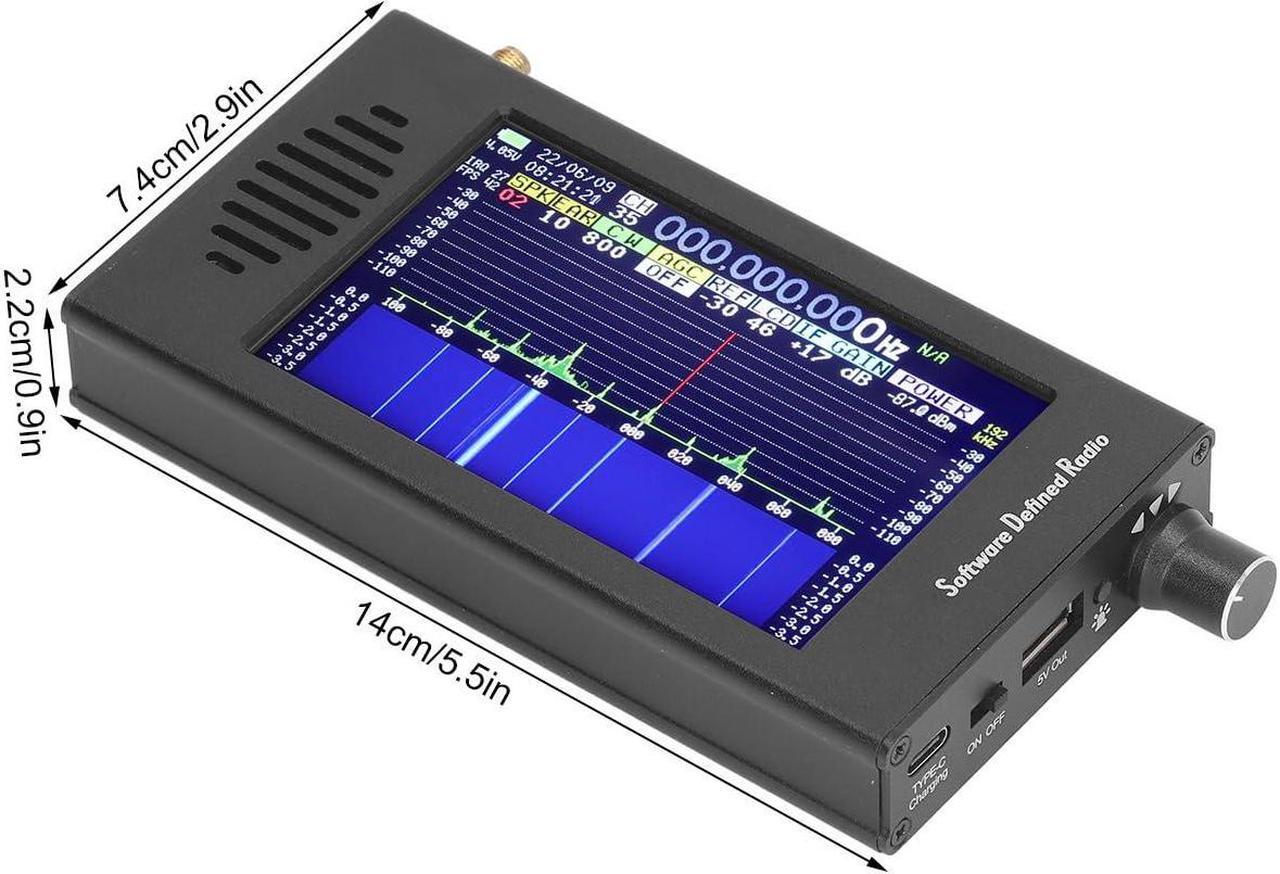

- COMPATIBLE HEADPHONE: With a compact size of 14x7.4x2.2mm, you can take it anywhere. Supports regular 3.5mm headphones or CTIA (US standard) interface headphones.
- HIGH CAPACITY BATTERY: Built in 5000mAh 3.7V battery, can be used for about 10 to 12 hours (depending on the volume and brightness settings of the machine).
+
+
Overview
Specs
Reviews
Specification:
Item Type: DSP SDR Radio Receiver
Material: Aluminum alloy
Display Technology: 4.3 inch IPS 800x480 resolution DC dimming high bright LCD screen
Control Method: Resistive touch screen, rotary encoder
Channel Selection: 1-99
Frequency: 100K to 149MHz, minimum step 1HZ
Speaker Volume (SPK): 0-35dB, 1dB step
Earphone Volume (EAR): 0-35dB, 1dB step
Modulation: CW, LSB, USB, AM, WFM, STE (FM stereo), I Q
AGC Settings: OFF, SLOW, MID, FAST
Reference Level (REF): -99 to 99dB, 1dB step
IF Gain: -12 to 67dB, 1dB step
Spectral Style Settings: Green supplement, green line, blue supplement, white line
Spectrum Bandwidth: RF spectrum (192kHz, 128kHz, 64kHz); Audio spectrum (64kHz)
Waterfall Area Setting: Waterfall or waveform (amplitude x1 x8 x64)
Five items that cannot be selected by the encoder:
A. Battery level display
B. Date and time settings
C.
Station information display: preset station name capability
D. Display current spectral width
E. Input (POWER) antenna port POWER display
Working Mode: Single sideband CW, AM, SSB (LSB USB), WFM, stereo FM (requires headphones)
Step Frequency: 1Hz 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz
Spectrum Bandwidth: 192kHz, 128kHz, 64kHz, FFT real time spectrum display
Antenna Interface: BNC male, impedance 50O, maximum input power -20dBm
Reference Crystal Oscillator: TCXO 26MHz +- 0.5 ppm
Audio Interface: Support regular 3.5 mm headphones or CTIA (US standard) headphone interface
Speaker Power: Maximum 3W, multimedia speaker 4O
Charging Port: USB Type C, 5.0V 2A
Current Consumption: About 250mA at 5V
Battery Capacity: 5000mAh 3.7V (built in)

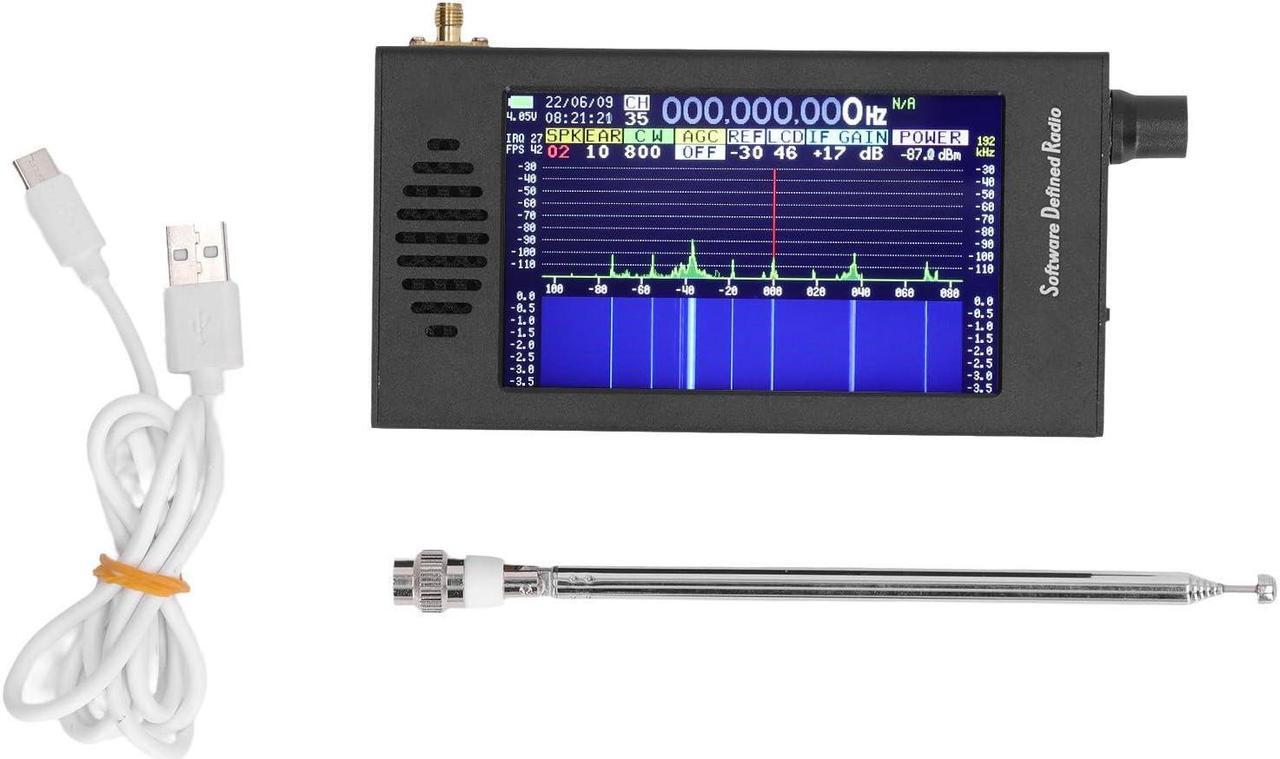

Package List:
1 x DSP SDR Radio Receiver
1 x Antenna
1 x Data Cable
1 x Instruction Manual
Item Type: DSP SDR Radio Receiver
Material: Aluminum alloy
Display Technology: 4.3 inch IPS 800x480 resolution DC dimming high bright LCD screen
Control Method: Resistive touch screen, rotary encoder
Channel Selection: 1-99
Frequency: 100K to 149MHz, minimum step 1HZ
Speaker Volume (SPK): 0-35dB, 1dB step
Earphone Volume (EAR): 0-35dB, 1dB step
Modulation: CW, LSB, USB, AM, WFM, STE (FM stereo), I Q
AGC Settings: OFF, SLOW, MID, FAST
Reference Level (REF): -99 to 99dB, 1dB step
IF Gain: -12 to 67dB, 1dB step
Spectral Style Settings: Green supplement, green line, blue supplement, white line
Spectrum Bandwidth: RF spectrum (192kHz, 128kHz, 64kHz); Audio spectrum (64kHz)
Waterfall Area Setting: Waterfall or waveform (amplitude x1 x8 x64)
Five items that cannot be selected by the encoder:
A. Battery level display
B. Date and time settings
C.
Station information display: preset station name capability
D. Display current spectral width
E. Input (POWER) antenna port POWER display
Working Mode: Single sideband CW, AM, SSB (LSB USB), WFM, stereo FM (requires headphones)
Step Frequency: 1Hz 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz
Spectrum Bandwidth: 192kHz, 128kHz, 64kHz, FFT real time spectrum display
Antenna Interface: BNC male, impedance 50O, maximum input power -20dBm
Reference Crystal Oscillator: TCXO 26MHz +- 0.5 ppm
Audio Interface: Support regular 3.5 mm headphones or CTIA (US standard) headphone interface
Speaker Power: Maximum 3W, multimedia speaker 4O
Charging Port: USB Type C, 5.0V 2A
Current Consumption: About 250mA at 5V
Battery Capacity: 5000mAh 3.7V (built in)
Package List:
1 x DSP SDR Radio Receiver
1 x Antenna
1 x Data Cable
1 x Instruction Manual
