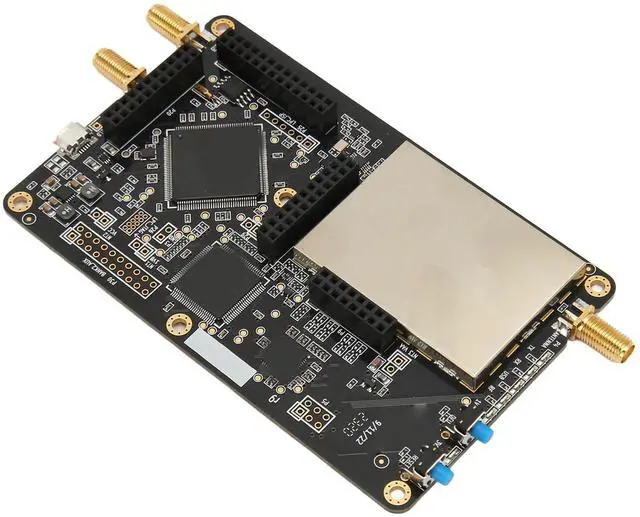

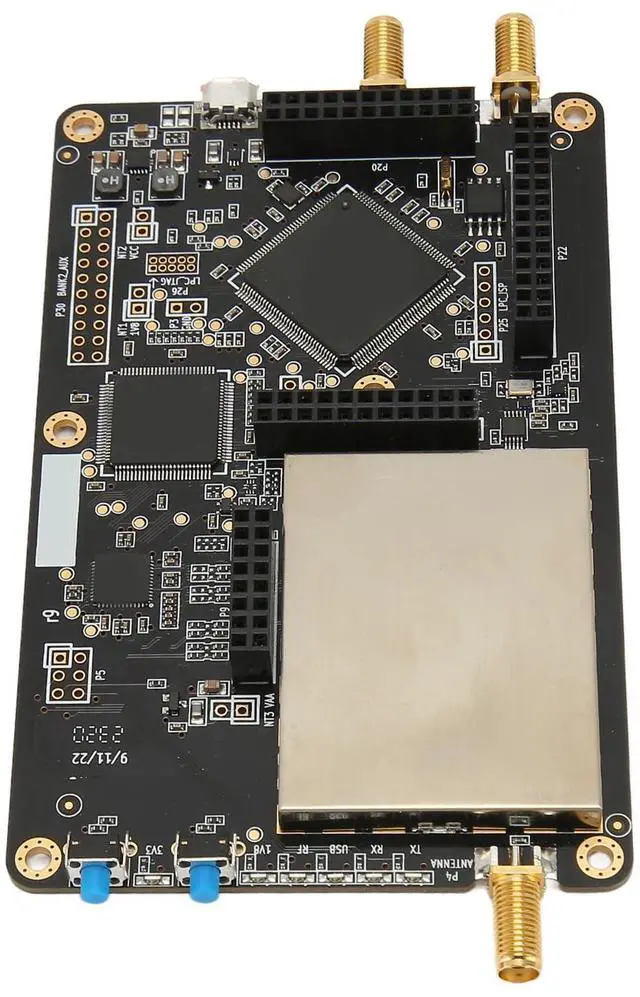

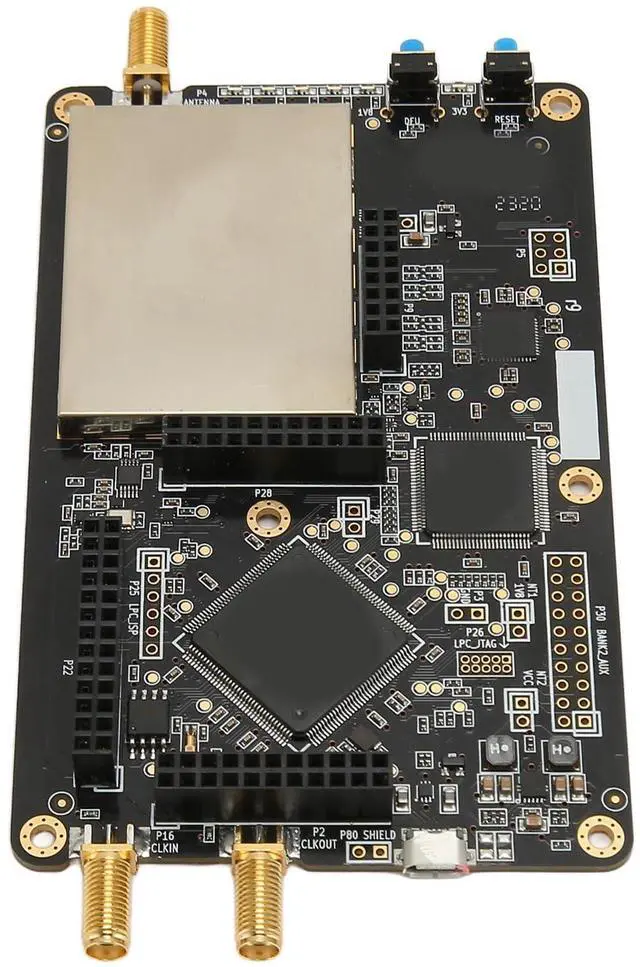

Yunseity Software Defined Radio, Good Compatibility 20MHz Data Bandwidth Stable Performance SDR Development Board 1MHz6GHz Excellent PCB for Radio Testing (Mainboard USB SMA

1.
Frequency Range: Fully open source software radio development with a wide frequency range of 1MHz6GHz, supporting for Windows, for Linux, for OS X, for Android, and other systems.

2.
Multiple Functions: With working frequency band, filtering, mixing amplification, modulation and demodulation type, data format, encryption mode, comm protocol and other functions.

3.
Main Purpose: Designed to support modern and next generation radio technology testing and development, it can be used as a USB peripheral or programmed for independent.

4.
High Efficiency: This SDR development board uses a half duplex transceiver, with up to 20 million samples per second, with high efficiency, and compatibility with most software.

5.
Easy Installation: With exquisite craftsmanship, this development board has standard interfaces and mounting holes, making it easy to install and program, meeting more DIY development needs.

Specification:
Item Type: SDR Development Board
Material: PCB
Basic Parameters:
Design Frequency: 1MHz-6000MHz
Data Bandwidth: 20MHz
Sampling Accuracy ADC DAC: 8bit
Sampling Rate ADC DAC: 20Mbps
Data And Power Supply Interface: USB 2.0
Open Source Level: Fully Open Source (software, hardware)
RF Indicator:
Maximum Power: 10dBm (less than the minimum stray power according to radio regulation)
Maximum Receiving Power: -5dBm
(Note: Exceeding this value will burn the board)
64QAM Emission EVM: 1.5 %
Multiple Sampling Bandwidth: 20MHz

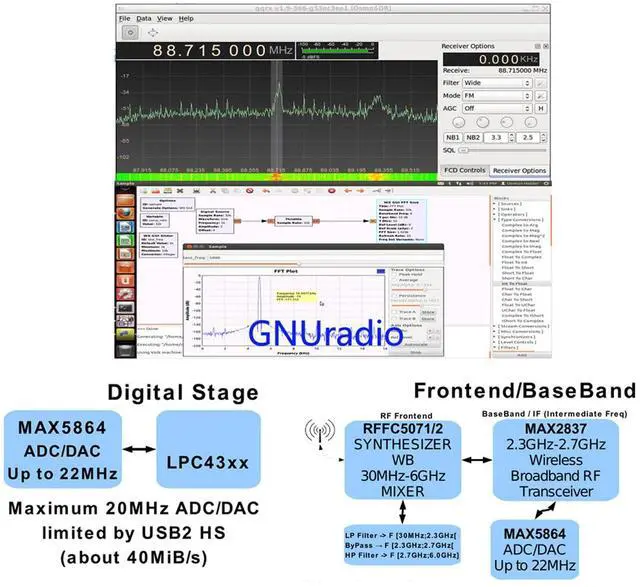

Main Hardware:
RFFC5072: Mixer provides local oscillator from 80MHz to 4200MHz
MAX 2837: 2. 3GHz to 2.7GH z broadband RF transceiver
MAX5864: ADC DAC, 22MHz sampling accuracy 8bit
LPC4320/4330: For ARM Cortex M4 processor, 204MHz
Si5351B: I2C programmable arbitrary CMOS clock generator with 40MHz and sampling clock provided by 800MHz division
MGA 81563: 0. 1-6GHz 3v 14dBm
