Coolwell Waveshare 2.9inch E-Paper Module Raspberry Pi E Paper Display 296x128 SPI Interface for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH Jetson Nano Ardui
- The 2.9 inch screen has no backlight, keeps displaying last content for a long time even when power down
- This Raspberry Pi epaper display is ultra low power consumption, basically power is only required for refreshing
- The epaper eink screen for Raspberry Pi with SPI interface, for connecting with controller boards like Raspberry Pi/Ardui/Nucleo, etc.
- The 2.9inch E-Ink Display Module onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32), feel free to contact us if you need our help.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

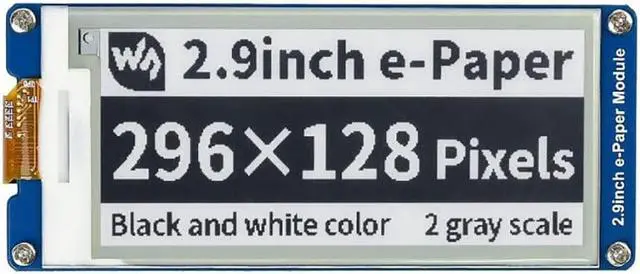

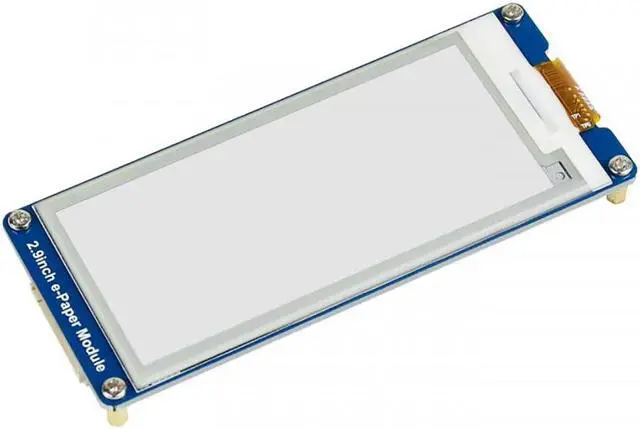

This is an E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications
such as shelf label, industrial instrument, and so on.
Operating voltage: 3.3V /5V

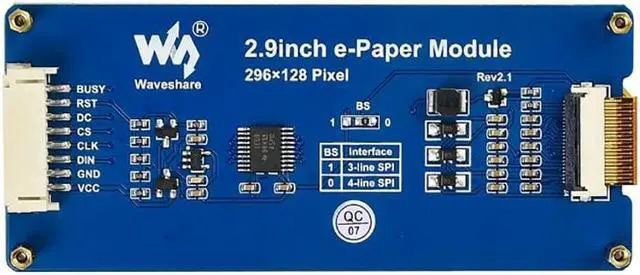

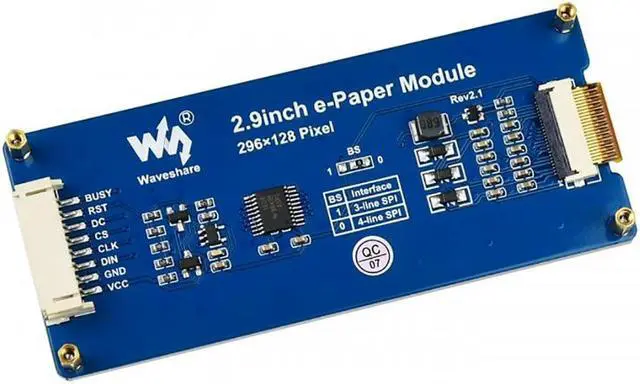

Interface: 3-wire SPI, 4-wire SPI

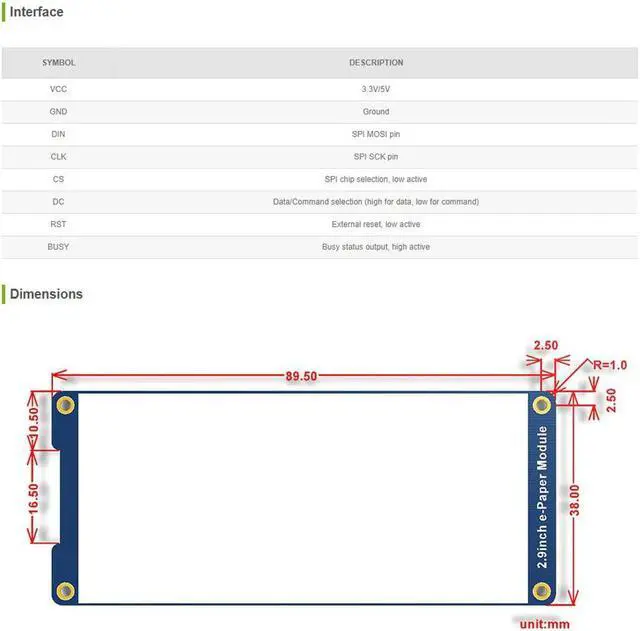

Outline dimension: 89.5 mm × 38mm
Display size: 66.89 mm × 29.05 mm
Dot pitch: 0.138 × 0.138
Resolution: 296 × 128
Display color: black, white
Grey level: 2
Partial refresh time: 0.3 s
Full refresh time: 2s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170°
Package include
1. 2.9 inch e-Paper Module x1
2. PH 2.0 20cm 8Pin x1
This is an E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications
such as shelf label, industrial instrument, and so on.
Specifications
Operating voltage: 3.3V /5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5 mm × 38mm
Display size: 66.89 mm × 29.05 mm
Dot pitch: 0.138 × 0.138
Resolution: 296 × 128
Display color: black, white
Grey level: 2
Partial refresh time: 0.3 s
Full refresh time: 2s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170°
Package include
1. 2.9 inch e-Paper Module x1
2. PH 2.0 20cm 8Pin x1
