Novastar MSD300 Sending Card Led Display Synchronous Control Card(Update Version) with Software Configuration Instruction

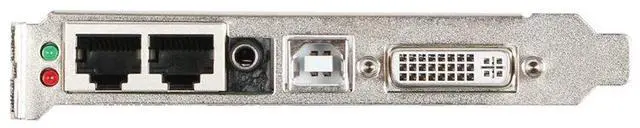

- 1 DVI video input; 1 audio input.
- 2 Ethernet port outputs.
- USB control interface which is able to be cascaded for uniform control.
- Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668.
- 1 light sensor interface.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description:

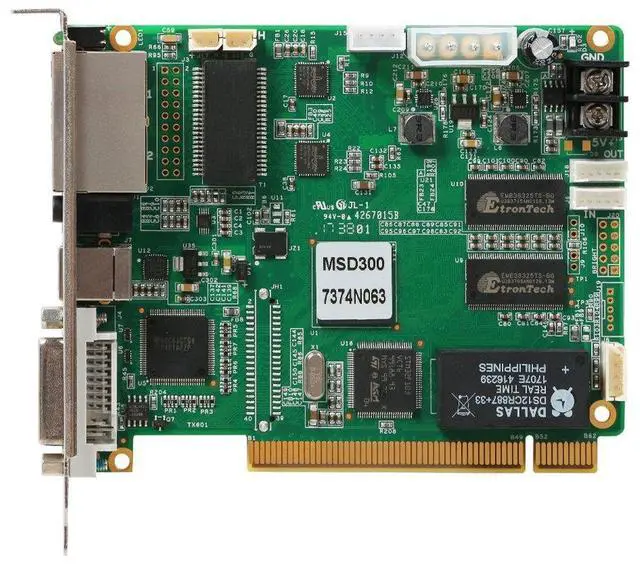

The Novastar MSD300 is the sending card for the Novastar Mars M3 Platform. This product is also available inside of an aluminum enclosure under the part number MCTRL300.
Product Specification:
Product Type Sending card
Capacity 1.3 million pixels
Supply Voltage 5.0V
Control Method USB Interface
Video Interface DVI
Audio Interface 3.5 mm
Video Format RGB
Output Interface 2 Ethernet ports
Bit Depth Of Video Resource 8bit
Light Sensor Interface 1
Certification RoHSCE
Usage Tips:
LED Indicator
Red Light:
It is steady on when the equipment runs normally and blinks during authorization
Green Light:
It blinks slowly when no video source is available. (The light keeps on for 2 seconds and then off for 2 seconds. )
It blinks normally when the video source is available. (It blinks about twice per second. ). It blinks quickly when start-up screen is displayed. when the redundancy works, the indicator fades gradually.
Software is available if you need!
The Novastar MSD300 is the sending card for the Novastar Mars M3 Platform. This product is also available inside of an aluminum enclosure under the part number MCTRL300.
Product Specification:
Product Type Sending card
Capacity 1.3 million pixels
Supply Voltage 5.0V
Control Method USB Interface
Video Interface DVI
Audio Interface 3.5 mm
Video Format RGB
Output Interface 2 Ethernet ports
Bit Depth Of Video Resource 8bit
Light Sensor Interface 1
Certification RoHSCE
Usage Tips:
LED Indicator
Red Light:
It is steady on when the equipment runs normally and blinks during authorization
Green Light:
It blinks slowly when no video source is available. (The light keeps on for 2 seconds and then off for 2 seconds. )
It blinks normally when the video source is available. (It blinks about twice per second. ). It blinks quickly when start-up screen is displayed. when the redundancy works, the indicator fades gradually.
Software is available if you need!
