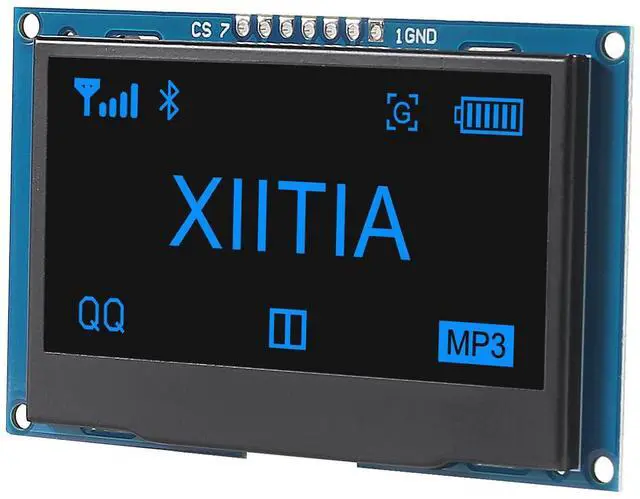

XIITIA 2pcs 2.42 inch 128x64 OLED LCD Display Module SSD1309 7 Pin SPI/IIC I2C Serial Interface for Arduino UNO R3 (Blue Light)
- Diagonal Screen Size: 2.42 inch
- Driver IC: SSD1309
- 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.

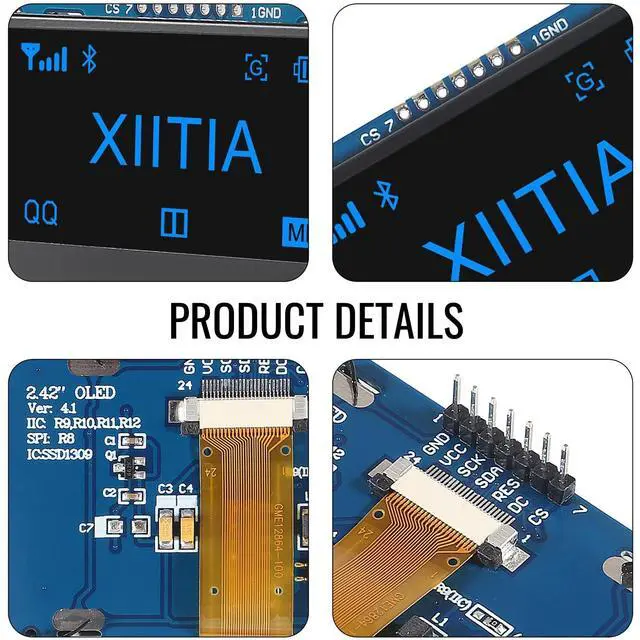

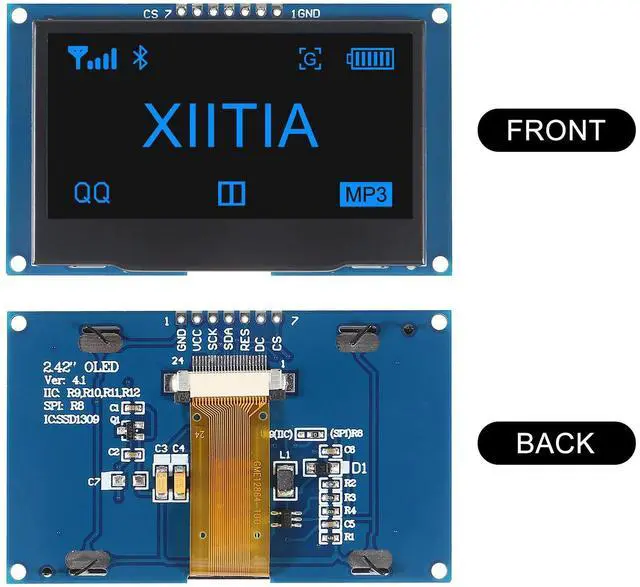

- SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5.
- For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Driver Chip: SSD1309
Support interface IIC/SPI
Resolution 128×64
Display Size: 2.42 inches
Display Color: white/blue/yellow/green

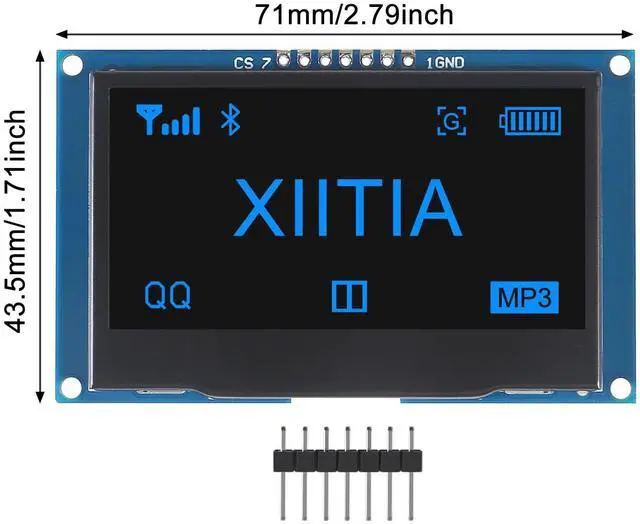

Module Size: 71× 43.5 (mm)
Glass Size: 60.5 × 37.00 × (mm)
Display Area: 55.02 × 27.49 (mm)
Drive Voltage: 3.3 -5V
Number of Pins: 7PIN
Viewing Angle >160°
Working Temperature: -40~70
Storage Temperature: -40~80
SPI Interface Definition:
GND: Power Ground
VDD: Power Supply Positive ( 2.8 - 5.5V )
SCK: Clock Line
SDA: Data Line
RES: Reset Line
DC: Data/Command
CS: Chip Select
Package Included:

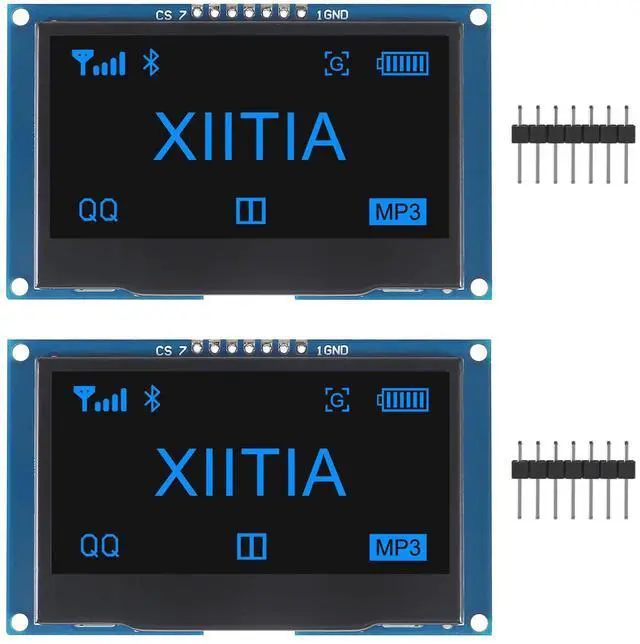

2 x Display Module
