2.13inch E-Ink Display HAT V4 Version Compatible with Raspberry Pi 5/ 4B/3B+/3B/2B/A+/Zero W/Zero 2 W/Pico W/Pico 2WJetson Nano, 250x122 Pixel e-Paper HAT, SPI Interface, Support Partial Refresh
- 2.13inch E-Ink display HAT, Black and White display color, 3.3V/5V operating voltage. Compatible with Raspberry Pi 5/ 4B/3B+/3B/2B/A+/Zero W/Zero 2 W/Pico W/ Pico 2W Jetson Nano,etc.
- It is E-Ink Display, which is no backlight required, and it can keep displaying last content for a long time even when power down. Which is suitable for scenarios that require long-term static display (such as electronic labels, information boards).
- Ultra low power consumption, basically power is only required for refreshing. The standby current is less than 0.01uA (almost none), and the typical refresh power consumption is 26.4mW. Partial refresh takes only 0.3s, and full refresh time takes 2s, which significantly improves the interactive experience and reduces the frequency of full-screen flickering.
- SPI interface, for connecting with controller boards like Ardu/STM32, etc. Provides Online Pinout and sample programs.
- Comes with Online Tutorial Usage Guide / Driver Board Circuit Diag
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

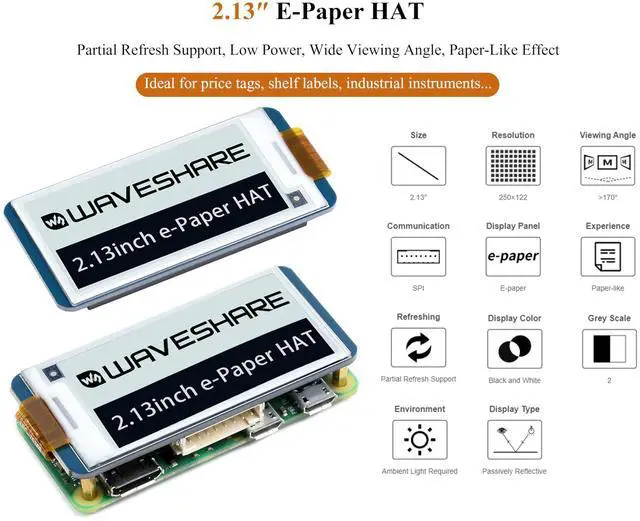

This is an E-Ink display HAT Compatible with Raspberry Pi, 2.13 inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

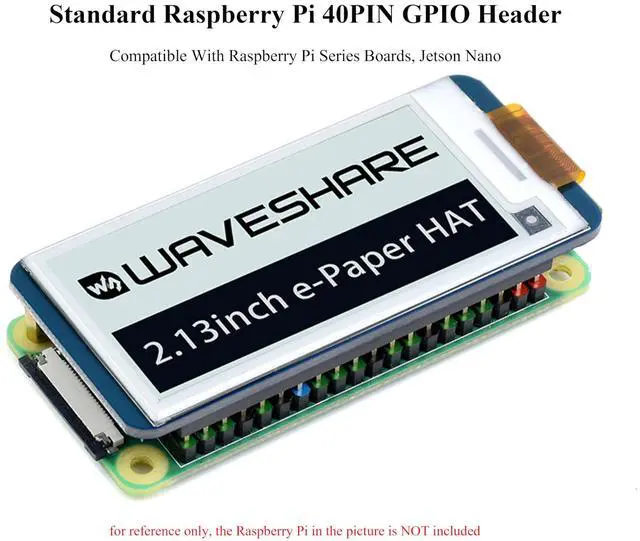

Standard Pi 40PIN GPIO extension header, supports RPi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Ardui/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V /5V MCUs
Comes with development resources and manual (examples for RPi/Jetson Nano/Arduio/STM32, etc. ).
Please check: n9. cl/vtl3sa
Operating voltage: 3.3V /5V
Interface: SPI
Outline dimension: 65mm x 30.2 mm
Display size: 23.71 mm x 48.55 mm
Dot pitch: 0.194 x 0.194
Resolution: 250 x 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3 s
Full refresh time: 2s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170°

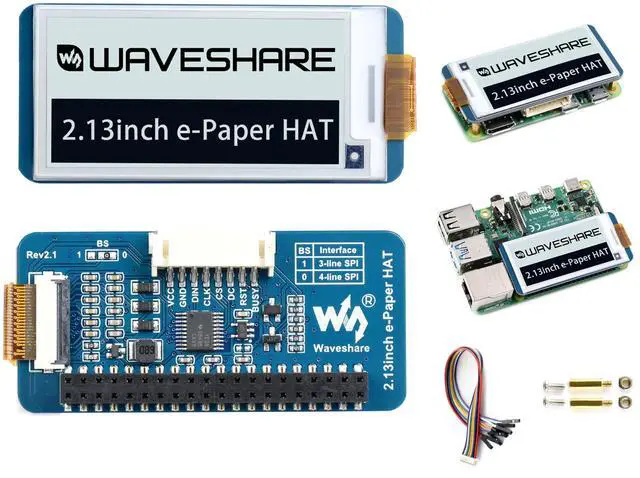

Package Content
1.2. 13inch e-Paper HAT x1
2. RPi screws pack (2pcs) x1
3. PH 2.0 20cm x1
This is an E-Ink display HAT Compatible with Raspberry Pi, 2.13 inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Pi 40PIN GPIO extension header, supports RPi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Ardui/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V /5V MCUs
Comes with development resources and manual (examples for RPi/Jetson Nano/Arduio/STM32, etc. ).
Please check: n9. cl/vtl3sa

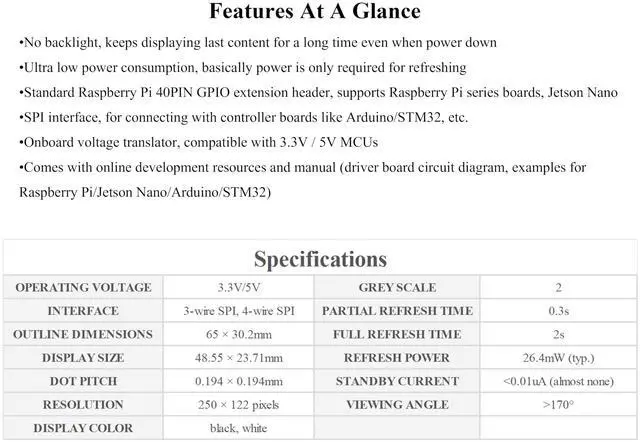

Specifications
Operating voltage: 3.3V /5V
Interface: SPI

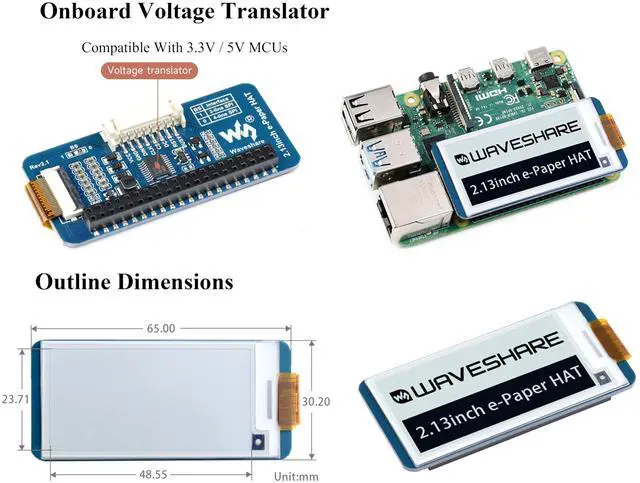

Outline dimension: 65mm x 30.2 mm
Display size: 23.71 mm x 48.55 mm
Dot pitch: 0.194 x 0.194
Resolution: 250 x 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3 s
Full refresh time: 2s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170°
Package Content
1.2. 13inch e-Paper HAT x1
2. RPi screws pack (2pcs) x1
3. PH 2.0 20cm x1
