40G QSFP+ SR4 for HPE H3C JG325A, 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Optical Transceiver Module
- QSFP+ 40GHPE H3C 40Gigabit Ethernet, coding as HPE H3C JG325A
- 40GBASE-SR4 QSFP+ transceiver module, 40Gbps, multi mode, 850nm, 150m, MTP/MPO connector, Four-channel full-duplex, Hot Pluggable, support DOM
- ProtocolsSATA/SAS3, IEEE 802.3ba,QSFP MSA Compliant
- 3 Warranty- Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- CustomizationFibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

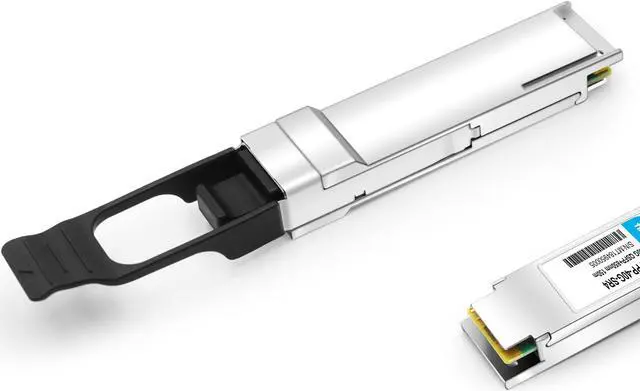

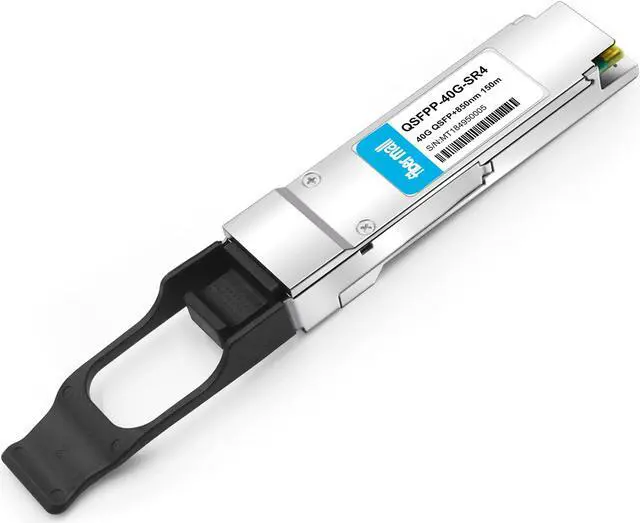

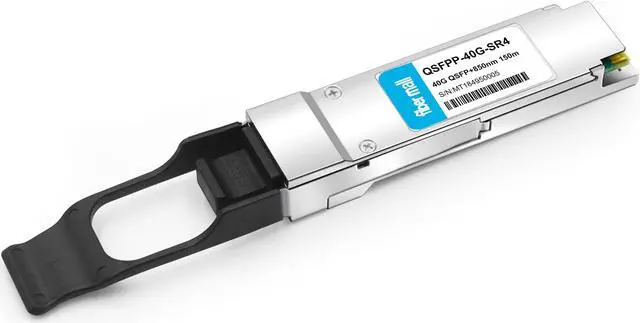

Fiber Mall 40G-QSFP-SR4-H3C is a 40Gb/s QSFP+ Optical transceiver module. It is used in 40gb Ethernet with links up to 150m over OM4 multimode fiber (MMF) at 850nm wavelength via a MTP/MPO connector. Besides, it is compliant with the QSFP+ MSA and IEEE 802.3 ba 40GBASE-SR4 and breakout to 4x10GBASE-SRProduct

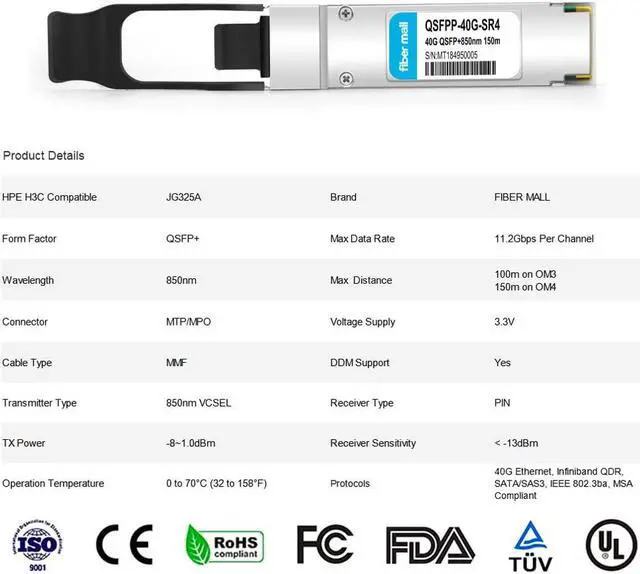

Features HPE H3C Genuine: JG325A
Form Type: QSFP+
Max Data Rate: 40Gbps 4 independent full-duplex channels Up to 11.2G bps per channel bandwidth Aggregate bandwidth of > 40Gbps MTP/MPO optical connector QSFP MSA compliant Digital diagnostic capabilities Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF CML compatible electrical I/O Single + 3.3V power supply operating TX input and RX output CDR retiming Built-in digital diagnostic functions

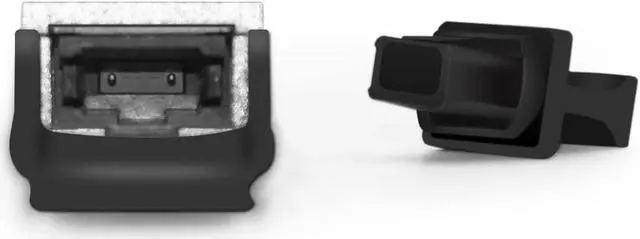

Temperature range: 0°C to 70°C RoHS Compliant Part ApplicationsHPE H3C JG325A Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center Rack to rack Data centers Metro networks Switches and Routers Infiniband 4x SDR, DDR, QDR 40GBASE-SR4 40G Ethernet Breakout to 4 x 10GBASE-SR Ethernet Proprietary interconnectionsPackage1*sfp dust cover1 *pair 40Gbps SR4 fiber transceiver module 1* package box
Features HPE H3C Genuine: JG325A
Form Type: QSFP+
Max Data Rate: 40Gbps 4 independent full-duplex channels Up to 11.2G bps per channel bandwidth Aggregate bandwidth of > 40Gbps MTP/MPO optical connector QSFP MSA compliant Digital diagnostic capabilities Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF CML compatible electrical I/O Single + 3.3V power supply operating TX input and RX output CDR retiming Built-in digital diagnostic functions
Temperature range: 0°C to 70°C RoHS Compliant Part ApplicationsHPE H3C JG325A Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center Rack to rack Data centers Metro networks Switches and Routers Infiniband 4x SDR, DDR, QDR 40GBASE-SR4 40G Ethernet Breakout to 4 x 10GBASE-SR Ethernet Proprietary interconnectionsPackage1*sfp dust cover1 *pair 40Gbps SR4 fiber transceiver module 1* package box
