FEELWORLD FW703 7inch 4K HDMI On Camera Video Field Monitor Ultra Slim IPS Full HD 1920x1200 with Peaking Assist 3g-sdi DSLR External Display

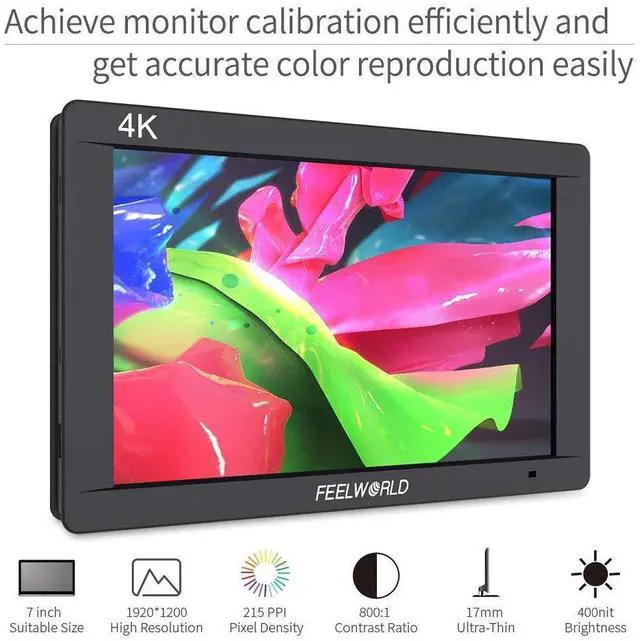

- The Feelworld FW703 supports 4K UHD 3840*2160P with Full HD 1920x1200, High Resolution and impressive 323 PPI. blending individual pixels to the point that the naked eye cant define individual pixels.
- More Auxiliary Functions: FW703 integrated histogram, embedded audio, false color, exposure, check field, nine grid and zoom in professional functions, assist users to accurately exposure and focus when shooting, making and playing movies/ videos.
- High Quality: As the camera operators may shift his/her position relative to the monitor during the shot. FW703 IPS 160°wide viewing angle
- Specially designed to merge portability, and functionality, 22mm thickness 320g the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
- Broadcast quality 3G-SDI, 4K HDMI monitoringuse pro or consumer cameras The compact design of the FW703 includes 3G-SDI and 4K HDMI input/ output, USB Upgrade, 3.5mm Ear P
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: FW703
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m²
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

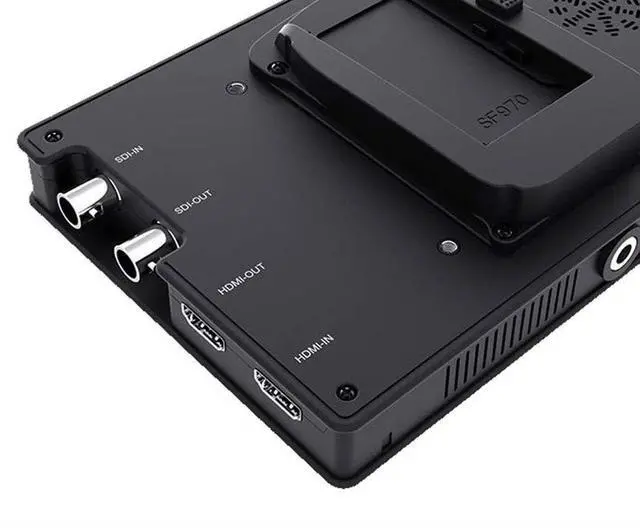

Input
1 X 3G-SDI
1 X HDMI
Output
1 X 3G-SDI
1 X HDMI
Audio
Audio: Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p(60/ 59.94 /50/30/29/25/24/ 23.98 )
1080i(60/ 59.94 /50)
1080p(60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/29/25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
4K UHD 3840×2160p (30/ 29.97 /25/24/ 23.98H z), 4096×2160p (24Hz)
General
Input Voltage: DC 6.524V
Power Consumption: 9W
Working Temperature: -20°C~55°C
Storage Temperature: -30°C~65°C
Install Way: 1/4"-20 Thread Socket (bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
Unit Size: 180Lx120Hx22D (mm)
Unit Weight: 320g/350g (With F970 Battery Plate)
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Ratio marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
* Color Temperature Adjustment
* Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m²
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input
1 X 3G-SDI
1 X HDMI
Output
1 X 3G-SDI
1 X HDMI
Audio
Audio: Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p(60/ 59.94 /50/30/29/25/24/ 23.98 )
1080i(60/ 59.94 /50)
1080p(60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/29/25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF)
4K UHD 3840×2160p (30/ 29.97 /25/24/ 23.98H z), 4096×2160p (24Hz)
General
Input Voltage: DC 6.524V
Power Consumption: 9W
Working Temperature: -20°C~55°C
Storage Temperature: -30°C~65°C
Install Way: 1/4"-20 Thread Socket (bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
Unit Size: 180Lx120Hx22D (mm)
Unit Weight: 320g/350g (With F970 Battery Plate)
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode ( 1.3 x, 2.0 x, 2.0 x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Ratio marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85: 1, 2.35: 1)
* Color Temperature Adjustment
* Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
