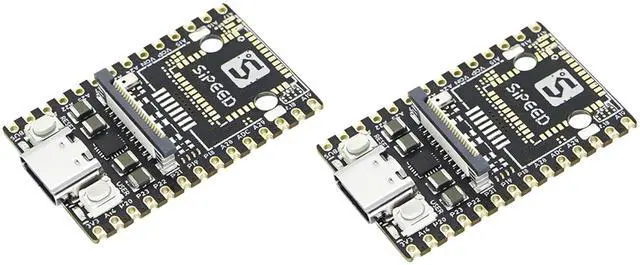

WayPonDEV LicheeRV Nano RISC-V Development Board, WiFi 6 Ethernet AI Vision RISCV Sensor, 1TOPS NPU 1GHz RISC-V C906 CPU, 2Gbit DDR3 RAM 100M RJ45 Port, Support Linux Debian (LicheeRV-Nano-B 2pcs)
- LicheeRV Nano is a mini-sized RISC-V development board, equipped with the SG2002 processor, large core 1GHZ (RISC-V/ARM optional), small core 700MHZ RISC-V, 256MB DDR3 memory, built-in 1Tops NPU, support BF16; 25~300M 8051 low-power core.

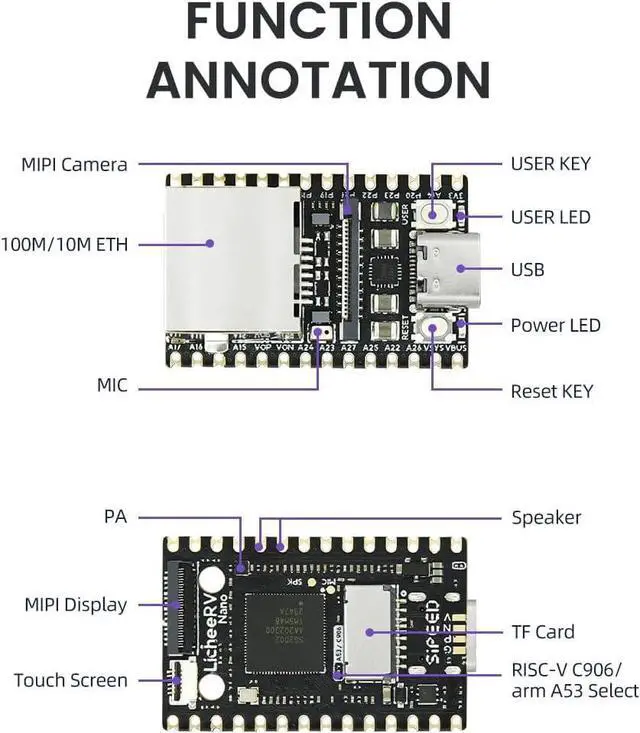

- LicheeRV Nano RISC-V development board has rich interfaces such as MIPI-CSI, MIPI-DSI, SDIO, ETH, USB, SPI, UART, I2C, etc., which can be expanded to a variety of applications. Support TF card / SD NAND two-choice boot (SD NAND pad is under the TF card slot).
- LicheeRV Nano RISC-V Single Board Computer Onboard video interface: Video output: 2 lane MIPI DSI output, standard 31pin interface, support 6pin capacitive touch screen. Video input: 4 lane MIPI CSI input, 22Pin interface, supports split dual-channel CSI.
- LicheeRV Nano RISC-V Single Board Computer onboard audio interface: Audio output: Onboard PA amplifier, can directly connect speakers within 1W on the pin header. Audio input: Onboard analog silicon microphone, can directly re
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
--Tips--

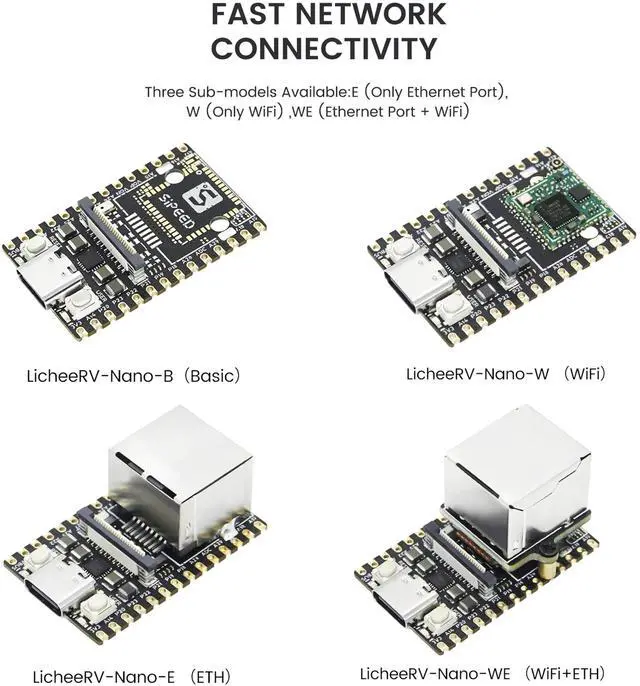

Standard Version (B): No network accessories
Network Port Version (E): Onboard 100M network port
WiFi Version (W): Onboard WiFi6/BT 5.2 module, BT 5.2 function is not enabled by default. If you need to use the Bluetooth function, you need to paste 4 0201 resistors here or use a 2B pencil to fill in the short circuit
WiFi Network Port Version (WE): Onboard WiFi6/BT 5.2 module, and a network port board is provided, which is connected to the development board through copper pillars and flat cables
Note: 70415 and above versions can use 0402*4 resistors for short circuit

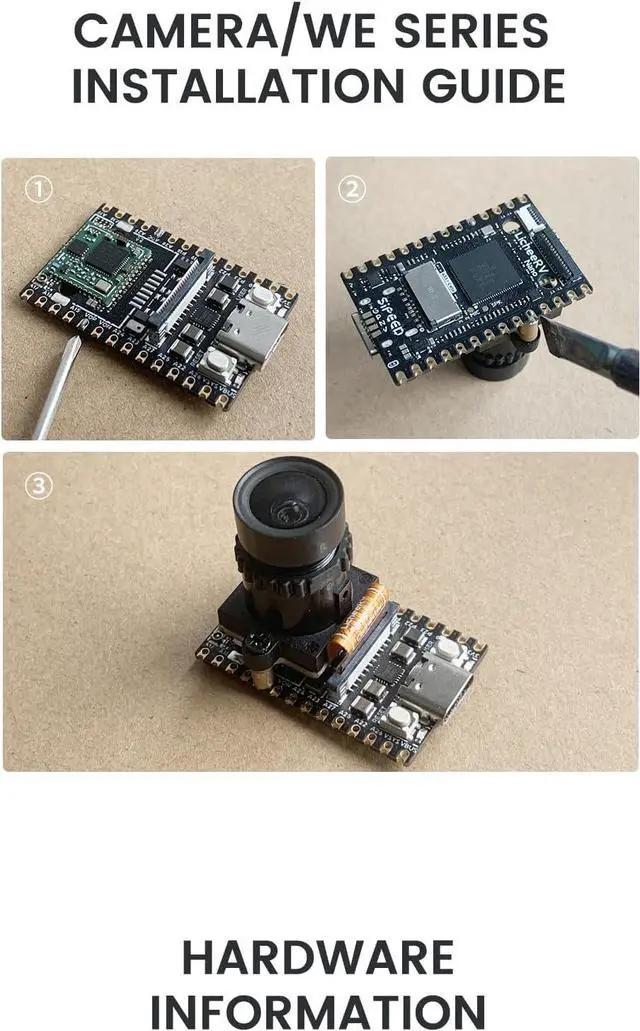

The camera module (GC4653) features non-short-circuiting screw holes on both sides for secure mounting. It is recommended to fix the standoffs to the fifth pad for optimal stability.
-Specification-
CPU Arithmetic SG2002;
Large core: 1GHz RISC-V C906 / ARM A53;
Small core: 700MHz RISC-V C906;
Low-power core: 25-300M 8051
NPU: 1TOPS INT8, support BF16
Memory: Internal 2Gbit (256MByte) DDR3
Memory: TF card / SD NAND dual boot (SD NAND pad under TF card slot)
Video Output Video Output: 2 lane MIPI DSI output, standard 31pin connector, supports 6pin capacitive touchscreen
Video Input: 4 lane MIPI CSI input, 22pin connector, support split dual-lane CSI
Audio Interface: Audio
Output: On-board PA amplifier, can be directly connected to speakers up to 1W on the row of pins.
Audio input: onboard analog silicon microphone, can be directly connected to the radio
Wired connection E suffix version: support for 100G RJ45 connector
Wireless connection W suffix version: support 2.4G / 5.8G dual-band WiFi6 + BLE 5.4
USB: 1 x USB 2.0 OTG Type-C
IO Interface: 2 x 14pin 2.54 pin connector, 800mil pitch, breadboardable
Buttons 1 x RST button + 1 x BOOT button
Indicators: 1 x Power LED, 1 x User LED
OS: Buildroot Linux / Debian
Dimension: 22.86 * 35.56 mm
Standard Version (B): No network accessories
Network Port Version (E): Onboard 100M network port
WiFi Version (W): Onboard WiFi6/BT 5.2 module, BT 5.2 function is not enabled by default. If you need to use the Bluetooth function, you need to paste 4 0201 resistors here or use a 2B pencil to fill in the short circuit
WiFi Network Port Version (WE): Onboard WiFi6/BT 5.2 module, and a network port board is provided, which is connected to the development board through copper pillars and flat cables
Note: 70415 and above versions can use 0402*4 resistors for short circuit
The camera module (GC4653) features non-short-circuiting screw holes on both sides for secure mounting. It is recommended to fix the standoffs to the fifth pad for optimal stability.
-Specification-
CPU Arithmetic SG2002;
Large core: 1GHz RISC-V C906 / ARM A53;
Small core: 700MHz RISC-V C906;
Low-power core: 25-300M 8051
NPU: 1TOPS INT8, support BF16
Memory: Internal 2Gbit (256MByte) DDR3
Memory: TF card / SD NAND dual boot (SD NAND pad under TF card slot)
Video Output Video Output: 2 lane MIPI DSI output, standard 31pin connector, supports 6pin capacitive touchscreen
Video Input: 4 lane MIPI CSI input, 22pin connector, support split dual-lane CSI
Audio Interface: Audio
Output: On-board PA amplifier, can be directly connected to speakers up to 1W on the row of pins.
Audio input: onboard analog silicon microphone, can be directly connected to the radio
Wired connection E suffix version: support for 100G RJ45 connector
Wireless connection W suffix version: support 2.4G / 5.8G dual-band WiFi6 + BLE 5.4
USB: 1 x USB 2.0 OTG Type-C
IO Interface: 2 x 14pin 2.54 pin connector, 800mil pitch, breadboardable
Buttons 1 x RST button + 1 x BOOT button
Indicators: 1 x Power LED, 1 x User LED
OS: Buildroot Linux / Debian
Dimension: 22.86 * 35.56 mm
