CCTV Joystick Keyboard Controller LCD Display 4D Joystick RS485 Controller for CCTV AHD CVBS Analog PTZ Speed Dome Camera Control

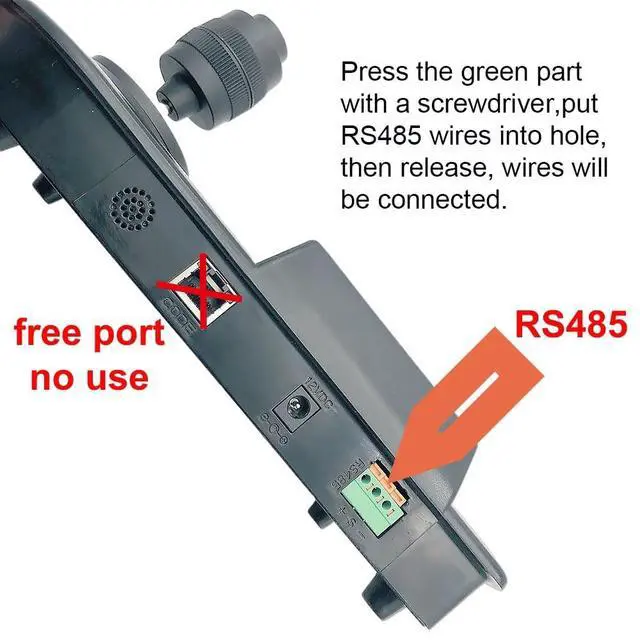

- Warning: This control keyboard can only control analog PTZ cameras (or analog DVRs)/AHD PTZ cameras (or AHD DVRs) with RS485 communication ports. It cannot control network cameras through the RJ45 port, which is a blank port and has no communication function.
- Security CCTV System Multi-function Controlling Keyboard, RS-485; The keyboard controller is designed to control and operate analog and AHD high speed dome camera and digital recorder, it has built-in multi-protocols, such as PELCO-D, PELCO-P and so on, as well as digital video recorder control protocols , the keyboard controller adopts RS-485 communication port, multi-baud rates are available.
- Built-in a variety of intelligent cameras, DVR control protocol, 5 commonly used control protocol for choice; Keyboard with password management, the need to enter password to operate; LCD display monitor number, camera number, recorder number and operating status.
- Four-dimensional vector variable speed controller with a unique cont
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

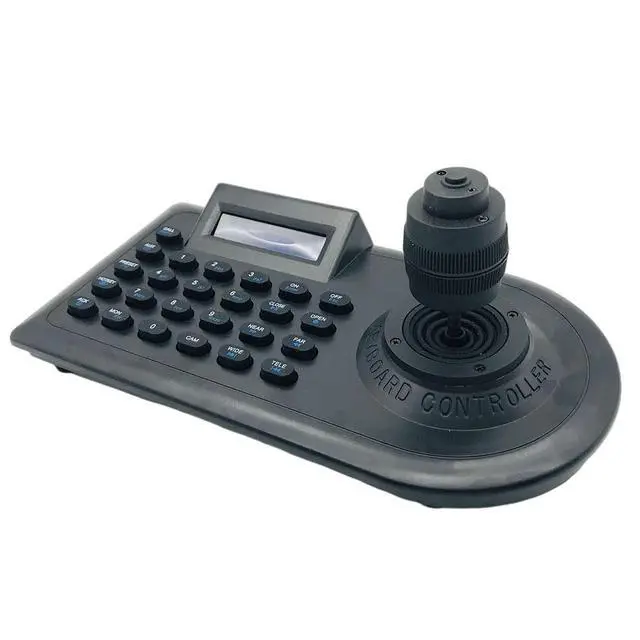

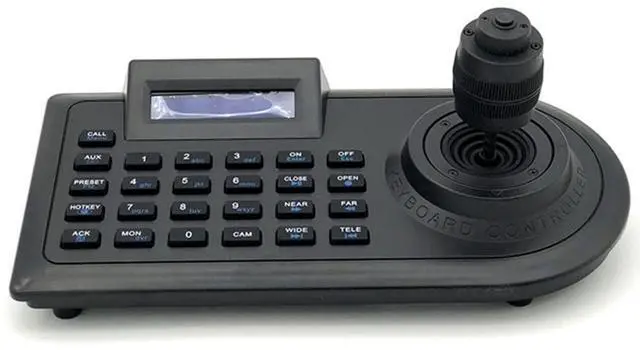

Security CCTV System Multi-function Controlling Keyboard, RS-485 The keyboard controller is designed to control and operate analog and AHD high speed dome camera and digital recorder, it has built-in multi-protocols, such as PELCO-D, PELCO-P and so on, as well as digital video recorder control protocols, the keyboard controller adopts RS-485 communication port, multi-baud rates are available. The keyboard controller can control and operate the cradle head, lens, presets, tour, trace scanning and menu setting, the unique one-bar control could flexibly control the action of cradle head and lens.
The keyboard controller can control the operation of multi-picture monitoring, video recording, playing, play forward, play backward, information display and menu setting. Built-in a variety of intelligent cameras, DVR control protocol, 5 commonly used control protocol for choice. Keyboard with password management, the need to enter password to operate. LCD display monitor number, camera number, recorder number and operating status. Four-dimensional vector variable speed controller with a unique control capabilities, flexible control over the full range of motion and control PTZ camera focus, zoom and aperture.
Has set up a smart camera, DVR menu functions. With fast set, called the smart camera Presets, queues and other functions. control of DVR with multi-screen monitoring, recording, playback, fast forward, rewind and other functions. key tone, backlit LCD screen can be set via the keyboard menu. Communication using RS-485 half-duplex mode, the keyboard can be connected to control 16 to 32 intelligent camera or digital video recorder, control distance of 1, 500 meters.
Dimension: 255 (W) x150 (H) x120 (D) mm / 10.03 '' x 5.9 '' x 4.72 ''
Weight: 0.9K / 1.98 pounds Item
Package includes: 1 x CCTV System Multi-function Controlling Keyboard 1 x DC12V Power adapter (US power plug ) 1 x English Manual
The keyboard controller can control the operation of multi-picture monitoring, video recording, playing, play forward, play backward, information display and menu setting. Built-in a variety of intelligent cameras, DVR control protocol, 5 commonly used control protocol for choice. Keyboard with password management, the need to enter password to operate. LCD display monitor number, camera number, recorder number and operating status. Four-dimensional vector variable speed controller with a unique control capabilities, flexible control over the full range of motion and control PTZ camera focus, zoom and aperture.
Has set up a smart camera, DVR menu functions. With fast set, called the smart camera Presets, queues and other functions. control of DVR with multi-screen monitoring, recording, playback, fast forward, rewind and other functions. key tone, backlit LCD screen can be set via the keyboard menu. Communication using RS-485 half-duplex mode, the keyboard can be connected to control 16 to 32 intelligent camera or digital video recorder, control distance of 1, 500 meters.
Dimension: 255 (W) x150 (H) x120 (D) mm / 10.03 '' x 5.9 '' x 4.72 ''
Weight: 0.9K / 1.98 pounds Item
Package includes: 1 x CCTV System Multi-function Controlling Keyboard 1 x DC12V Power adapter (US power plug ) 1 x English Manual
