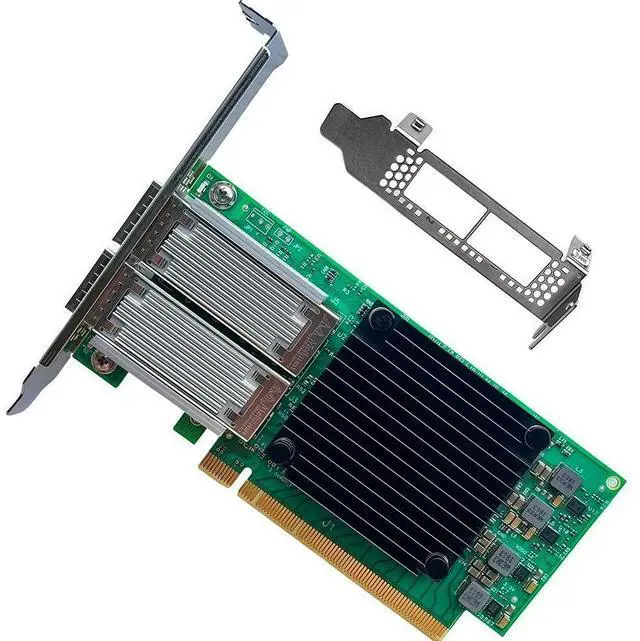

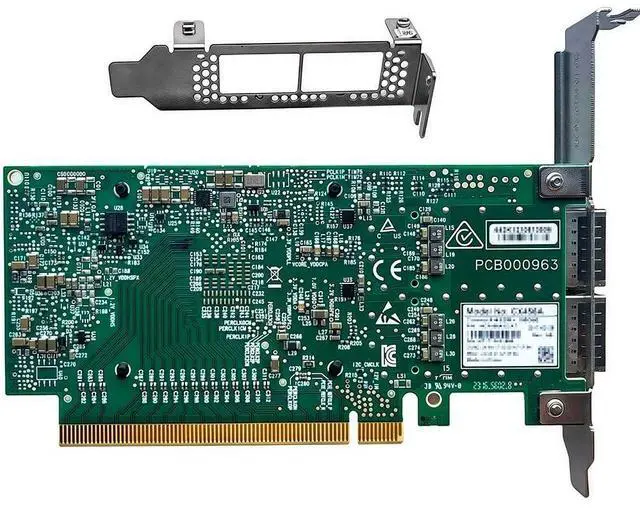

100GbE QSFP28 Network Card Compatible with MCX456A-ECAT PCIe Ethernet Card with ConnectX-4 Controller, 2 Ports QSFP28, PCIe 3.0, VPI 100GbE/EDR, SR-IOV RoCE RDMA, VXLAN/NVGRE, PXE, PCI Network Adapter
- Ports: 2 QSFP28 100GbE/EDR (VPIEthernet or InfiniBand) (Port notes: QSFP28 optics/DAC/AOC required; supports SR4/LR4; not RJ45)
- Compatible with: MCX456A-ECAT; Controller: NVIDIA Mellanox ConnectX-4 (MT27700 family)
- Interface: PCIe 3.0 x16; Brackets: Full-Height included; Low-Profile optional; Boot: PXE (iSCSI via OS initiator)
- Features: VPI 100GbE/EDR, RDMA & RoCEv2, SR-IOV virtualization, NVGRE/VXLAN offloads, MSI-X/RSS, jumbo frames, GPUDirect support
- PERFECT FOR: AI/HPC clusters, NVMe-oF storage, virtualization clouds (KVM/ESXi/Proxmox), low-latency 100G leaf-spine networks
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MCX456A-ECAT is a dual-port QSFP28 VPI adapter based on the NVIDIA Mellanox ConnectX-4 controller, delivering up to 100 Gb/s per port for either Ethernet or EDR InfiniBand. With PCIe 3.0 x16 bandwidth, the card accelerates RDMA/RoCEv2, SR-IOV, and overlay networks (NVGRE/VXLAN), reducing CPU load and latency in HPC, storage, and cloud environments. Typical deployments include NVMe-oF, AI training clusters, and 100G leaf-spine fabrics. The QSFP28 interfaces accept DAC/AOC cables and SR4/LR4 optics (not RJ45). Works in systems with a full-height bracket (low-profile optional). Also referred to as a PCI network adapter by users (PCIe interface).
Standards alignment includes IEEE 802.3 ba/ 802.3 bm for 100GbE and IBTA 1.3 for EDR InfiniBand.
Standards alignment includes IEEE 802.3 ba/ 802.3 bm for 100GbE and IBTA 1.3 for EDR InfiniBand.
