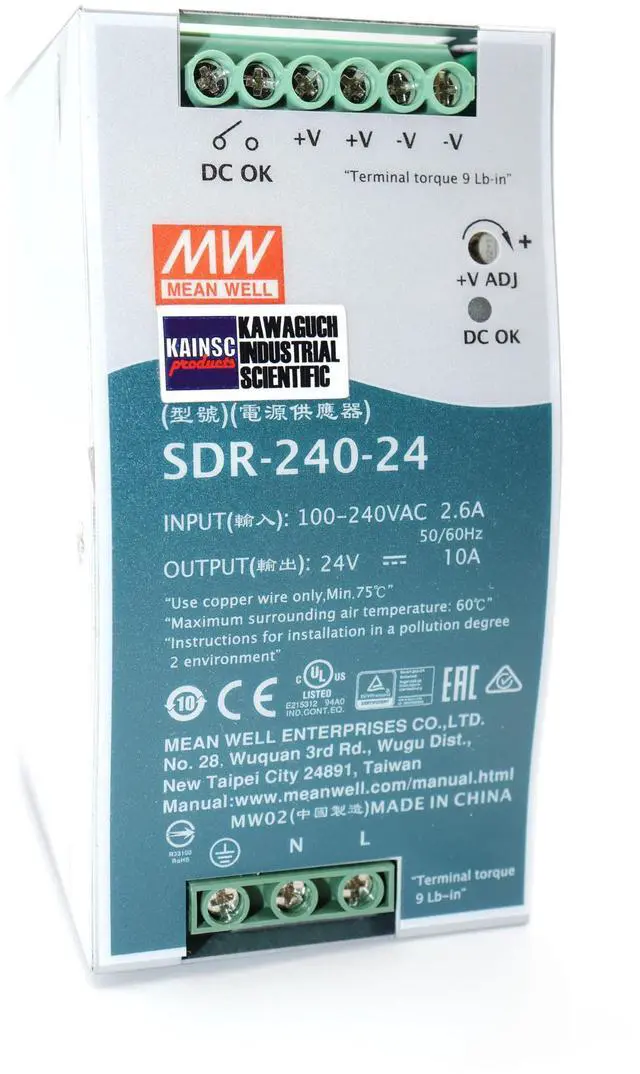

Mean Well SDR-240-24 240W 10A 24VDC Single Output High Efficiency DIN Rail Power Supply with PFC Function Provided by KAINSC Products
- Output Voltage: 24V; Rated Current & Rated Power: 10A, 240W
- UL and CE Certificated; Input Voltage : 88 ~ 264VAC / 124 ~ 370 VDC
- Protections: Short circuit / Overload / Over Voltage / Over Temperature
- High Operating Temperature up to 70; Ripple & Noise (max.): 200mVp-p (measured at 20MHBuild-in active PFC function, PF>0.93; Ripple & Noise (max.): 50mVp-p; Setup, Rise Time: 650ms, 60ms/230VAC & 1300ms, 60ms/115VAC at full load (measured at 20MHz of bandwidth by using 12 twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)z of bandwidth by using 12 twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
- High Efficiency 94% and Low power dissipation; UL 508 (Industrial Control Equipment) approved
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SDR-240-24 AC to DC power supply from MEAN WELL converts an alternating current source to a direct current supply. It has a voltage of 24 V and maximum output power of 240 W. This part's single output can handle a current up to 10 A. This part has a temperature range of -25 C to 70 C.
EU RoHS: CompliantPCB
changed:

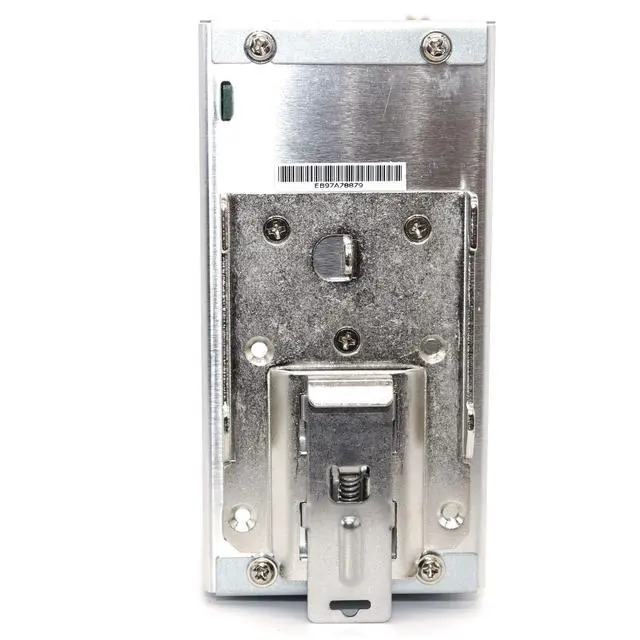

9Mounting: DIN
RailPackage Height: 125.2 mmPackage
Width: 113.5 mmPackage
Length:
63mmType:
RegulatedStyle: DIN
RailInput/Output Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 24Output
Current (A): 10Output
Power (W): 240Minimum AC
Input Voltage (V): 88Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 124Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %Load
Regulation: 1%Maximum
Input Current (A): 2.6 (Typ)
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 94 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: NoRipple
& Noise: 100mV (Max)
Medical: NoMinimum
Operating Temperature (C): -25Maximum
Operating Temperature (C): 70Product
Weight (g): 1030Pin
Count: 9
EU RoHS: CompliantPCB
changed:
9Mounting: DIN
RailPackage Height: 125.2 mmPackage
Width: 113.5 mmPackage
Length:
63mmType:
RegulatedStyle: DIN
RailInput/Output Type: AC/DCNumber of
Outputs: 1Output
Type: FixedOutput
Voltage (V): 24Output
Current (A): 10Output
Power (W): 240Minimum AC
Input Voltage (V): 88Maximum AC
Input Voltage (V): 264Minimum DC
Input Voltage (V): 124Maximum DC
Input Voltage (V): 370Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %Load
Regulation: 1%Maximum
Input Current (A): 2.6 (Typ)
Input Frequency (Hz): 47
to 63Tolerance (%): 1Efficiency
(%): 94 (Typ)
Configurable: NoInput
Connector Type: Screw Terminal BlockOutput
Connector Type: Screw
Terminal BlockPower Indicator: NoRipple
& Noise: 100mV (Max)
Medical: NoMinimum
Operating Temperature (C): -25Maximum
Operating Temperature (C): 70Product
Weight (g): 1030Pin
Count: 9
