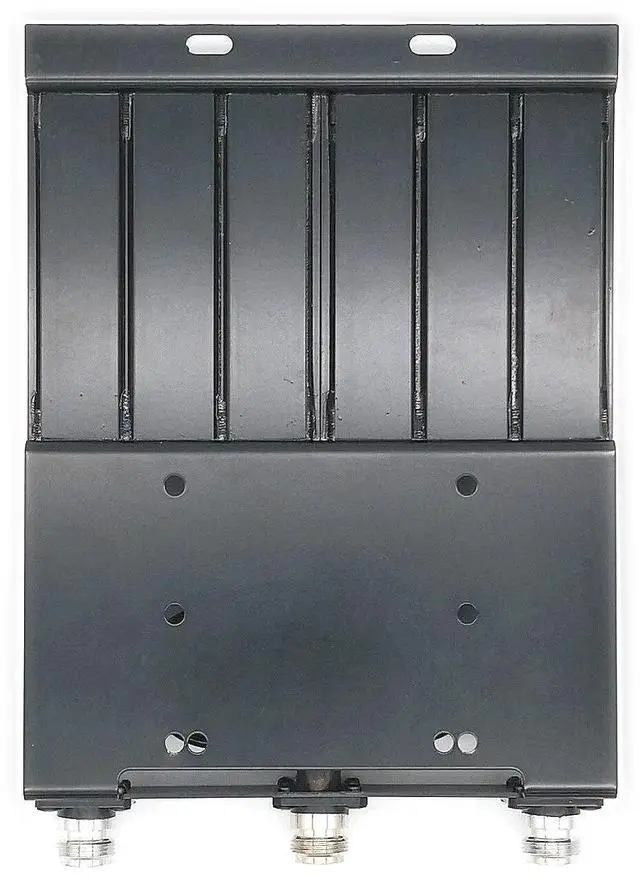

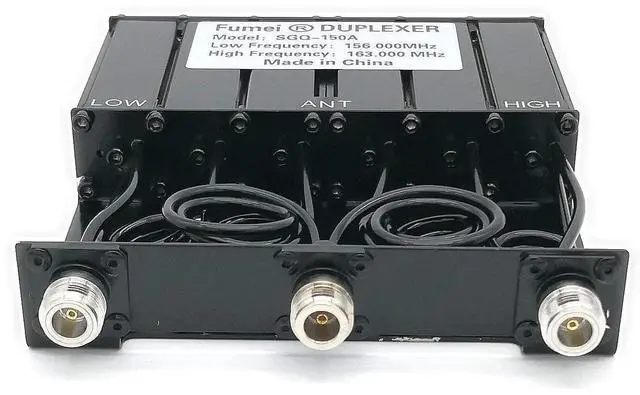

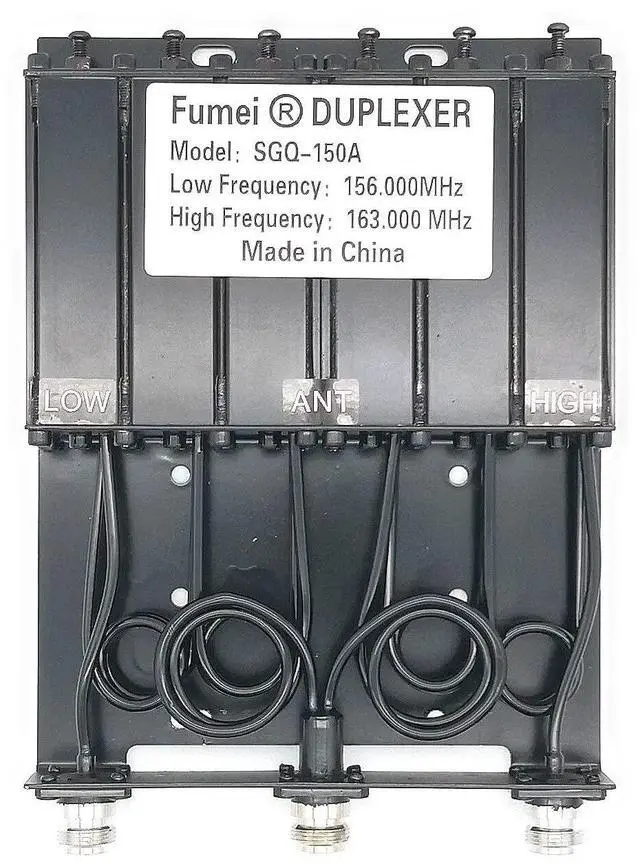

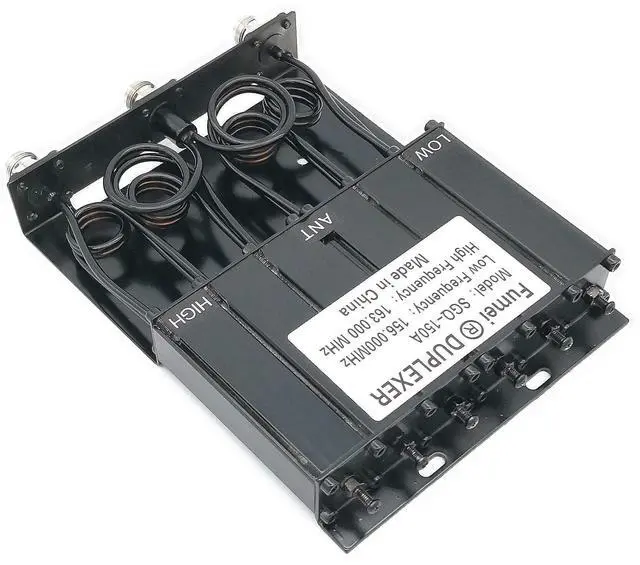

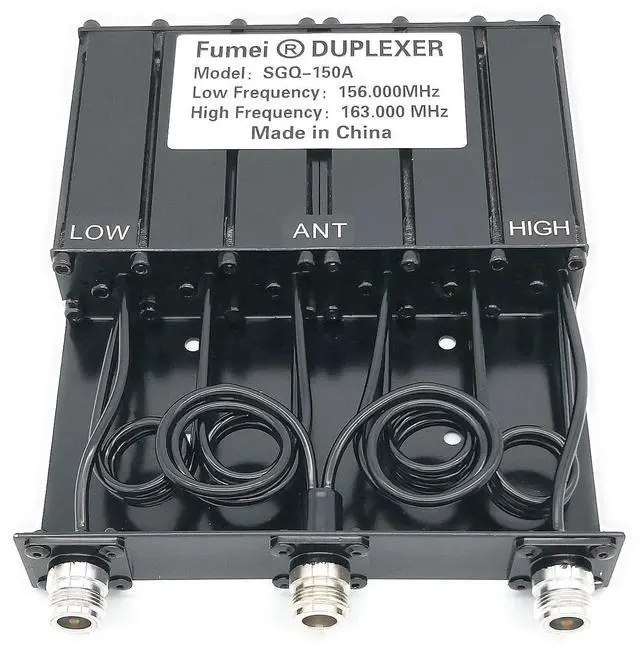

Fumei VHF 136-174MHz 30W Duplexer for Radio Repeater with Pre-Tuned Low Frequency 156MHz & High Frequency 163MHz & N Female connectors
- This item has been set by factory with low frequency 156MHz, high frequency 163MHz and N female connector type, it is easy to build your repeater.
- It is tunable between 136-174MHz, you can turn it by yourself when you have the tools.
- Contact us before order it if you want other frequency setting or connector type.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: Max powerInput: 30WFrequency
Range: 136-174MHzIsolation
Loss: <1dBV.S.W.R:
<1.3Isolation: > 80dBSuppression:
>80dBImpedance: 50Operating
temperature: -25-+55Packages
includes: 1 x duplexerHow to tune the frequency: 1. Prepare the tools inc. three-port network analyzer, dummy load with N male connector, 2 x RF cable from duplexer to the network analyzer, slotted screwdriver and spanner. 2. Power on your network analyzer, according the guidance on frequency network, using it to monitor the frequency, adjust the six screw poles with on duplexer slotted screwdriver to the frequency you want.
