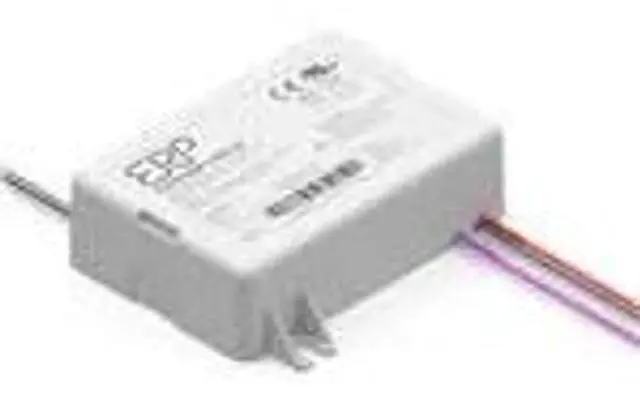

ERP Power ESP040W-0700-56 CC LED Power Supply 120-277 Vac, 87% eff., Rectangular Plastic Case, Forward/Reverse Phase & 0-10V dimming, 1-100% dim Range, 39.2 W max, 700 mA Iout, 40-56 Vout

Constant Current Led Driver 39.2W Max Power This Device Provides A Regulated Constant Current Output Specifically Designed To Power Led Light Engines. While 040W Is In The Model Number, The Actual Maximum Continuous Output Power Is 39.2 Watts. Output

Specifications

700 Ma, 28-56 Vdc The Driver Delivers A Fixed Output Current Of 700 Ma 0.7 Amperes. The Output Voltage Range For This Current Is From 28 Vdc To 56 Vdc, Accommodating Various Led Loads With A Combined Forward Voltage Within This Range. Universal Input With Active Pfc And High Efficiency It Accepts A Wide Universal Ac Input Voltage Range From 90 Vac To 305 Vac At 50 60 Hz.

It Features Active Power Factor Correction Pfc, Ensuring A High Power Factor > 0.9 And Low Total Harmonic Distortion Thd <20%, Which Complies With Energy Efficiency Standards. It Typically Boasts A High Efficiency Of Up To 87%. 0-10V Dimming Capabilities The Esp040W-0700-56 Supports 0-10V Dimming, Allowing For Smooth And Flicker-Free Light Output Control Down To A Very Low Level Often 1% Or Less Of Full Output. This Makes It Compatible With Common Lighting Control Systems.
