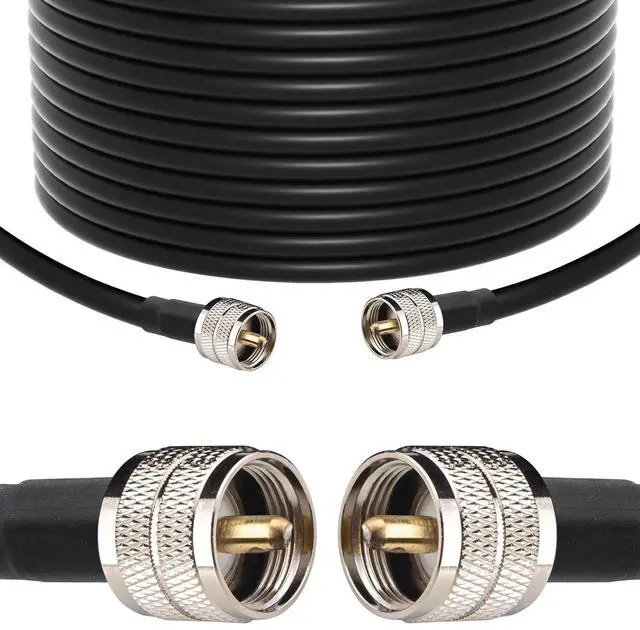

YOTENKO PL259 RG213 Coaxial Cable 100FT CB Coax Cable Ultra Low Loss RG-213 UHF PL259 Coax Cable Male to Male, 50 Ohm, for Ham Radio CB Radio Antenna

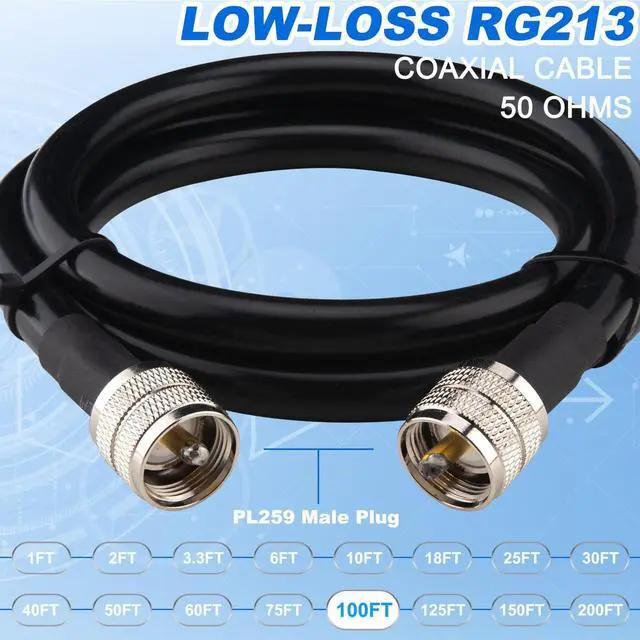

- Type- RG213 coaxial cable w/PL-259 connectors, Cable Length: 100 feet(30.5m), Impedance: 50-ohm, Protection: Heat-shrink tubing on both ends to keep out contaminants.

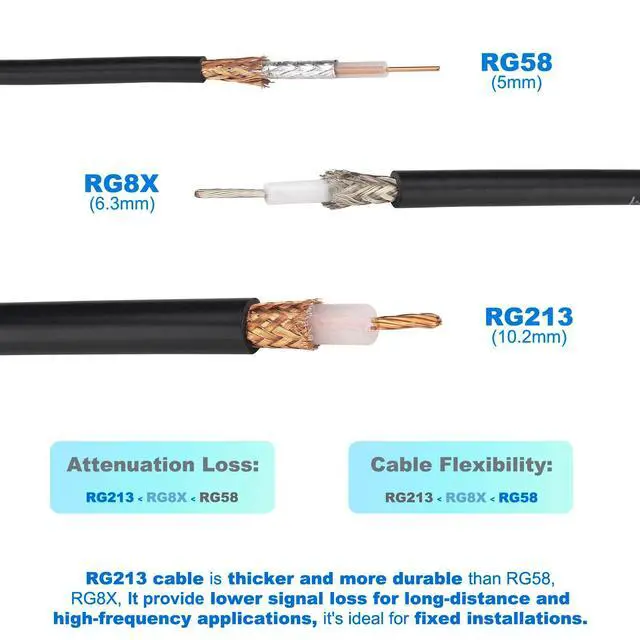

- Ultra-Low Loss- RG213/U cable has much lower loss than common thinner cables like RG58/RG8X. It only loses 4.42dB per 100 feet at 400MHz, with a VSWR of 1.25 or less, making it ideal for long-distance and high-power RF signal transmission or reducing loss.
- Outstanding Transmission Properties- RG213 coax offers great transmission features, including a stable 50-ohm impedance and a low capacitance of 31.7 pf/ft, ensuring signal integrity and speed.

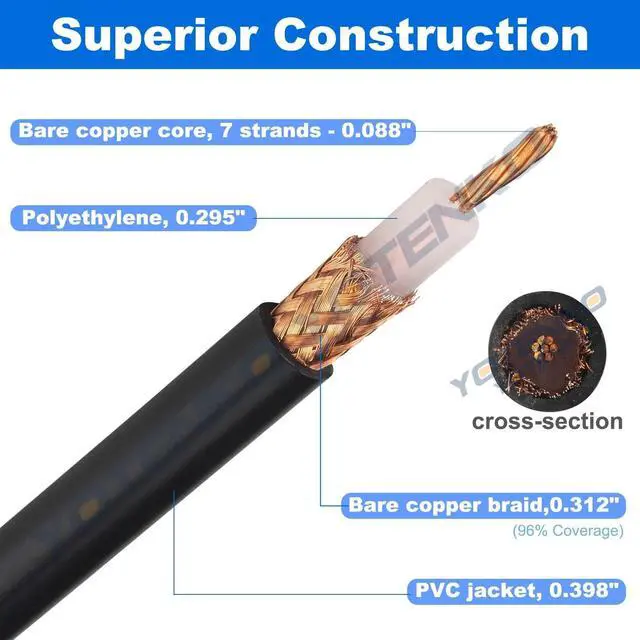

- Durable Construction-Built tough, RG213 PL259 cable has a 7-strand bare copper inner conductor, polyethylene insulation, a bare copper braid shield and a protective outer layer of PVC. The 96% coverage copper braid provides excellent EMI shielding. It's reliable in outdoor or harsh conditions and can handle daily wear and tear for long-lasting performance.
- Application
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
When setting up RG213 cables, steer clear of any unnecessary tugging or bending. Make sure the PL259 connectors are screwed on tight, but be careful not to overdo it, as that could cause damage. Regularly check the physical condition of the cables and the stability of the connectors.
Main Electrical properties:
Impedance: 502OhmRated
Capacitance: 104 pf/m ( 31.7 pf/ft)Operating frequency:
1~2000MHzVSWR: 1.25
MaxVelocity Factor Percentage: 66%Loss Per ft.
at 400 MHz: 0.442 dBLoss Per ft.
at 900 MHz: 0.080 dBLoss Per ft.
at 1800 MHz: 0.123 dBLoss Per ft.
at 2500 MHz: 0.154 dBCoaxial
Cable Type: RG-213Cable
Connector End 1: PL-259Cable
Connector End 2: PL-259Mechanical
Construction: Center
Conductor Material: Bare copperCenter
Conductor Construction: 7 strands - 0.0295 in( 0.75 mm)( 2.250. 02mm) = 0.0878 inDielectric
Material: PolyethyleneDielectric
Outside Diameter: 0.295 inShield 1
Construction: BraidedShield 1
Material: Bare copper 7.930. 15mm = 0.30630. 01in 24*9/ 0.15 mmShield 1
Percent Coverage:
96-97Jacket: PVC Black( 10.100. 20mm) = 0.38980.
016inEngineering data: Maximum
Pull Tension: 56
IbsMinimum bending radius: 102mmOperating
temperature:
-20~+70CUV-Resistant: YesDirect
Bury: Yes
Main Electrical properties:
Impedance: 502OhmRated
Capacitance: 104 pf/m ( 31.7 pf/ft)Operating frequency:
1~2000MHzVSWR: 1.25
MaxVelocity Factor Percentage: 66%Loss Per ft.
at 400 MHz: 0.442 dBLoss Per ft.
at 900 MHz: 0.080 dBLoss Per ft.
at 1800 MHz: 0.123 dBLoss Per ft.
at 2500 MHz: 0.154 dBCoaxial
Cable Type: RG-213Cable
Connector End 1: PL-259Cable
Connector End 2: PL-259Mechanical
Construction: Center
Conductor Material: Bare copperCenter
Conductor Construction: 7 strands - 0.0295 in( 0.75 mm)( 2.250. 02mm) = 0.0878 inDielectric
Material: PolyethyleneDielectric
Outside Diameter: 0.295 inShield 1
Construction: BraidedShield 1
Material: Bare copper 7.930. 15mm = 0.30630. 01in 24*9/ 0.15 mmShield 1
Percent Coverage:
96-97Jacket: PVC Black( 10.100. 20mm) = 0.38980.
016inEngineering data: Maximum
Pull Tension: 56
IbsMinimum bending radius: 102mmOperating
temperature:
-20~+70CUV-Resistant: YesDirect
Bury: Yes
