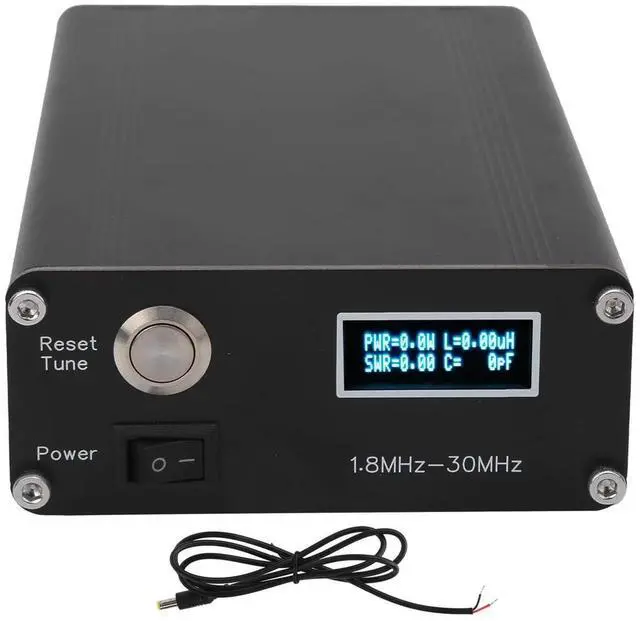

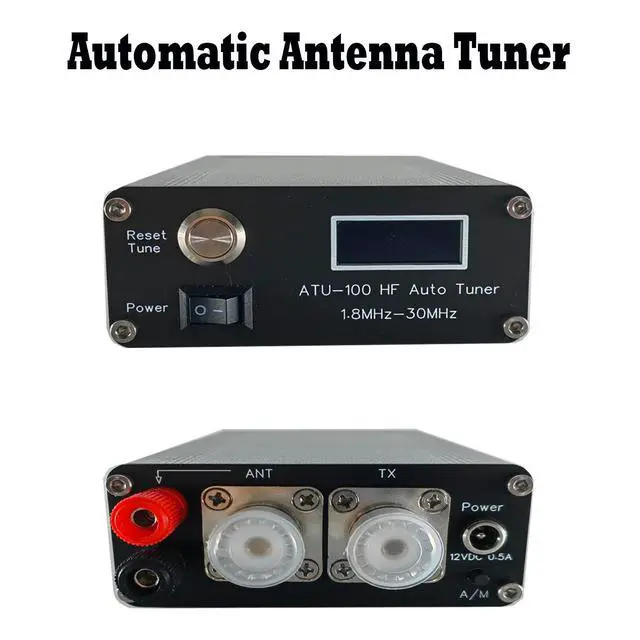

ATU-100 EXT Automatic Antenna Tuner 1.8-55MHz for Ham Radio, WOOKLEA V3.2 ATU 100 Tuner with OLED Display, Low SWR Fast Tuning, Portable Antenna Tuner Kit for POTA SOTA DX

Specification: Allowable
power supply voltage range: 10-15VDC
Maximum current consumption: 400
mAMaximum working power: 100WMaximum
possible measured power: 150WMinimum power required to start tuning: 5WMinimum
possible measured power: 0.1WM easurement resolution of power up to 10W: 0.1WM easurement resolution with power greater than 10W: 1WPower
measurement accuracy error: 10%Maximum

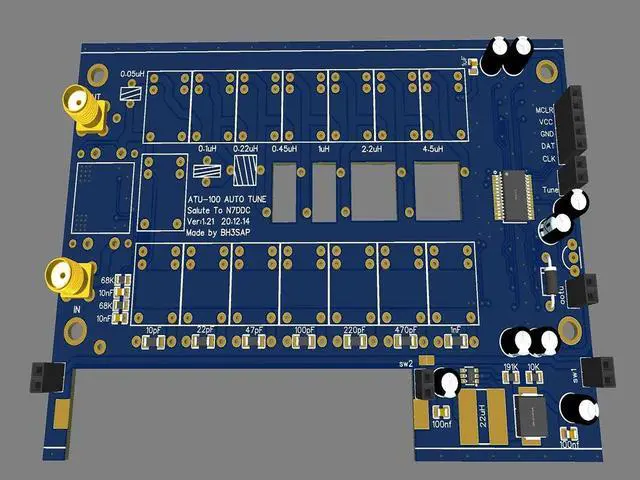

installed inductance: 8.53H inductanceMinimum
installation step: 0.05HM
aximum installed capacity: 1869 pFMinimum capacitance
installation steps: 10
pFTypical consumption100-200 mANote: In order to protect the environment and save energy, the screen will enter the sleep mode after 10 seconds of inactivity and no emission. At present, the optional functions include 1-5w startup, 10-second screen self-extinguishment/constant light, full automatic/manual mode, etc. This product is started tuning by 1w by default, the screen is always on, and the manual/automatic mode is switched. Manual and automatic mode operation method: Manual mode, that is, press and hold the RESET/TUNE key before the relay can be adjusted. Full-automatic mode, that is, without pressing the key, the system automatically starts to adjust when it detects that the standing wave ratio is greater than 1.3: 1 (this value can be adjusted). The parameters used by the product are the main parameters tested by the developer during the software development process, ensuring the reliability of the equipment operation and use in the basic version. Many parameters can be changed by themselves, but they need to be changed carefully to prevent the equipment from being unavailable.
