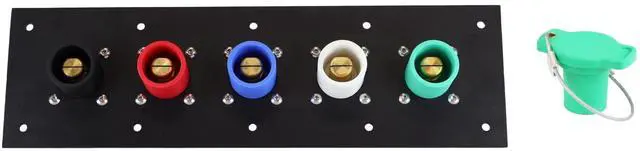

Main image of Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

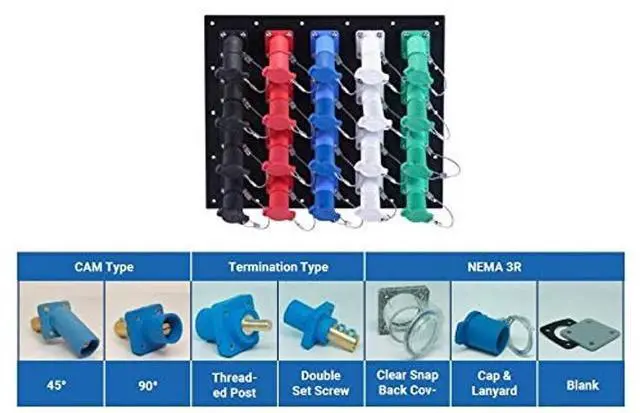

Alt view image 2 of 5 - Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

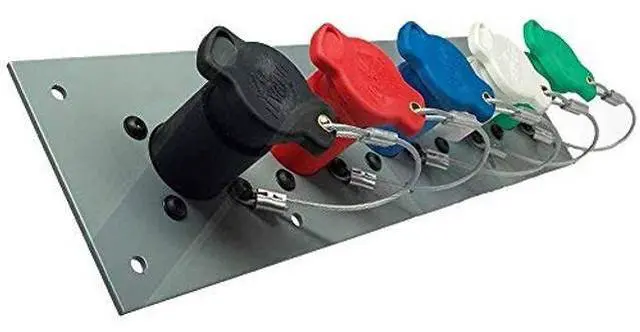

Alt view image 3 of 5 - Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

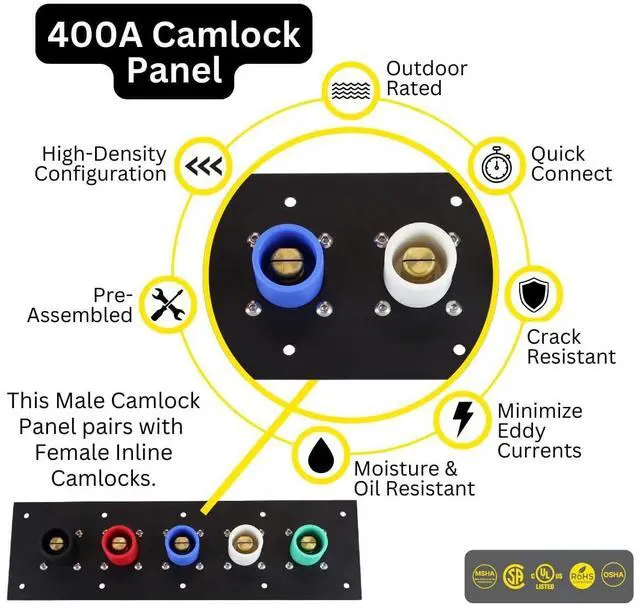

Alt view image 4 of 5 - Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

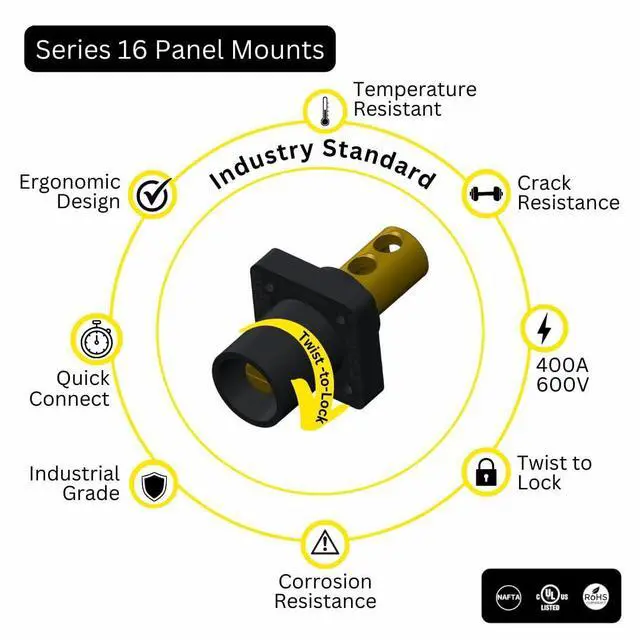

Alt view image 5 of 5 - Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

Shop All Avantalk Products | Visit Aptly Tech Store

Power Assemblies 5 Position CAM Lock Panel, 400 Amp, 3 Phase 120/208V, Male, 90, Double Set-Screw Connections with NEMA 3R Caps and Lanyards, Series 16 CAM Connectors, Power Distribution Panel

CAM Panels are shipped pre-assembled, reducing labor time and costs for installation - no more cutting individual holes for panel-mounted CAMs
High density configuration allows more connections per square foot
Standard panel configurations offered to meet most temporary power applications
1/8" powder coated aluminum is non-ferrous and minimizes eddy currents
Use Series 16 CAM connections to distribute power. Each row of CAMs allows the distribution of 400 amps of power.

Overview

Specs

Reviews

CAM Panels are power distribution panels utilizing industry-standard series 16 CAM connections. They are installed onto machinery, equipment, or part of a facility to allow faster power connections using the CAM connectors. CAM panels are shipped pre-assembled reducing labor time and costs for installation with high density configurations, which allows more connections per sq. /ft. Standard panel configurations available to meet most generator connections and other temporary portable power applications. Panel construction is comprised of 1/8 inches powder coated aluminum and non-ferrous which minimizes eddy currents.

Specifications

:
Amperage:
400Positions: 5CAM
Type:
MaleVoltage: 3 Phase 120/208
VoltCAM Angle: 90
DegreeTermination Type: Double Set-Screw Connection (UL Listed, Type 3R and 4)NEMA 3R
Cap: Santoprene TPV Protective Caps and Lanyards (Type 3R and 4) **PLEASE
NOTE: The Pictures shown are for illustration purposes only. Actual product may vary based on the specification selected.
