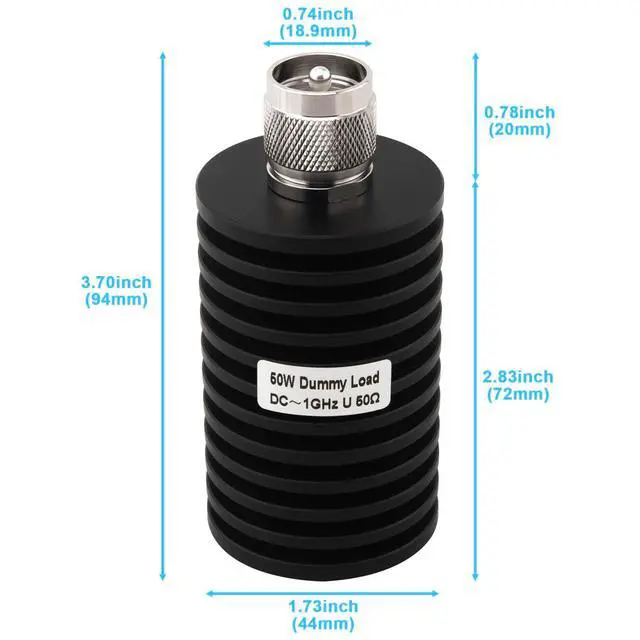

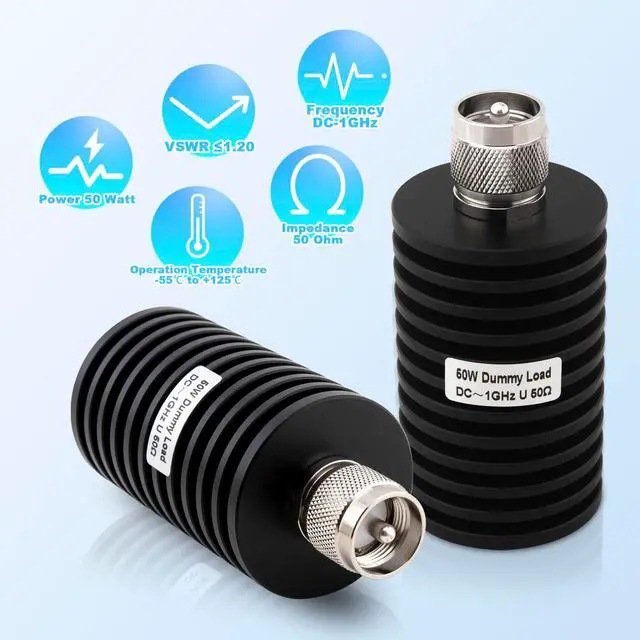

YOTENKO 50W 50 Ohm Dummy Load PL259, DC-1GHz, UHF Male Connector RF Termination Load for Broadcast/Industrial/Military
- Power: 50Watt
- Impedance: 50 Ohm
- Frequency: DC-1GHz
- VSWR: 1.20

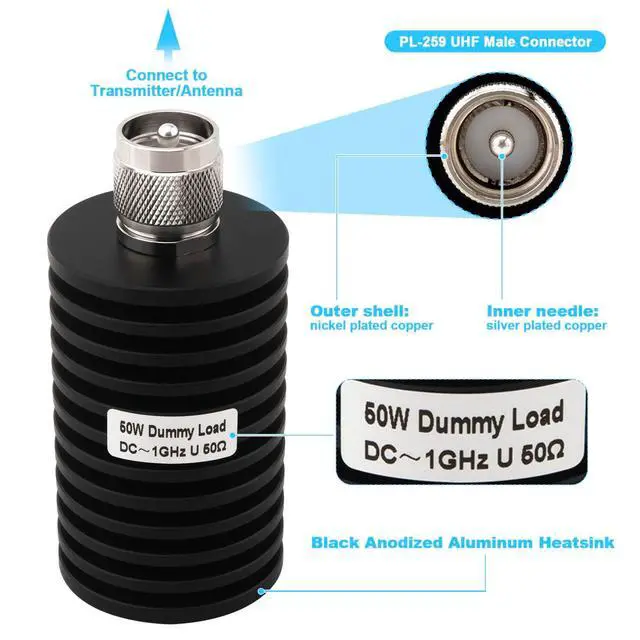

- RF Connector: UHF-Male PL259 Connector
- Operation Temperature: -55 to +125
- 50W High-Power Absorption- Handles 50W continuous power to protect transmitters/amplifiers from reflections in industrial RF heating and communication systems.
- DC-1GHz Wide Frequency- 50 impedance & 1.2 VSWR ensure signal integrity for AM/FM broadcast, aviation, and lab testing up to 1GHz.
- Arctic/Desert Temperature Proof- Works from -55 to +125, tested through 1,000 hot-cold cycles for extreme environments.
- Compact Rugged Design- Anodized aluminum housing with IP65 rating resists corrosion, dust, and moisture for outdoor/harsh-condition use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: Compatiblewith: Industrial RF Heating SystemsBroadcast Transmitters (AM/FM/Shortwave)5G/4G
Base Station TestingMilitary/Aviation CommunicationConnector Type:
Input: UHF Male (PL259) / UFH Male (Customizable)
Output: Integrated Termination (No
Output Port) Impedance: 50 1 (Matched to RF Systems)
Power Handling:
Continuous: 50W / 100WFrequency
Range: DC1 GHz (Covers AM/FM Broadcast, Aviation, Industrial
Heating)VSWR: 1.20 @1GHz (Ensures
Minimal Signal Reflection) Thermal Design:
Material: Black Anodized Aluminum Heatsink (Thermal
Conductivity: 160W/mK)Environmental
Resilience:
Temperature: -55 to +125 (Validated via 1, 000
Thermal Cycles)IP Rating: IP65 (Dust/Water Resistance for
Outdoor Use)Durability: Mating
Cycles: 5, 000 (Threaded
Connector) Corrosion Resistance: Salt Spray Test (ASTM B117, 500hrs)
