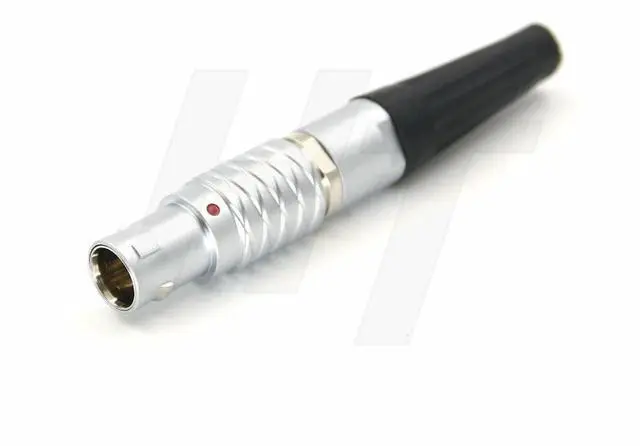

HangTon 1B Multipole Circular Metal Connector Male Straight Cable Plug FGG Push-Pull Quick-Lock Solder (3 Pin, Plug)
- Circular metal aviation push-pull self-locking connector
- Compatible with the Lemo B series & ODU L series
- For medical equipment, test equipment, machinery, audio and video devices, broadcasting, telecommunications and military, etc.
- Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
- Quick connect, male contacts cable plug FGG, female panel mount socket EGG
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: In the harsh environment can provide a safe and reliable connection. 1B (buckle coupling) metal aviation push-pull self-locking connector is ideal for Medical Electronics, Test and Laboratory Equiment, Measurement Instrumentation, Data and Telecom Systems, Audio and Video Applications, Military and Aerospace, Industrial Controls, Machinery, used to transfer data and supplying power.

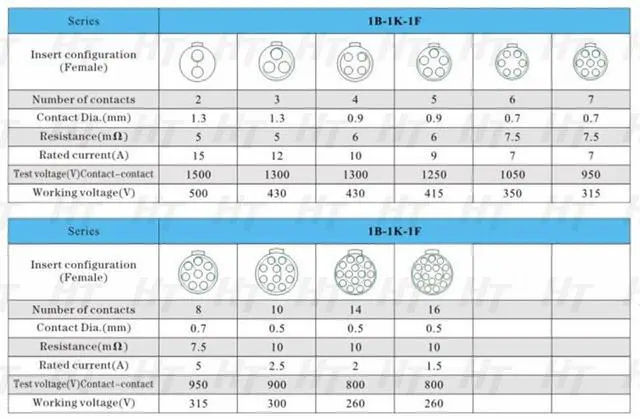

Contacts: 2 3 4 5 6 7 8 10 14 16Wire diameter:
2-3pin: 20AWG
; 4-8pole: 22AWG
; 10-16pin: 28AWG
Cable Collet: 3-6mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of waterproof plastic or metal connectors( cable plug, panel mount socket, receptacle, male or female contact and straight or right angle style).

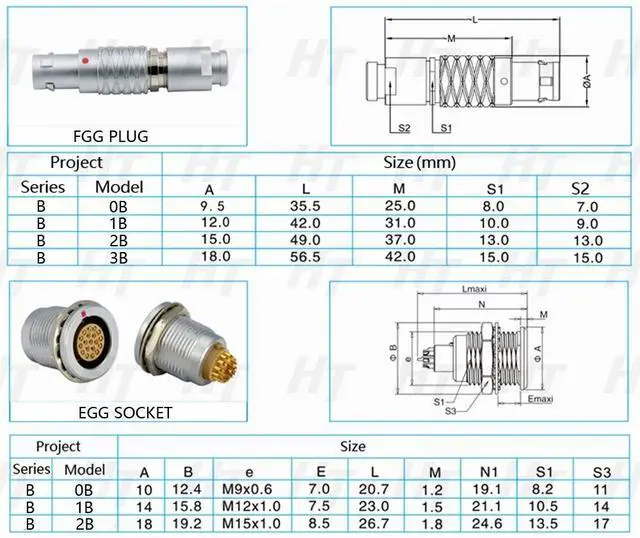

Specifications
: Compatible with LEMO 1B FGG EGG connectors.Contacts: 2 3 4 5 6 7 8 10 14 16Wire diameter:
2-3pin: 20AWG
; 4-8pole: 22AWG
; 10-16pin: 28AWG
Cable Collet: 3-6mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of waterproof plastic or metal connectors( cable plug, panel mount socket, receptacle, male or female contact and straight or right angle style).
