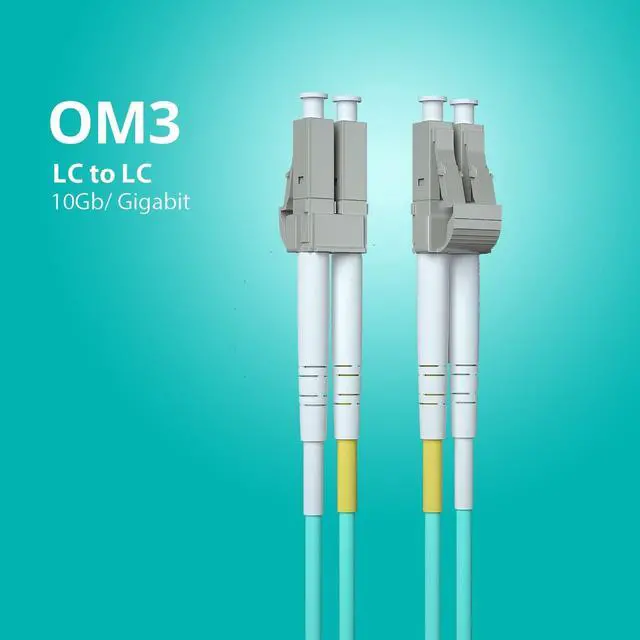

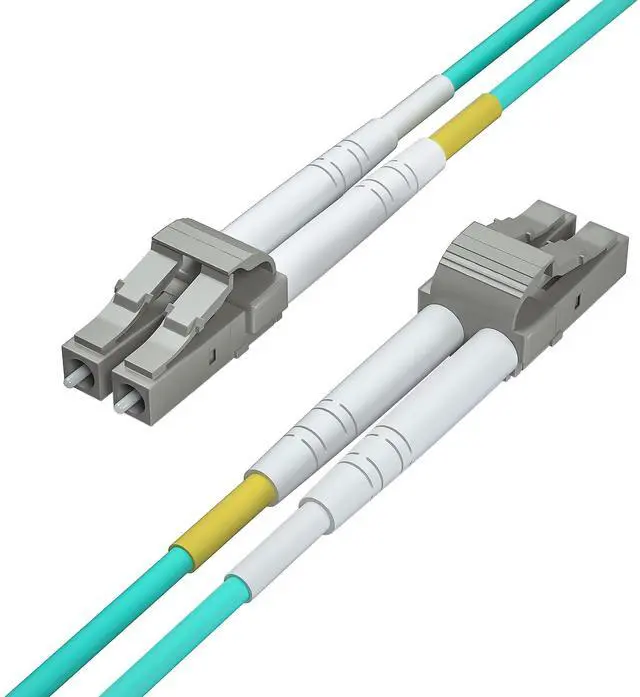

10 Pack OM3 LC to LC Fiber Patch Cable, 10GB Multimode Fiber Jumper, Duplex LC/UPC MMF 50/125um, LSZH, Green, for SFP Transceiver, Router, 3 Meter(9.8ft)
- OM3 Multimode Fiber: 3 meter/9.8 ft OM3 LC to LC Multimode Duplex Fiber Optic Cable, MMF, UPC Polish, 50/125um; It is designed for 1G/10G/40G/100G MMF connection, and is ideal for 1000Base-SX, 10Gbase-SR, 10Gbase-LRM transceivers etc. 10 Pack

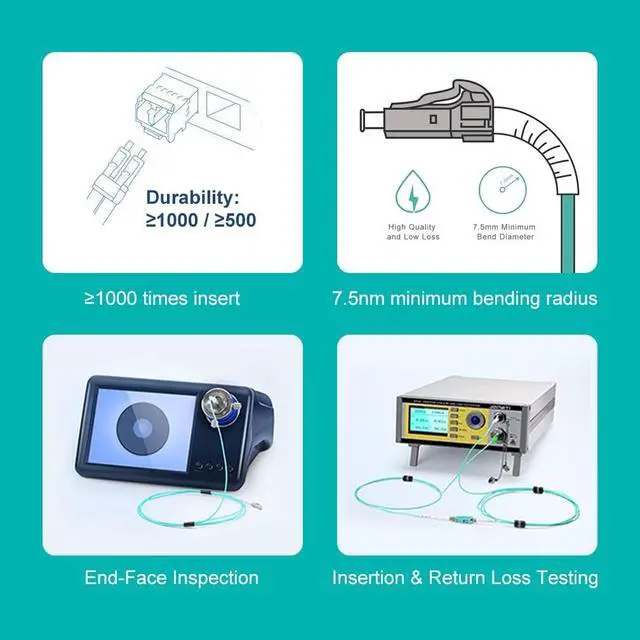

- Flexible Wiring: Bending-insensitive Multimode Fiber (BIMMF) allows 7.5mm bending radius that is 4X more flexible than standard 50 micron fiber cables; It provides greater flexibility in tight spaces or long cable runs with multiple bends

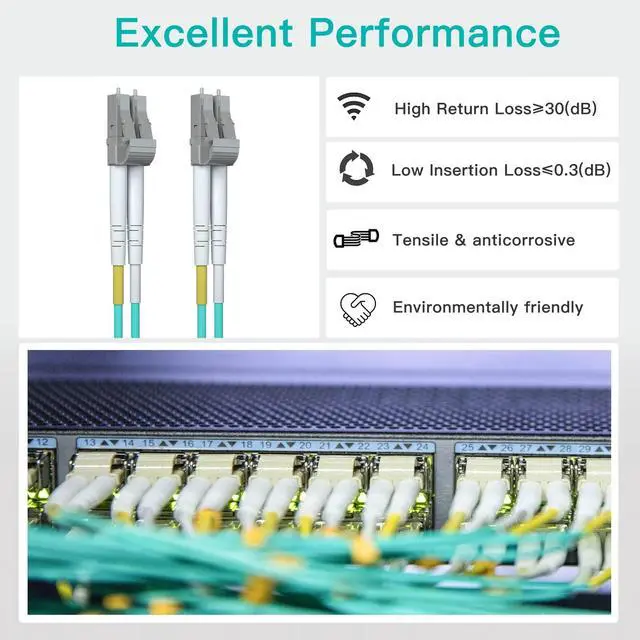

- Efficient Design: Premium Ceramic Ferrule provides low insertion loss, good repeated insertion and removal performance; Insertion Loss is less than 0.3dB; Return Loss is greater than 30dB
- Superior Safety: LSZH Protection Jacket and strong resistance to pull, ensuring a safer and durable environment for SANs, switches, routers, media converters and data centers
- High Quality: Our cables meet TIA 568-C.3 / 604-10 / 492AAAC, UL910, CE, RoHS; All cables are Inspected and Tested before shipping; We provides
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10 Gigabit Performance for Critical Connections These fiber cords are OM3 rated for the extreme demands of SAN networks. They are precision factory tested for insertion and return loss to ensure transmission performance per TIA-568-C. 3 specifications. The combination of LC connectors in a protective yoke, strain relief boots and zirconia ceramic ferrules provides a dependable, low-loss performance. Bend Insensitive Engineering BEND INSENSITIVE DESIGN allows for a 7.5 mm bending radius that is 4X more flexible than standard 50 micron fiber cables. Bend insensitive multimode fiber (BIMMF) provides greater flexibility in tight spaces or long cable runs with multiple bends.
Easy installation HiFiber Fiber Patch cable simplify the installation process and reduce the total cost of ownership of your project, due to pre-terminated fiber intrinsic plug-and-play characteristic. Application CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installation; Wide Area Networks; Cable
Core: 50 um -
Cladding: 125 um -
Jacket: LSZH -
OD: 2.0 mm -
Classification: OM3 -
Wavelengths: 850 and 1300nm -
Type: Bend-Insensitive Multimode (BIMMF) -
Ferrule Material: Ceramic -
Polish: PC -
Compliance: TIA 568-C. 3 / 604-10 / 492AAAC, UL910, CE, RoHS Warranty Limited 5-Year Warranty
Easy installation HiFiber Fiber Patch cable simplify the installation process and reduce the total cost of ownership of your project, due to pre-terminated fiber intrinsic plug-and-play characteristic. Application CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installation; Wide Area Networks; Cable

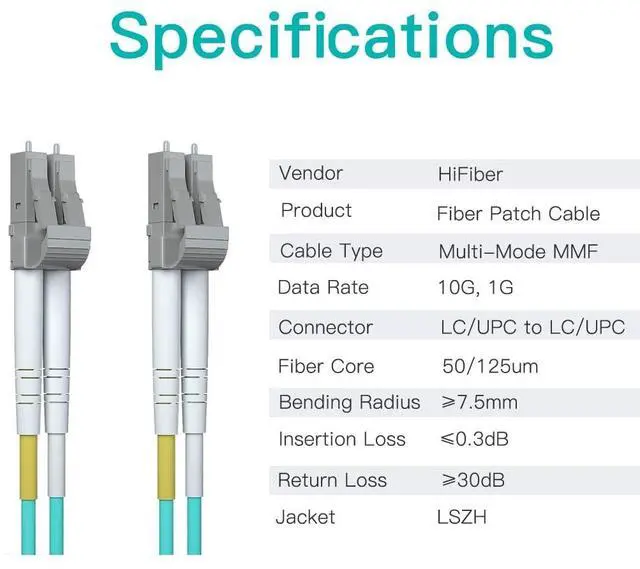

Specifications
- Connectors: LC to LC -Core: 50 um -
Cladding: 125 um -
Jacket: LSZH -
OD: 2.0 mm -
Classification: OM3 -
Wavelengths: 850 and 1300nm -
Type: Bend-Insensitive Multimode (BIMMF) -
Ferrule Material: Ceramic -
Polish: PC -
Compliance: TIA 568-C. 3 / 604-10 / 492AAAC, UL910, CE, RoHS Warranty Limited 5-Year Warranty
