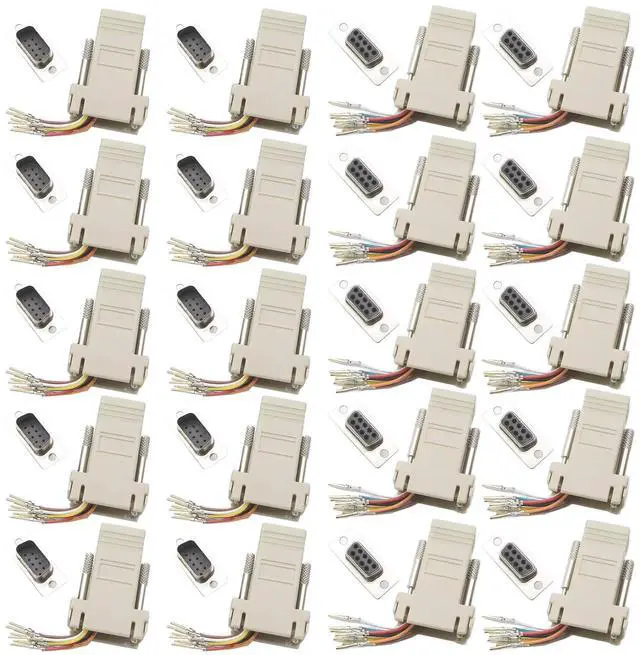

Willwewon 20PCS(10PCS Male + 10PCS Female) DB9 to RJ45 Ethernet Adapter, 9 Pin Serial Port to RJ45 Ethernet LAN Extend Modular Converter

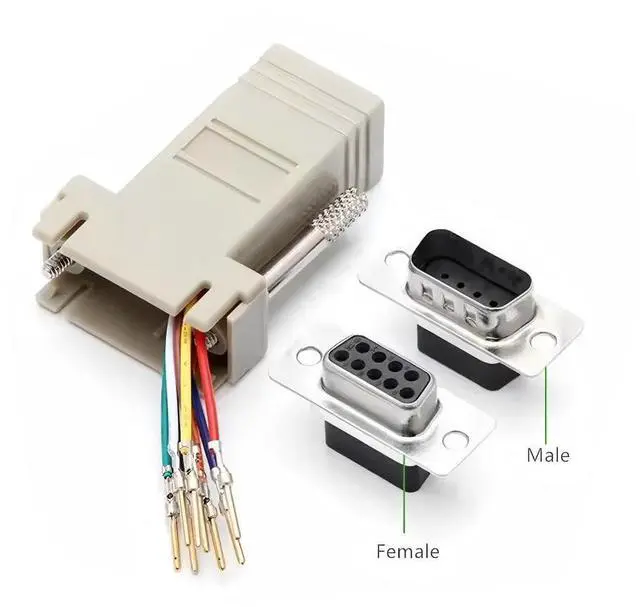

- These modular adapters can be converted from DB9 to RJ45 sockets (female), allowing you to establish a connection between devices that use different interfaces.
- Easy to use: plug and play design, simple installation, no need for welding.No external power needed, draw power from the connected devices, convenient for portable setups.
- Widely Compatibility: You can use these systems for computer-related equipment such as printers, mice, keyboards, networks, and modems.
- RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White. The lead wire is a "flying wire" that provides you with more flexibility when inserting pins.
- DB9 Pin Definition: 1.CD(Carrier Detect); 2.RD(Received Data); 3.TD(Transmitted Data); 4.DTR(Data Terminal Ready); 5.GND(Ground); 6.DSR(Data Set Ready); 7.RTS(Request to Send); 8.CTS(Clear to Send); 9.RI(Ring Indicator).
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
These modular adapters can be converted from DB9 to RJ45 sockets (female), allowing you to establish a connection between devices that use different interfaces.
^^ Easy to use: plug and play design, simple installation, no need for welding. No external power needed, draw power from the connected devices, convenient for portable setups.
^^ Widely Compatibility: You can use these systems for computer-related equipment such as printers, mice, keyboards, networks, and modems.
^^ RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White. The lead wire is a "flying wire" that provides you with more flexibility when inserting pins.
^^ DB9 Pin Definition: 1. CD (Carrier Detect); 2. RD (Received Data); 3. TD (Transmitted Data); 4. DTR (Data Terminal Ready); 5. GND (Ground); 6. DSR (Data Set Ready); 7. RTS (Request to Send); 8. CTS (Clear to Send); 9. RI (Ring Indicator).
^^ Easy to use: plug and play design, simple installation, no need for welding. No external power needed, draw power from the connected devices, convenient for portable setups.
^^ Widely Compatibility: You can use these systems for computer-related equipment such as printers, mice, keyboards, networks, and modems.
^^ RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White. The lead wire is a "flying wire" that provides you with more flexibility when inserting pins.
^^ DB9 Pin Definition: 1. CD (Carrier Detect); 2. RD (Received Data); 3. TD (Transmitted Data); 4. DTR (Data Terminal Ready); 5. GND (Ground); 6. DSR (Data Set Ready); 7. RTS (Request to Send); 8. CTS (Clear to Send); 9. RI (Ring Indicator).
