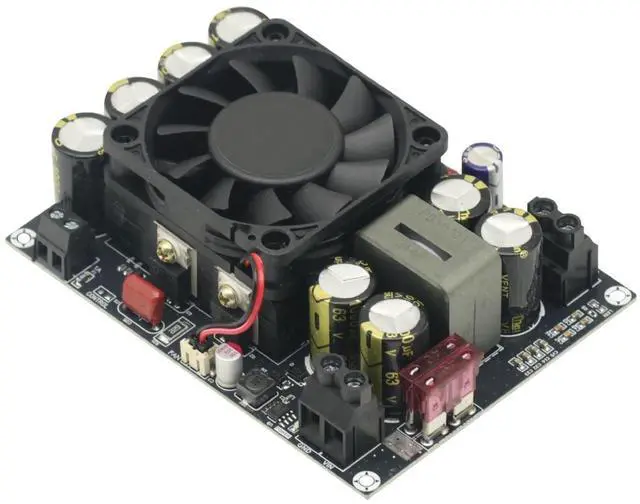

500W DC to DC Boost Power Module dc 11V-27V to 27V-50V Voltage Step Up Boost Power Regulator Converter Module for Audio Amplifiers
- 500W DC to DC Boost Power Module DC 11V-27V to DC 27V-50V Boost Regulator Converter Module for Audio Amplifiers

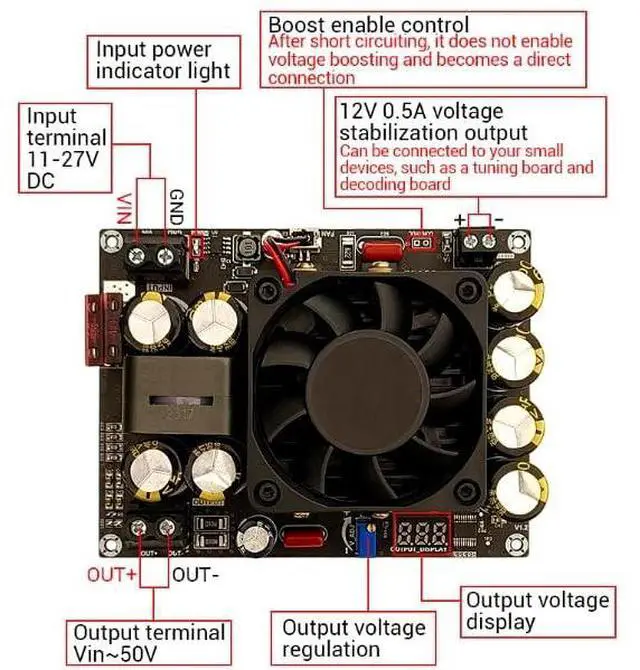

- Supply Voltage:11 - 27VDC, output voltage unstable above 27V
- Output Voltage:Vin~50V Output Power:500W
- Operating Current 67mA@(Vin=12V Vout=36V) 80mA@(Vin=12V Vout=48V) 42mA@(Vin=20V Vout=36V) 50mA@(Vin=20V Vout=48V) Conversion efficiency 92%-95
- Temperature Control Fan Rotation Conditions When the power is first turned on, it will automatically perform a self-test for 2 seconds and then stop. During operation, if the board temperature reaches or exceeds 36C, the fan will rotate, otherwise the fan will stop.

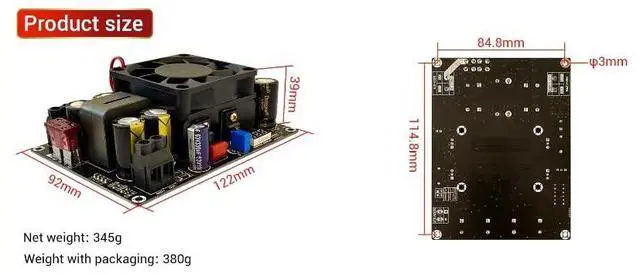

- Module dimensions 122x92x39 mm Module weight Net weight: 345g, including packaging weight: 380g: 380g
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
500W DC to DC Boost Power Module DC 11V-27V to DC 27V-50V Boost Regulator Converter Module for Audio Amplifiers ^^
Supply Voltage: 11 - 27VDC, output voltage unstable above 27V ^^
Output Voltage: Vin~50V
Output Power: 500W ^^ Operating Current 67mA@(Vin=12V Vout=36V) 80mA@(Vin=12V Vout=48V) 42mA@(Vin=20V Vout=36V) 50mA@(Vin=20V Vout=48V) Conversion efficiency 92%-95 ^^ Temperature Control Fan Rotation Conditions When the power is first turned on, it will automatically perform a self-test for 2 seconds and then stop. During operation, if the board temperature reaches or exceeds 36C, the fan will rotate, otherwise the fan will stop. ^^ Module dimensions 122x92x39 mm Module weight
Net weight: 345g, including
packaging weight:
380g: 380g
Supply Voltage: 11 - 27VDC, output voltage unstable above 27V ^^
Output Voltage: Vin~50V
Output Power: 500W ^^ Operating Current 67mA@(Vin=12V Vout=36V) 80mA@(Vin=12V Vout=48V) 42mA@(Vin=20V Vout=36V) 50mA@(Vin=20V Vout=48V) Conversion efficiency 92%-95 ^^ Temperature Control Fan Rotation Conditions When the power is first turned on, it will automatically perform a self-test for 2 seconds and then stop. During operation, if the board temperature reaches or exceeds 36C, the fan will rotate, otherwise the fan will stop. ^^ Module dimensions 122x92x39 mm Module weight
Net weight: 345g, including
packaging weight:
380g: 380g
