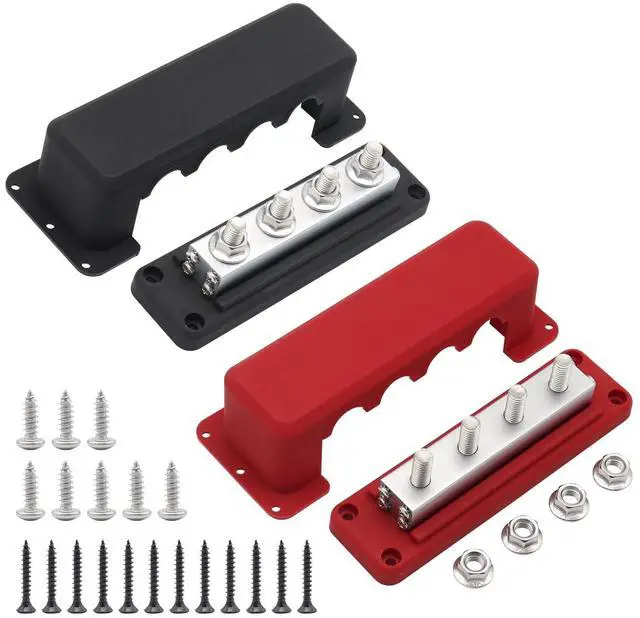

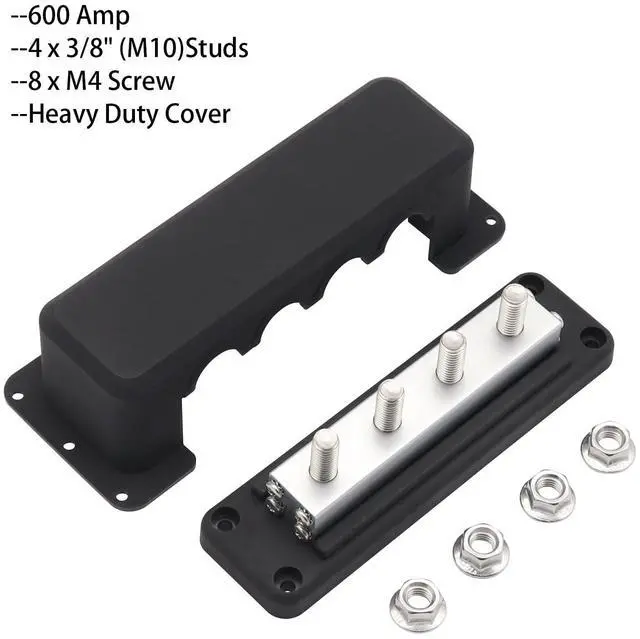

T Tocas 600 Amp BusBar with Cover- 4 & 3/8"-16 Studs Power Distribution Block 12V, 48V,600a
- Base&Cover Material :Nylon,Glass Fiber reinforc,Bus Material:Nickel-plated Red Copper
- Max Voltage: 48V DC ,600 Amps with M10 TERMINAL STUDS high current combiner box, , easy wiring configuration.
- Stainless Steel Hardware For Extreme Conditions Including Use In Marine Environments - Detachable Cover Included To Protect Connections.
- Battery Power Distribution Block Bus Bar Box measured (L x W x H): 177.85153.57.0*2.01*2.1mm,Including Upper Cover Size(LWH):203.877.254.6mm

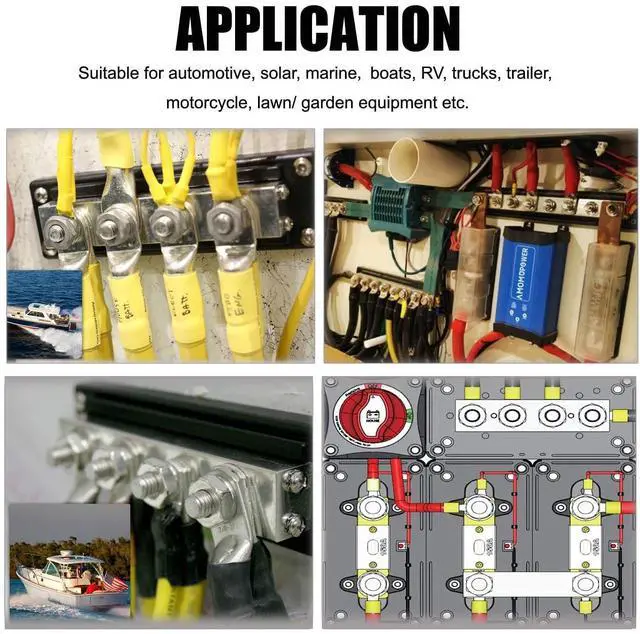

- Widely applicable to 12-48VDC Automotive RV Car Marine Truck Boat Battery Audio and other industrial equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

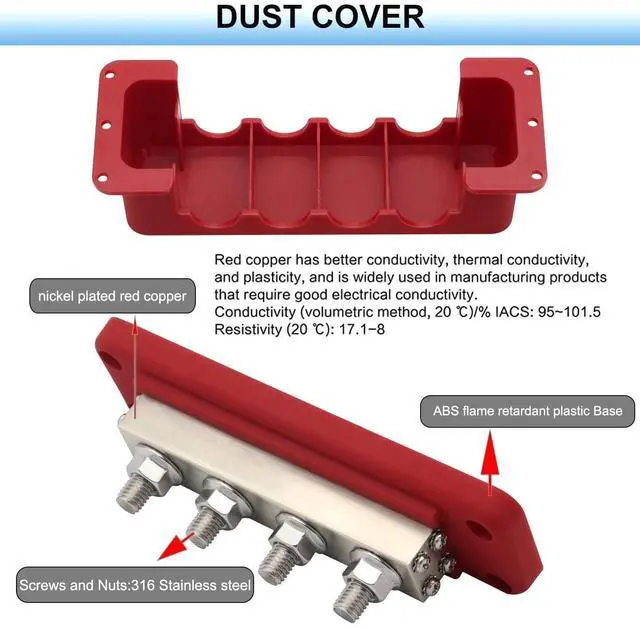

Features. Highest amperage rated bus bar (600A) with M10 TERMINAL STUDS. Glass Fiber reinforced Nylon base and enclosure ensuresensures great mechanical strength and durabilitySpecifications.
Base&Cover Material: Nylon, Glass Fiber reinforc.
Bus Material: Nickel-plated Red Copper.
Max Operating Voltage: DC48V.
Max continous Amp: 600A.
Terminal Stud Size: 4M10.
Screws and studs: 304 stainless steel.

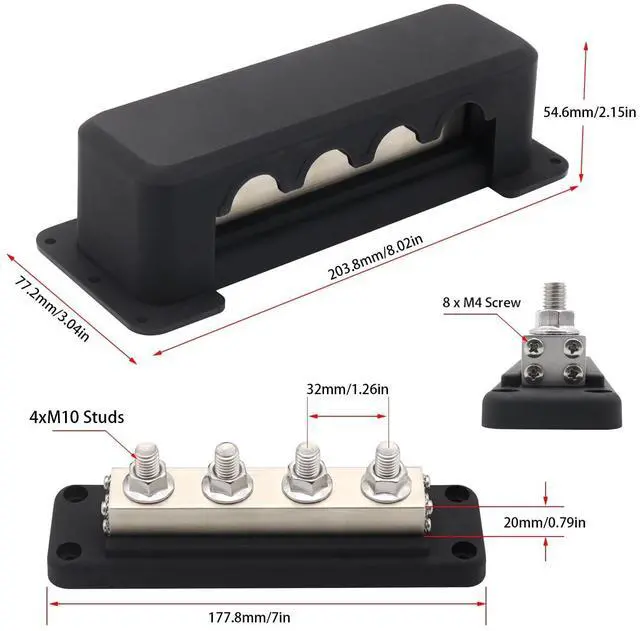

Dimensions (LWH): 177.85153. 5mm. Including Upper Cover
Size (LWH): 203.877. 254.6 mm
Base&Cover Material: Nylon, Glass Fiber reinforc.
Bus Material: Nickel-plated Red Copper.
Max Operating Voltage: DC48V.
Max continous Amp: 600A.
Terminal Stud Size: 4M10.
Screws and studs: 304 stainless steel.
Dimensions (LWH): 177.85153. 5mm. Including Upper Cover
Size (LWH): 203.877. 254.6 mm
