GwliUni 4PCS Fiber Optic Cable Splitter with 1 to 2 Distribution Channel 50:50 Ratio Wiring Coupler for GPON,FTTH,CATV System (SC-UPC 1 to 2)

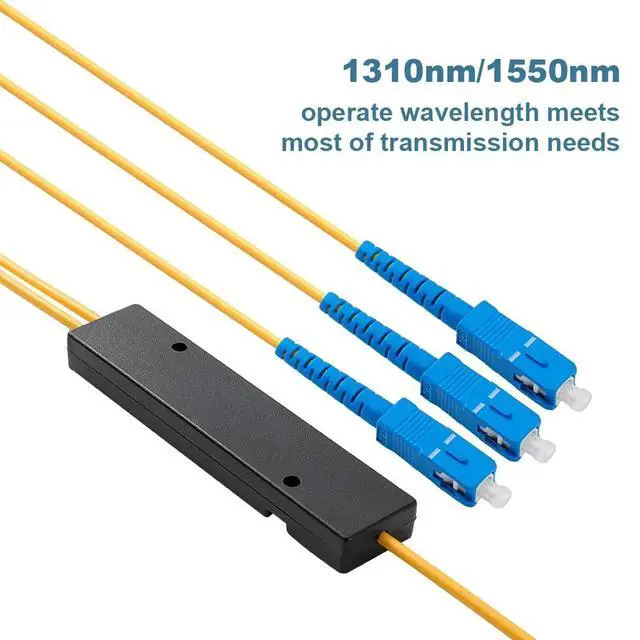

- Main Parameter1 to 2 Fiber optical splitter with SC-UPC plug, Ratio 50:50, 1310nm / 1550nm operate wavelength, -30 to +80C operate temperature ranges

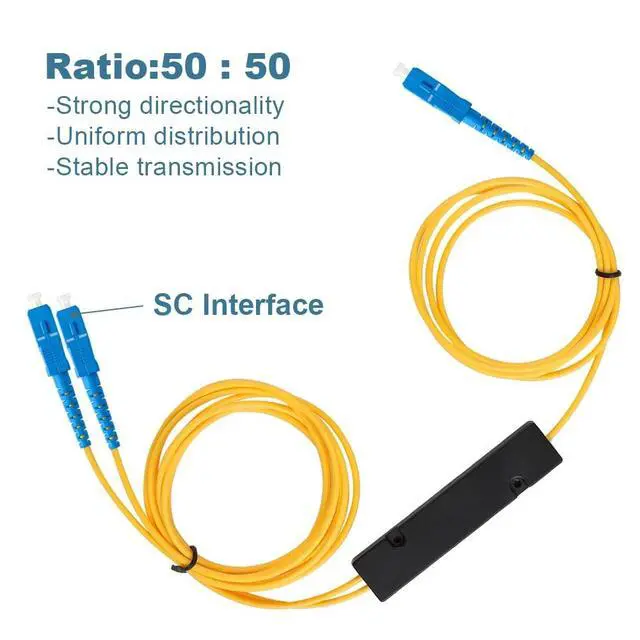

- Uniform Distribution The SC splitter distribution ratio is 50 : 50, which distributes signals evenly to each user with strong directionality, uniform distribution and stable transmission.

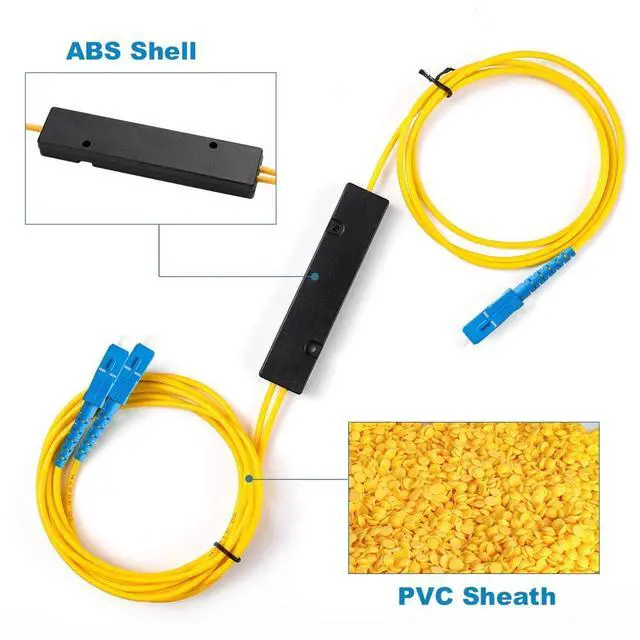

- ABS Shell ABS shell has good capacity to resist impact, heat and low temperature, which can much extend the service life of the product.
- PVC SheathThe fiber sheath of splitter uses environmental protection PVC material and has strong flame retardant

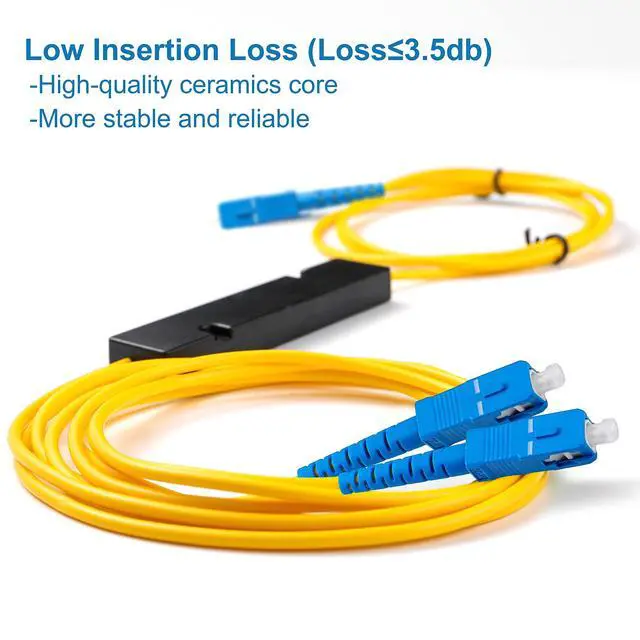

- Low Insertion Loss and Good DirectivityThe splitter uses a high-quality ceramics core with low insertion loss(loss3.5db) and Directivity55dB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description-All the data were tested with high-precision instruments. -The products are compact with beautiful appearance. It's spectral uniformity is ideal for passive optical network. - The loss is insensitive to light wavelength and can meet the transmission needs of different wavelength. Product DetailProduct Type 1:2
SC-UPC SplitterSplitter Ratio: 50:50
Insertion loss (db) (max): 3.5U
niformity (db): 0.4P
olarization-related loss (db): 0.2D
irectivity (db): 55Return
loss (db): 55Wave-related
loss (db): 0.5D
egree-related loss (db): 0.5O
perate temperature: -30-80CStorage
temperature:
-40-85CNote: All the datas didnt count the loss of fiber optic connectors.
SC-UPC SplitterSplitter Ratio: 50:50
Insertion loss (db) (max): 3.5U
niformity (db): 0.4P
olarization-related loss (db): 0.2D
irectivity (db): 55Return
loss (db): 55Wave-related
loss (db): 0.5D
egree-related loss (db): 0.5O
perate temperature: -30-80CStorage
temperature:
-40-85CNote: All the datas didnt count the loss of fiber optic connectors.
