CAN FD Protocol Converter, CAN FD to ETH Bidirectional Data Communication, Supports 5 Data Conversion Modes and CAN 2.0A/2.0B Protocols, Rail-Mount Support

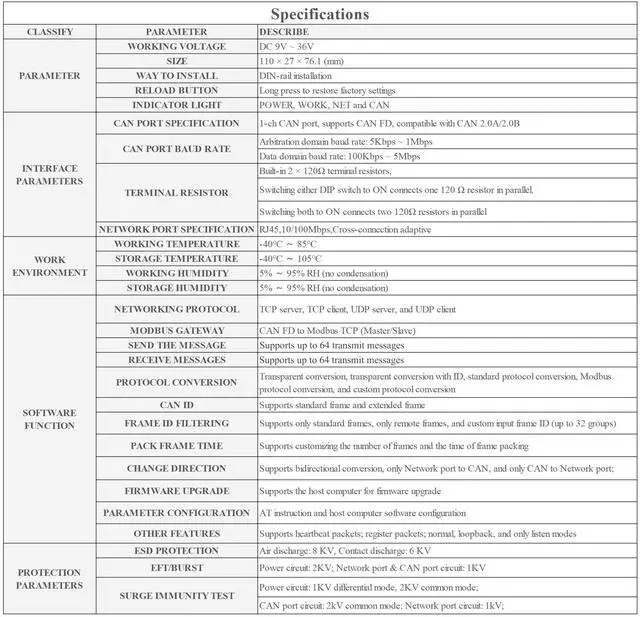

CAN FD Protocol Converter, CAN FD To ETH Bidirectional Data Communication, Supports 5 Data Conversion Modes And CAN 2.0A / 2.0B Protocols, Rail-mount Support. Featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. ^^ It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and Network port devices, compatible with CAN FD and CAN 2.0A / 2.0B protocols. ^^ Features industrial-grade design, supports -40C ~ 85C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate. ^^

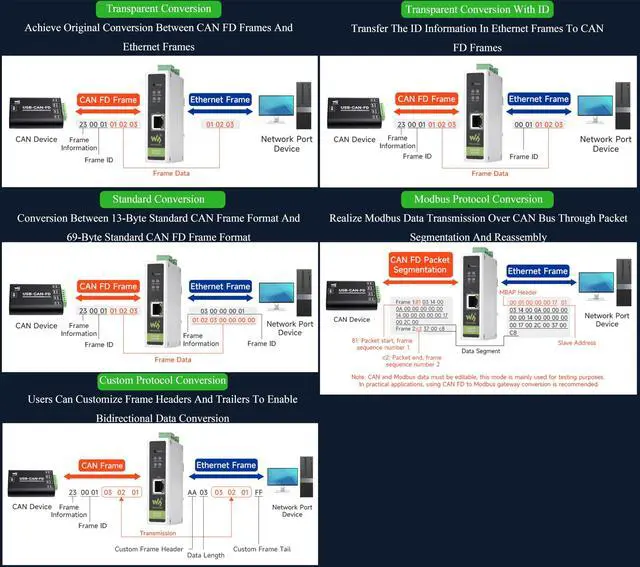

Supports multiple conversion modes: Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion. Supports parameter configuration via host computer, built-in 120 terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install. ^^ 3 Frame Filtering Methods, 32 Sets of
Configurable Filters: Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/8m0y3
