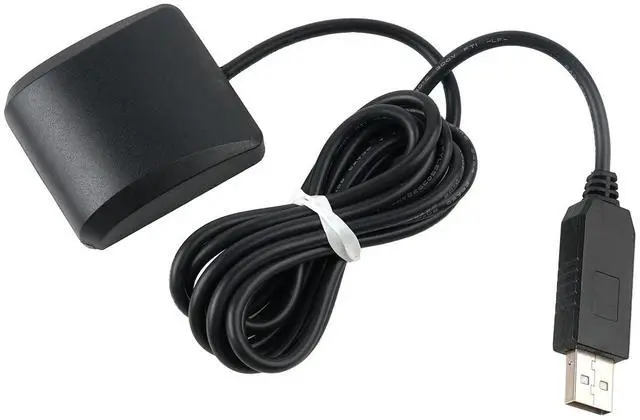

DIYmall M10 G-Mouse USB GPS Module PL2303GL USB-to-Serial Supports Bluetooth-Connection GNSS Positioning Module for Car Boat Android-Tablet Windows11/10/8/7/XP Navigation
- The module adopts UBX-10 positioning chip, which is a G-MOUSE that can track the satellite signals of up to four GNSS constellations at the same time, with low power consumption and high sensitivity. It is able to locate itself quickly and accurately in the city, canyon, under the elevated area and other places with weak signals, as well as any position inside the car
- Built-in PL2303GL USB-to-serial high-performance conversion chip, it can be used in computer and vehicle systems
- Please note the Android-Tablet need install gps-connector app. The computer needs to install drivers. If you compute without PL2303GL driver, please install PL2303GL first
- Note: When using the GPS module on the car's infotainment system, do not use the fast-charging cigarette lighter USB port for power; it is recommended to use the system's built-in USB port
- Application: widely used in car monitoring, bus stop announcement, car navigation, boat navigation, laptop navigation and other products
- Wha
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Highlights: -
Product main chip: SR1612U10 (UBX-M10050-KB)-
Bluetooth module: BT04-E dual-mode SPP 3.0 + BLE 4.2 - Using PL2303GL USB-to-serial high-performance conversion chip, USB cable length 2 meters- Support GPS+Beidou+Galileo+QZSS (default); GPS+GLONASS; GPS+Beidou multiple modes output- Built-in Flash, free to configure the baud rate, output statement, output rate, second pulse and other parameters. - Built-in TCXO crystals and Farad capacitors for faster hot-starting- 1-10Hz positioning update rateChip
CharacteristicsChip: SR1612U10
(UBX-M10050-KB)Frequency: BeiDou B1I/B1C; GPS L1 C/A; QZSS L1 C/A/S; GLONASS L10F; Galileo E1B/C;
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Baud rate: 4800bps-921600bps (default 38400bps)
SensitivityTracking:
-167dBmCapture: -160dBmCold
Start: -148dBmStart-up timeCold
Start: Average 26 seconds.
Warm Start: Average 24 secondsHot
Start: Average 1 secondAccuracyHorizontal
Accuracy: 1.5 meter CEP
Time Accuracy: 30 nsOperating
LimitMaximum height: 80000
meterMaximum speed: 500
m/sMaximum acceleration: 4GOutput
DataOutput level: USB level (Built-in
PL2303GL conversion chip)Output protocol: NMEA0183 Standard protocol (can be set to specify output statements)
Update frequency: 1Hz -10Hz (default 1Hz)

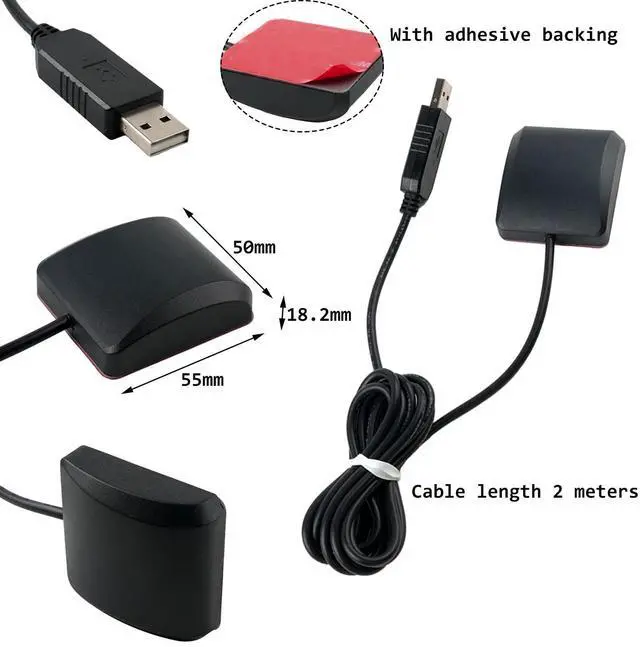

Physical CharacteristicsDimension: 55 x 50 x 18.2 mm, Cable
length 2 meterWeight:
90gConnector: Standard
USB portBluetooth moduleBT04-E: Dual mode SPP 3.0 +BLE 4.2O perating environmentOperating
Temperature: -40 to 85Storage
Temperature: -40 to 85
Product main chip: SR1612U10 (UBX-M10050-KB)-
Bluetooth module: BT04-E dual-mode SPP 3.0 + BLE 4.2 - Using PL2303GL USB-to-serial high-performance conversion chip, USB cable length 2 meters- Support GPS+Beidou+Galileo+QZSS (default); GPS+GLONASS; GPS+Beidou multiple modes output- Built-in Flash, free to configure the baud rate, output statement, output rate, second pulse and other parameters. - Built-in TCXO crystals and Farad capacitors for faster hot-starting- 1-10Hz positioning update rateChip
CharacteristicsChip: SR1612U10
(UBX-M10050-KB)Frequency: BeiDou B1I/B1C; GPS L1 C/A; QZSS L1 C/A/S; GLONASS L10F; Galileo E1B/C;
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Baud rate: 4800bps-921600bps (default 38400bps)
SensitivityTracking:
-167dBmCapture: -160dBmCold
Start: -148dBmStart-up timeCold
Start: Average 26 seconds.
Warm Start: Average 24 secondsHot
Start: Average 1 secondAccuracyHorizontal
Accuracy: 1.5 meter CEP
Time Accuracy: 30 nsOperating
LimitMaximum height: 80000
meterMaximum speed: 500
m/sMaximum acceleration: 4GOutput
DataOutput level: USB level (Built-in
PL2303GL conversion chip)Output protocol: NMEA0183 Standard protocol (can be set to specify output statements)
Update frequency: 1Hz -10Hz (default 1Hz)
Physical CharacteristicsDimension: 55 x 50 x 18.2 mm, Cable
length 2 meterWeight:
90gConnector: Standard
USB portBluetooth moduleBT04-E: Dual mode SPP 3.0 +BLE 4.2O perating environmentOperating
Temperature: -40 to 85Storage
Temperature: -40 to 85
