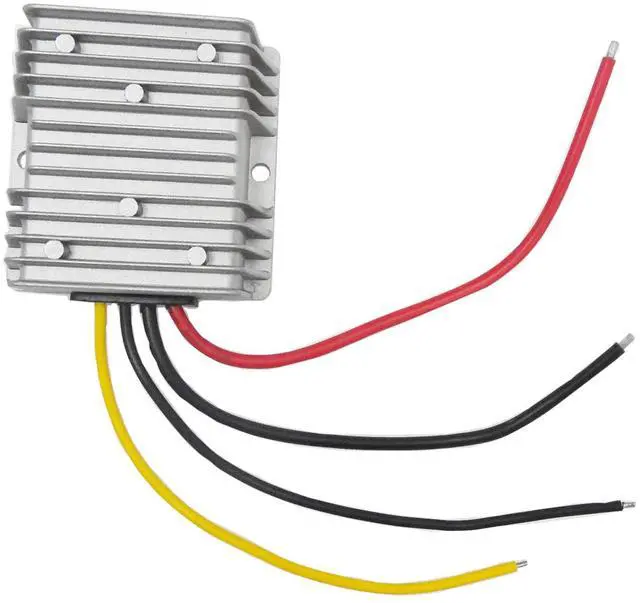

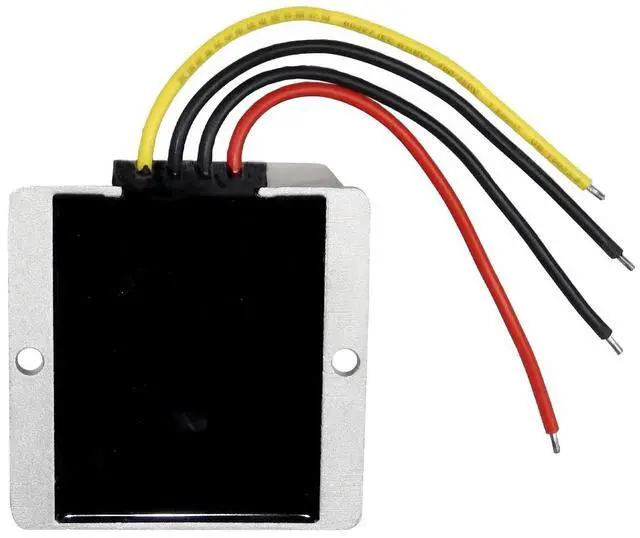

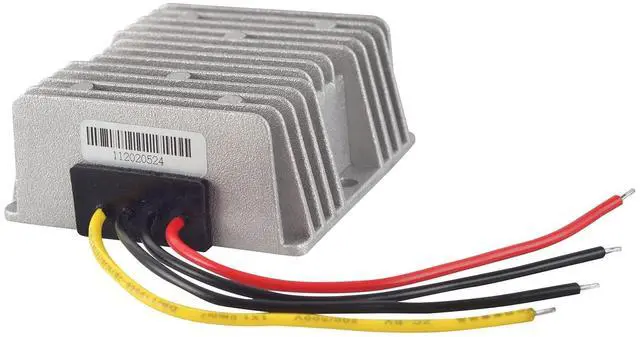

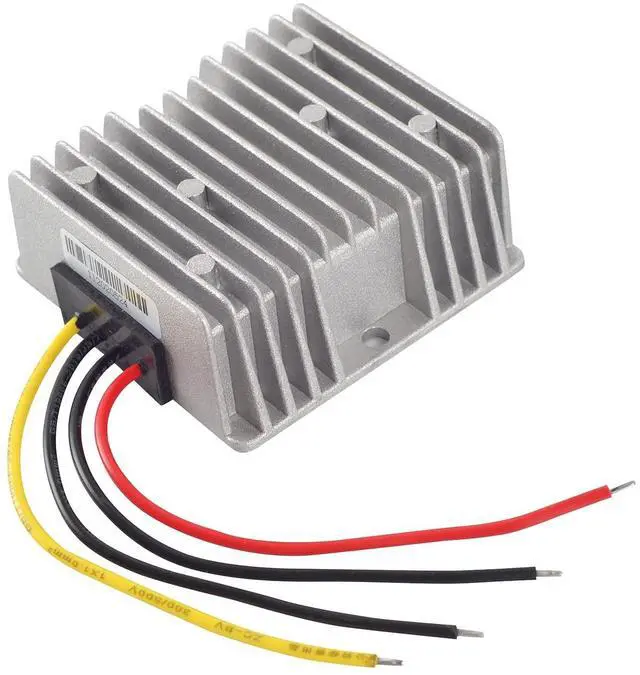

12V 24V to 48V DC Step Up Converter (Input 9-30V) DC-DC Boost Voltage Transformer for GolfCART (6A 288W)

Application: New energy vehicles, golf carts, ships, DC motors, intelligent robots, electric bicycles, solar photovoltaic, industrial equipment, on-board equipment, LED equipment, Communication equipment, The converter outputs a standard 48V voltage and is not suitable for charging.
Multiple core advantages: Overvoltage protectionOvercurrent protectionShort circuit protectionHigh temperature protectionOutput anti reverse connection protectionProduct model: 12V/24V to 48V
DC Step Up ConverterOutput current: 6AOutput
power:
288WBrand: KAABEE
Input voltage: between DC (9-30)
VOutput voltage: DC
48VVoltage accuracy: 1%Load
regulation rate: 0.2
%Linear adjustment rate: 0.2
%No load current:
70mARipple: 80mAConversion
efficiency: 94%
- 96%Module nature: DC-DC non isolated power supplyProtection grade: IP67Operating
temperature: - 35

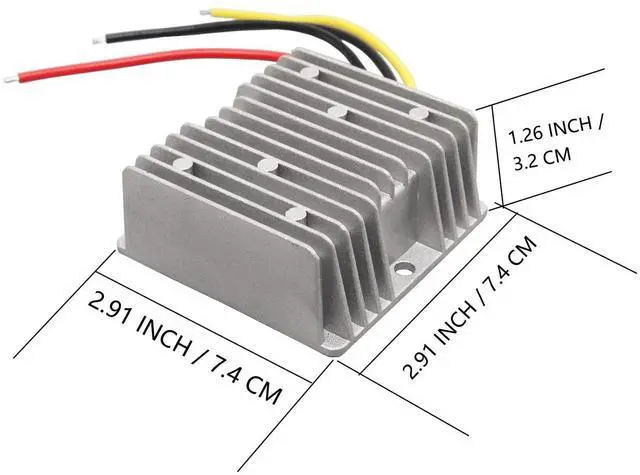

C~+80 CBoundary dimension: 74 * 74 * 32Net weight: 300gWiring
mode: lead, line
length 13CMRepair time: 1
yearService life: 100, 000
hoursmatters needing attention: 1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer) 2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output. During normal operation of the module, allowance should be reserved for the power module. It is recommended to work below 90% of the rated power for a long time.
