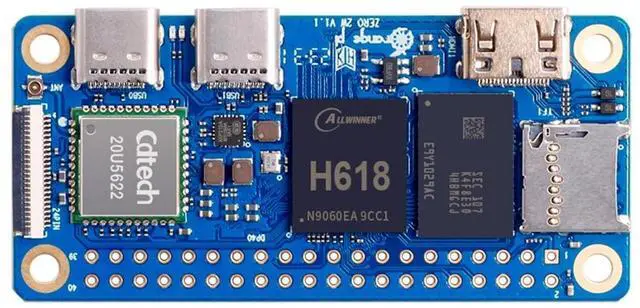

Orange Pi Zero 2W 1.5G Allwinner H618 LPDDR4 Quad Core CPU 64 Bit Single Board Computer, 1.5GHz Frequency WiFi 5.0 Bluetooth 5.0 onboard Antenna Support 4K Display Run Android Ubuntu

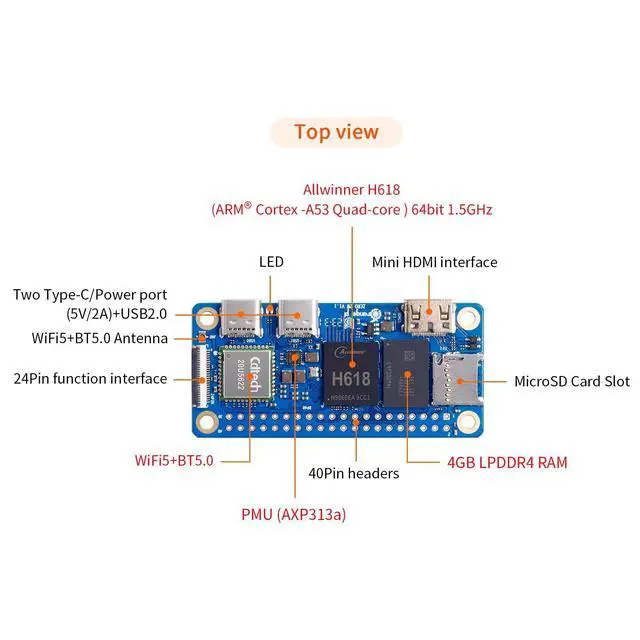

- Orange Pi Zero 2W is powered by Allwinner H618 high-performance quad-core Cortex-A53 processor with up to 1.5GHz, integrated Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1. It has 1GB /1.5GB / 2GB /4GB LPDDR4 memory specification options, supports 16MB SPI Flash. Outperform the Raspberry Pi Zero 2W.
- Orange Pi Zero 2W mini pc can be extended with USB2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, etc. via 24Pin connector with adapter board. In addition, the 40Pin expansion port on the board further enriches the motherboard's functional interfaces and enhances the development potential.

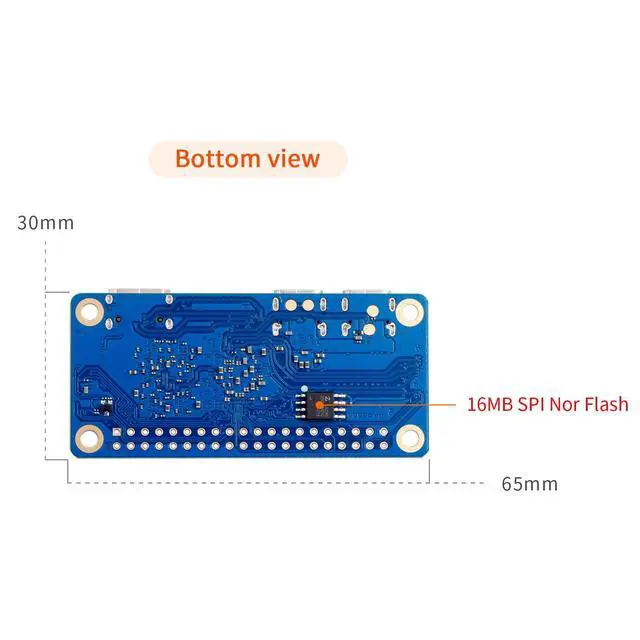

- Orange Pi Zero 2W 1.5g adheres to the compact and exquisite design concept of the Zero series, with a PCB size of 30mm X 65mm X 1.2mm, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields.
- Wi-Fi5+BT 5.0, with BLE support: 2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0 with BLE
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Specification ParameterCPU: Allchi H618 high-performance quad-core
Cortex-A53 processor 1.5GH zGPU: Mali G31 MP2Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan
1.1M emory: LPDDR 4:1 GB/ 1.5GB /2GB/4GB (optional)
Storage: SPI
Flash: 16MBWi-Fi+
Bluetooth: WiFi+ Bluetooth two-in-one moduleWi-fi 5.0 +BT 5.0, BLE
The interface is 1x Mini HDMI TX 2.0, 4K@60FPS
is supportedUSB: Type-C USB 2.0 x 2SD card interface: 1x
MicroSD card interfaceExpansion interface: 24Pin
expansion interface: USB 2.0 *2, 100M Ethernet interface, infrared receiving interface, audio output, video TV-OUT output, power button, user-defined

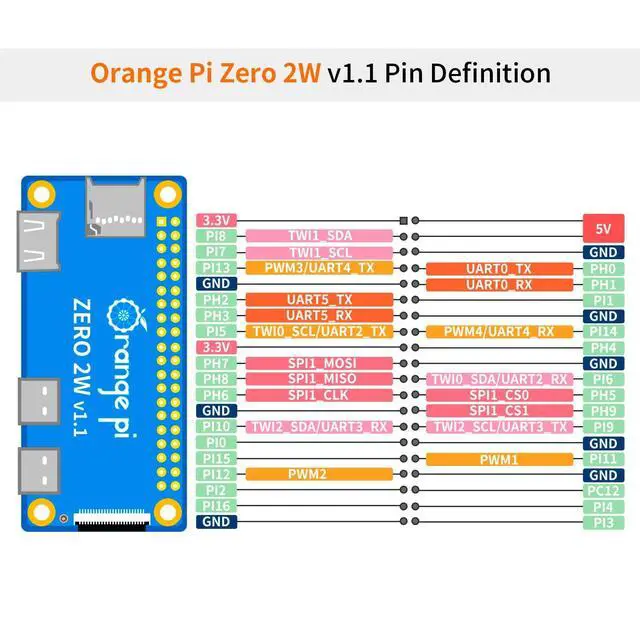

button *240Pin: The 40Pin function extension interface supports the following interface types: GPIO, UART, I2C, SPI, PWM
Power supply: Type-C 5V3ASupported
OS: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04, Orange Pi OS (Arch)
PCB size: 30mm x 65mm x 1.2 mmWeight: 12.5 g
Cortex-A53 processor 1.5GH zGPU: Mali G31 MP2Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan
1.1M emory: LPDDR 4:1 GB/ 1.5GB /2GB/4GB (optional)
Storage: SPI
Flash: 16MBWi-Fi+
Bluetooth: WiFi+ Bluetooth two-in-one moduleWi-fi 5.0 +BT 5.0, BLE
The interface is 1x Mini HDMI TX 2.0, 4K@60FPS
is supportedUSB: Type-C USB 2.0 x 2SD card interface: 1x
MicroSD card interfaceExpansion interface: 24Pin
expansion interface: USB 2.0 *2, 100M Ethernet interface, infrared receiving interface, audio output, video TV-OUT output, power button, user-defined
button *240Pin: The 40Pin function extension interface supports the following interface types: GPIO, UART, I2C, SPI, PWM
Power supply: Type-C 5V3ASupported
OS: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04, Orange Pi OS (Arch)
PCB size: 30mm x 65mm x 1.2 mmWeight: 12.5 g
