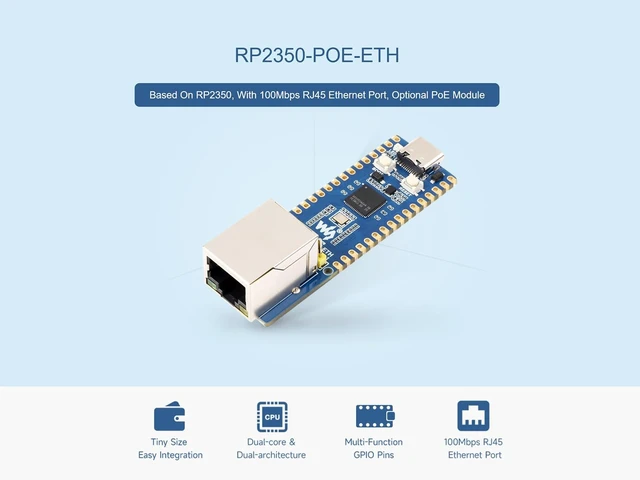

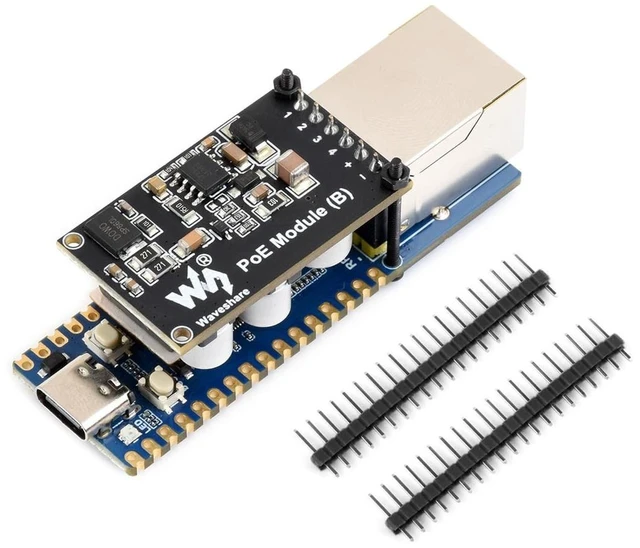

RP2350 POE ETH Development Board with PoE Module

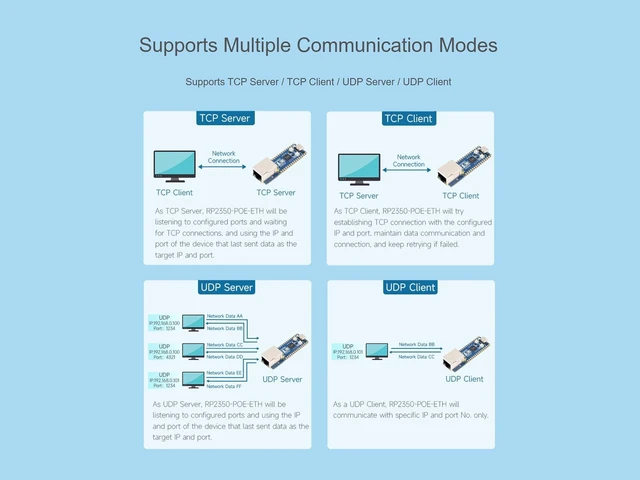

- RP2350-POE-ETH development board with 100Mbps RJ45 Ethernet Port, onboard a W6300 hardwired TCP/IP Ethernet controller, onboard PoE module & power supply header, supports PoE Expansion via a PoE Module
- RP2350-POE-ETH-Kit based on RP2350 microcontroller chip, adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of Static RAM, and 16MB of onboard Flash memory

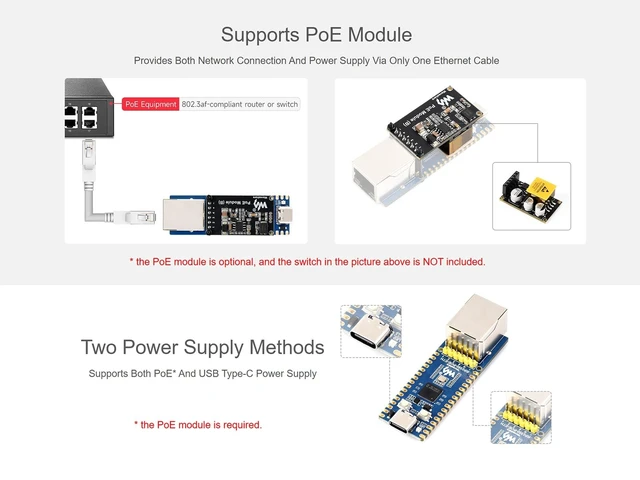

- Onboard USB Type-C port for power supply and programming. It can be powered via a USB Type-C port or through an Ethernet cable when used with PoE module
- Features a programmable WS2812 RGB LED and 20 user-programmable GPIO pins for flexible expansion, making it suitable for various IoT network projects and embedded applications. Castellated module allows soldering direct to carrier boards
- USB 1.1 host and device support. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. 12 Programmable I/O
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350-POE-ETH development board with 100Mbps RJ45 Ethernet Port, onboard a W6300 hardwired TCP/IP Ethernet controller, onboard PoE module & power supply header, supports PoE Expansion via a PoE Module ^^ RP2350-POE-ETH-Kit based on RP2350 microcontroller chip, adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of Static RAM, and 16MB of onboard Flash memory ^^ Onboard USB Type-C port for power supply and programming. It can be powered via a USB Type-C port or through an Ethernet cable when used with PoE module ^^ Features a programmable WS2812 RGB LED and 20 user-programmable GPIO pins for flexible expansion, making it suitable for various IoT network projects and embedded applications.
Castellated module allows soldering direct to carrier boards ^^ USB 1.1 host and device support. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. 12 Programmable I/O (PIO) state machines for custom peripheral support
Castellated module allows soldering direct to carrier boards ^^ USB 1.1 host and device support. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. 12 Programmable I/O (PIO) state machines for custom peripheral support
