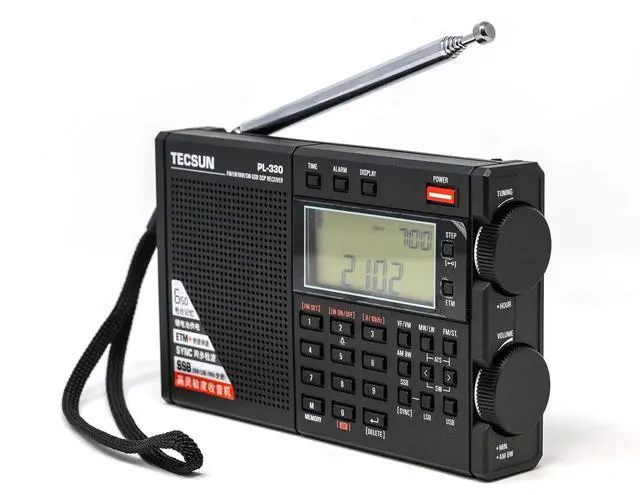

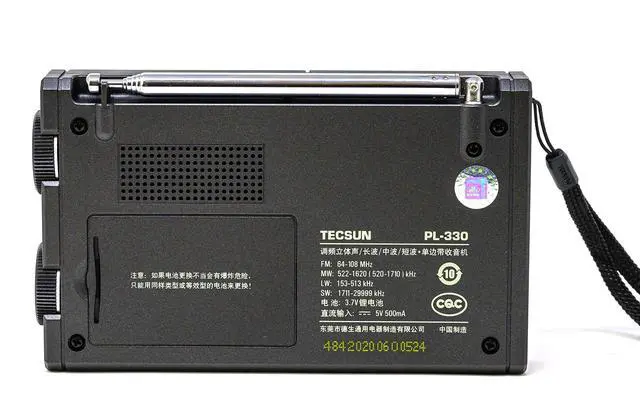

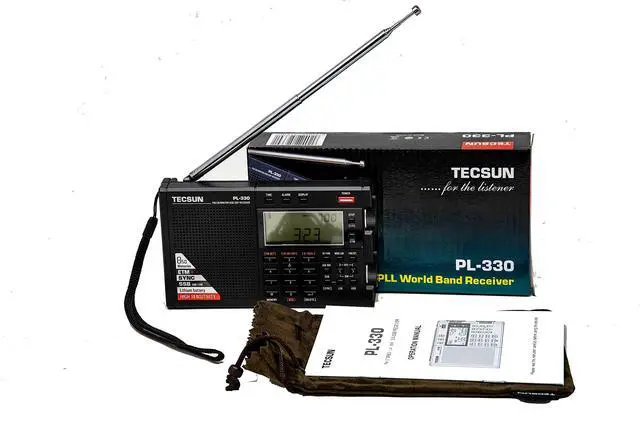

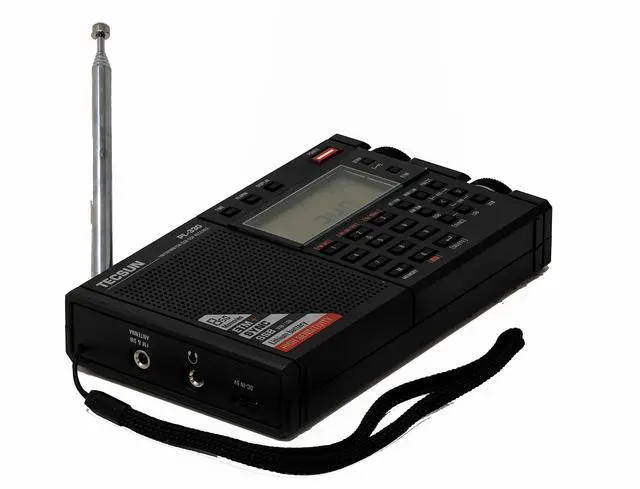

Tecsun Digital PL330 AM/FM/LW/SW Worldband Radio with Single Side Band Receiver
- A digital portable receiver with comprehensive radio frequency coverage including AM, FM, longwave, shortwave, and single side band
- Adopts modern DSP digital demodulation technology as well as synchronized detection for enhanced and unparalleled reception sensitivity, selectivity, and anti-image interference capability across the bands
- A premium full-range 8 ohms / 250 mW speaker delivers loud, rich, crispy, dynamic and distortion-free sound for utmost entertainment experience, a 3.5 mm stereo earphone jack for private listening (stereo earphones included)
- Other convenient features include an alarm clock; a sleep timer of up to 120 minutes; external antenna input; 3.5mm audio output; 850 memories for easy access to frequently listened stations; keylock function for preserving settings
- Latest Updated Firmware Version 3307
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Functions: SSB capacity, direct frequency input, synchronous AM detection ETM+ portable, lightweight, rechargeable lithium ion battery BL-5C included.
Technical data: frequency
range: LW 153-513 kHz, MW 520-1710/522-1620 kHz, SW 1 711-2999 kHz, FM 64-108/76-108/87-108/88-108-10. 8 MHz F 8
MHFrequency adjustment steps:
LW/MW: 9/1kHz, SW: 5/1kHz, SSB 5kHz/1kHz/10Hz Z, detection
synchronous: 5kHz/1kHz/100Hz, FM: 100/10kHz
Frequency memory:
LW: 100, MW: 150, SW: 300, FM: 100, SSB: 100, Sync: 100 Noise limit (for 26d)
B S/N):
LW: <10mV/m, MW<1mV/m, SW: <20uV, FM (for 30dB S/N) <3uV
Selectivity: 60 dB on all bands.
Sync detection range: +/- 1 kHz
DSP IF frequency: AM 45 kHz, FM: 12 kHz, FM: 8 kHz FM stereo
Crosstalk: 35 dB (headphone output), speaker: 8 ohms, 0.2 5 W, maximum
Audio Output: 200mW,
Power Drainage:
FM/MW/LW: <25mA, SW: <45mA, Standby
Current: <90uA na Micro USB 5V 500mA
Dimensions: 139 x 85 x 26mm
Weight: 210g
Technical data: frequency
range: LW 153-513 kHz, MW 520-1710/522-1620 kHz, SW 1 711-2999 kHz, FM 64-108/76-108/87-108/88-108-10. 8 MHz F 8
MHFrequency adjustment steps:
LW/MW: 9/1kHz, SW: 5/1kHz, SSB 5kHz/1kHz/10Hz Z, detection
synchronous: 5kHz/1kHz/100Hz, FM: 100/10kHz
Frequency memory:
LW: 100, MW: 150, SW: 300, FM: 100, SSB: 100, Sync: 100 Noise limit (for 26d)
B S/N):
LW: <10mV/m, MW<1mV/m, SW: <20uV, FM (for 30dB S/N) <3uV
Selectivity: 60 dB on all bands.
Sync detection range: +/- 1 kHz
DSP IF frequency: AM 45 kHz, FM: 12 kHz, FM: 8 kHz FM stereo
Crosstalk: 35 dB (headphone output), speaker: 8 ohms, 0.2 5 W, maximum
Audio Output: 200mW,
Power Drainage:
FM/MW/LW: <25mA, SW: <45mA, Standby
Current: <90uA na Micro USB 5V 500mA
Dimensions: 139 x 85 x 26mm
Weight: 210g
