MGGi DC 48V to 12V Converter Voltage Regulator 30A 360W Voltage Reducer Buck Transformer Power Supply for Golf Cart, forklifts, Car
- Golf Cart DC Buck Step-Down Voltage Converter Regulator DC 48V to DC 12V 30A 360W, Output voltage: DC 12V, Output current: 30A, Output power 360W, input voltage range is DC 36-55V,Wide input Voltage,small Size and easy to place in any applications.
- Multiple Protections: Protection of input momentary high voltage,Output Over heat,Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage,Over 100000 hours lifetime, anti-shock, and moisture-proof and has stronger Durability,High Transfer Efficiency and Stable Performance.
- Die-cast aluminum shell, Silicone sealed, Expoxy potting, Cooling by free air convection, Anti-shock, Anti-humidity, Dust-proof, Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability, maximum transfer efficiency of 96% max, low heat generated and Stable performance.
- Waterproof rating: IP68, 100% waterproof,can work in rain, waterproof housing makes the converter ideal for use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

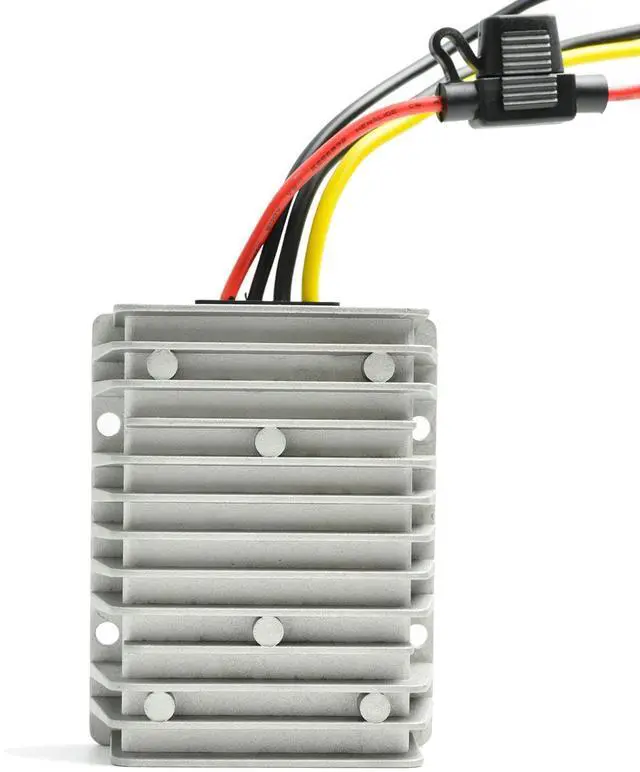

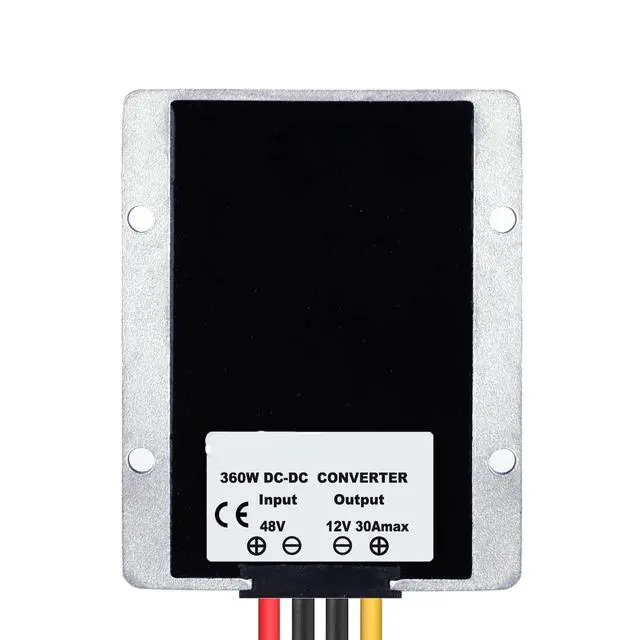

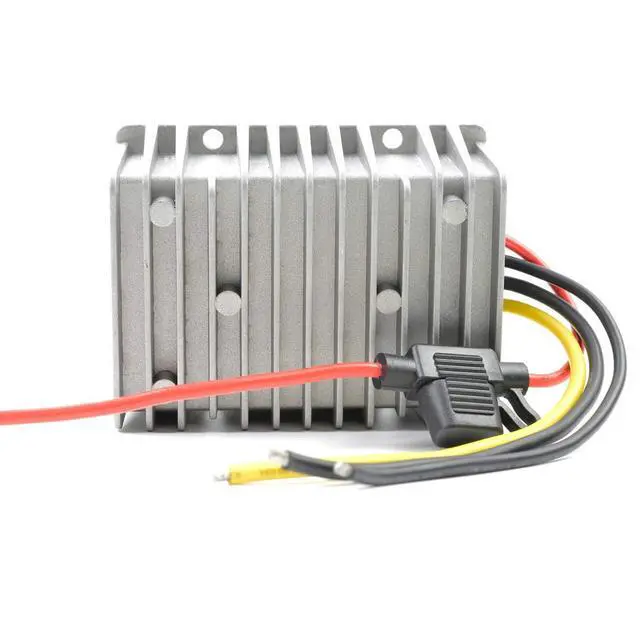

The dc converter regulator is a high reliability power transformer. It features wide input voltage, low power consumption, high efficiency, high reliability. It can work safely and reliability in 40C~85C. It widely used in industrial, automotive, instruments, telecommunication and civil applications. Die-cast aluminum shell, epoxy potting, cooling by free air convection5
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingStable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100, 000 hours100% full power and stable current output, non-isolated module. Industry grade DC 48V to 12V step-down converterSynchronization Rectification Technologyefficiency up to 96% maxUltra compact size, light weightNon-Isolated
ModuleEasy to installApplications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.
Case material: die-cast
aluminumPotting material: epoxy
sealedInput voltage: 48V
DCInput range: 36-55V
DCOutput voltage: 12V
DCOutput current: 30AOutput
Rated Power:
360WEfficiency: 97% (half load); 95% (full load)
Operating temperature: -40
~ 85Waterproof rating: IP68Dimensions

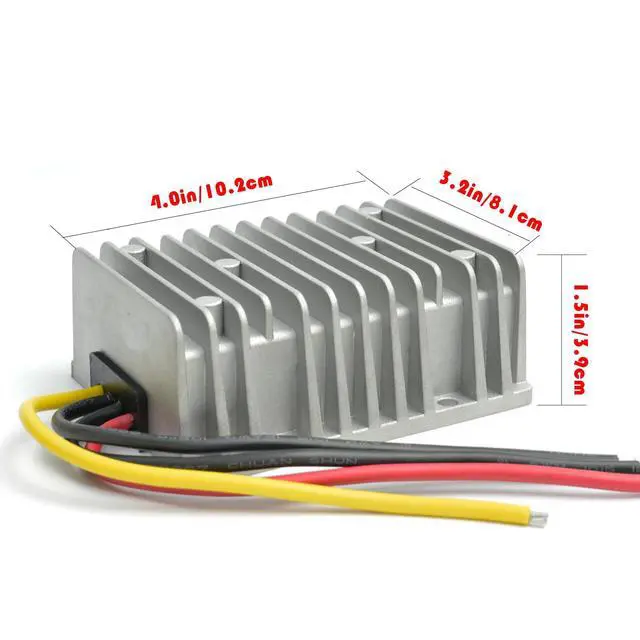

(WxDxH): 3.9" x 3.1" x 1.5" / 10.0 x 8.0 x 3.8 cmFixing
Hole Diameter: 5mm(
0.20 inch)Net weight: 17.6
oz/500gPackage included: 1 x DC Voltage converter regulatorSafety

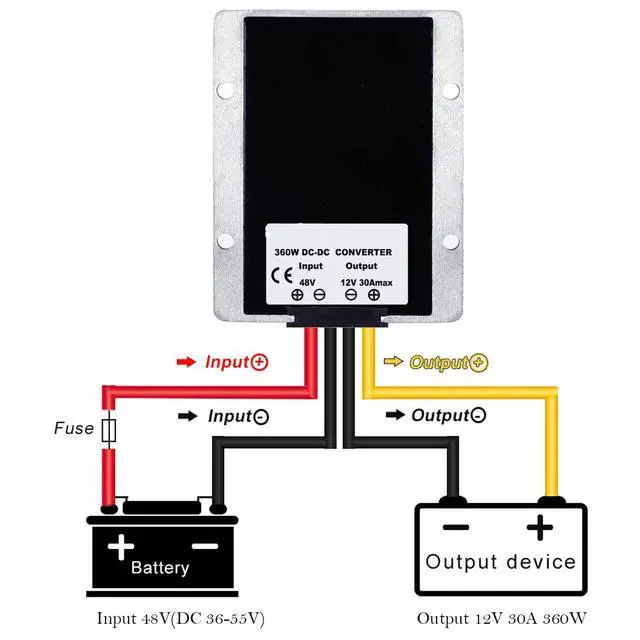

Instructional Manual: 1. Can not used long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram.
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingStable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100, 000 hours100% full power and stable current output, non-isolated module. Industry grade DC 48V to 12V step-down converterSynchronization Rectification Technologyefficiency up to 96% maxUltra compact size, light weightNon-Isolated
ModuleEasy to installApplications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.
Case material: die-cast
aluminumPotting material: epoxy
sealedInput voltage: 48V
DCInput range: 36-55V
DCOutput voltage: 12V
DCOutput current: 30AOutput
Rated Power:
360WEfficiency: 97% (half load); 95% (full load)
Operating temperature: -40
~ 85Waterproof rating: IP68Dimensions
(WxDxH): 3.9" x 3.1" x 1.5" / 10.0 x 8.0 x 3.8 cmFixing
Hole Diameter: 5mm(
0.20 inch)Net weight: 17.6
oz/500gPackage included: 1 x DC Voltage converter regulatorSafety
Instructional Manual: 1. Can not used long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram.
