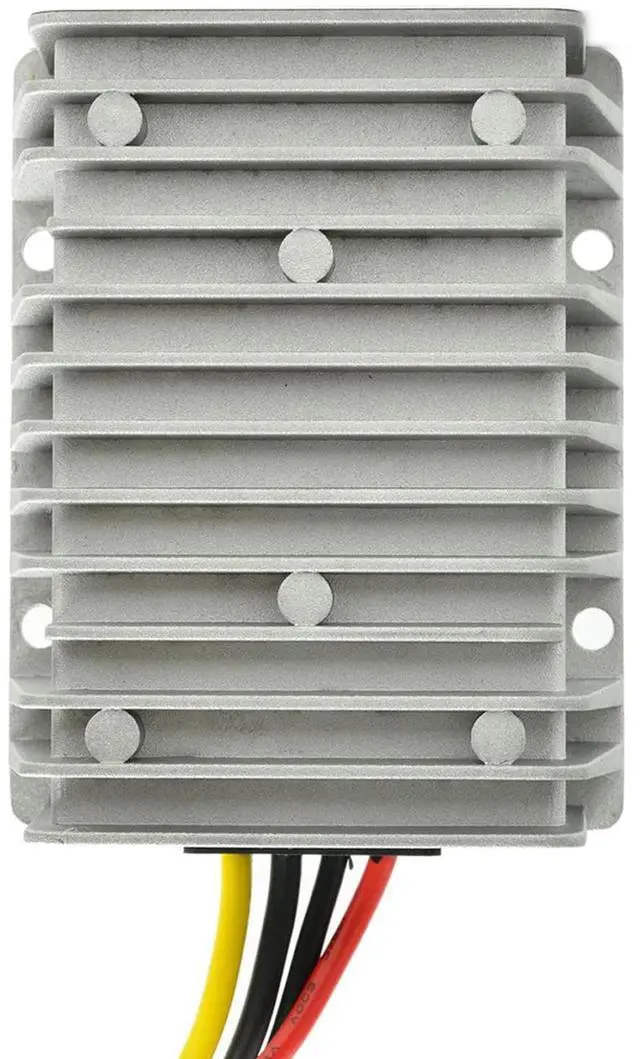

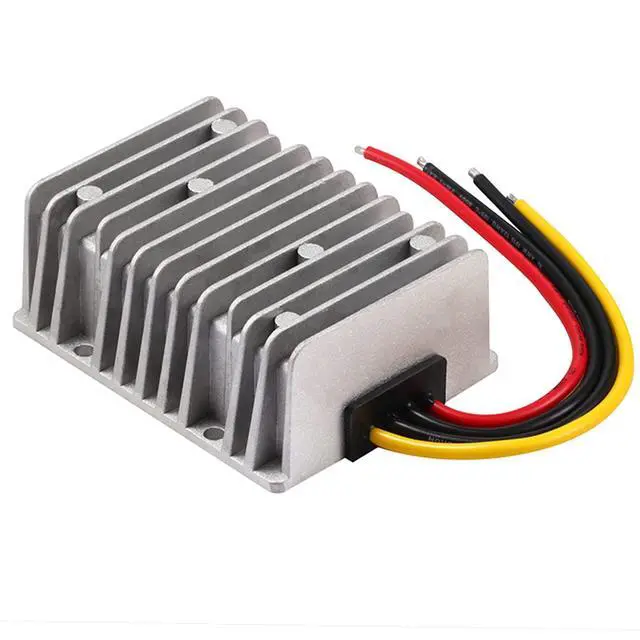

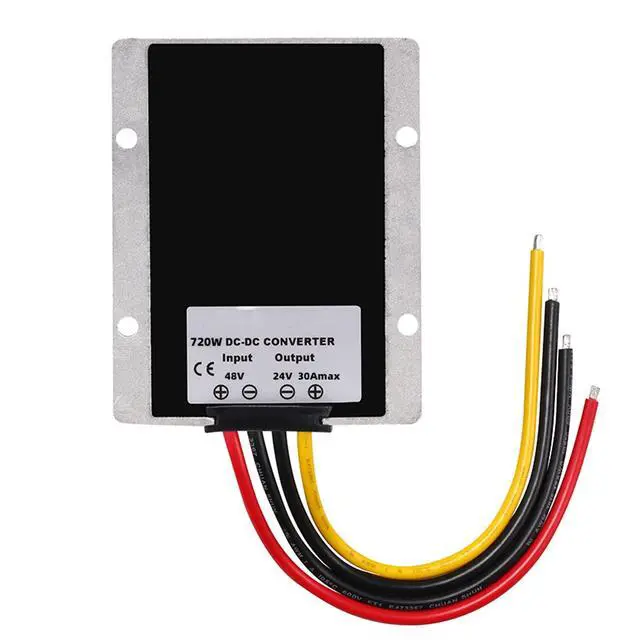

MGGi Voltage Reducer 36V 48V Step Down to 24V 30A 720W, Waterproof Big-Size DC Converter, High-Power Power Supply Module Buck Transformer for Golf Cart, Forklifts, Car
- Golf Cart DC Buck Step-Down Voltage Converter Regulator, Output voltage: DC 30-60V; Output voltage: DC 24V(non-adjustable); Output current: 30A; Output power 720W, Wide input Voltage, easy to place in any applications.
- Die-cast aluminum shell, expoxy potting, cooling by free air convection, Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
- Multiple Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; over 100000 hours lifetime
- Waterproof rating: IP68, 100% waterproof , can work in rain, waterproof housing makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc, and Commonly used for radio, speaker system, club car, electric bike, solar panel, led lights.
- Wide application: Used on golf cart,club car,bus, cmb, large trucks,ta
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The dc converter regulator is a high reliability power transformer. It features wide input voltage, low power consumption, high efficiency, high reliability. It can work safely and reliability in 40C~80C. It widely used in industrial, automotive, instruments, telecommunication and civil applications. Synchronization Rectification Technologyefficiency up to 96% maxIndustry grade DC 36V 48V to 24V step-down converter5
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingDie-cast aluminum shell, epoxy potting, cooling
by free air convectionApplications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc. Stable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100, 000 hoursUltra compact size, light weightNon-Isolated
ModuleEasy to installCase material: die-cast
aluminumPotting material: epoxy
sealedInput voltage: 36V/48V
DCInput range: 30-60V
DCOutput voltage: 24V
DC (non-adjustable)Output current: 30AOutput
Rated Power:
720WEfficiency: 97% (half load); 95% (full load)
Operating temperature: -40
~ 85Waterproof rating: IP68Fixing
Hole Diameter: 5mm(
0.20 inch)Package included: 1 x DC Voltage converter regulatorSafety

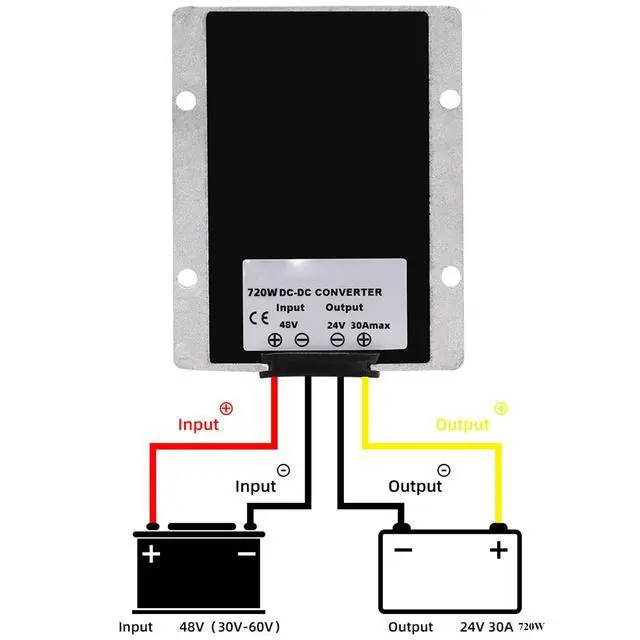

Instructional Manual: 1. Can not used long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided on above picture.
Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operatingDie-cast aluminum shell, epoxy potting, cooling
by free air convectionApplications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc. Stable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100, 000 hoursUltra compact size, light weightNon-Isolated
ModuleEasy to installCase material: die-cast
aluminumPotting material: epoxy
sealedInput voltage: 36V/48V
DCInput range: 30-60V
DCOutput voltage: 24V
DC (non-adjustable)Output current: 30AOutput
Rated Power:
720WEfficiency: 97% (half load); 95% (full load)
Operating temperature: -40
~ 85Waterproof rating: IP68Fixing
Hole Diameter: 5mm(
0.20 inch)Package included: 1 x DC Voltage converter regulatorSafety
Instructional Manual: 1. Can not used long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided on above picture.
