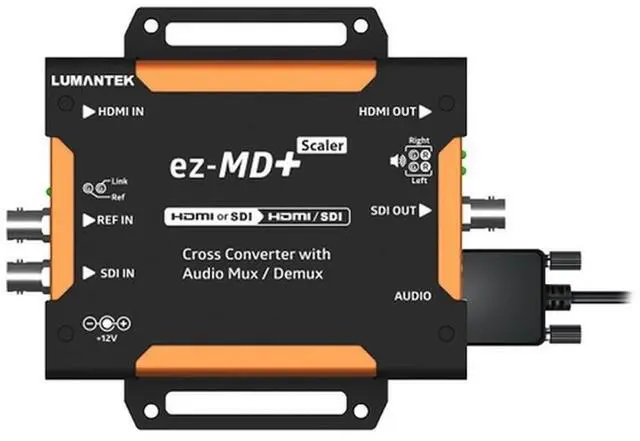

Lumantek ez-MD+ HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler

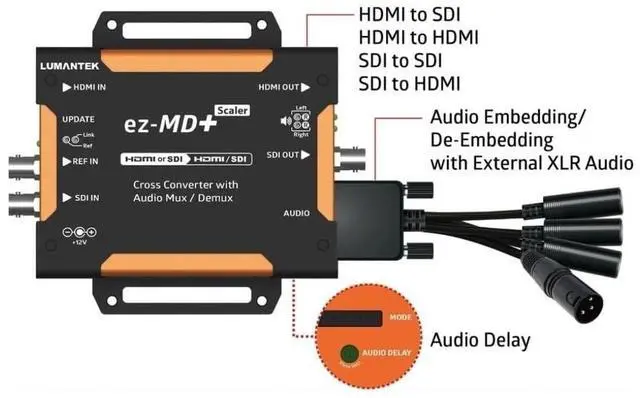

Compact Cross-Converter: Lumantek's ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with an audio delay controller
HDMI and SDI Cross-Converting: Lumantek's ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI

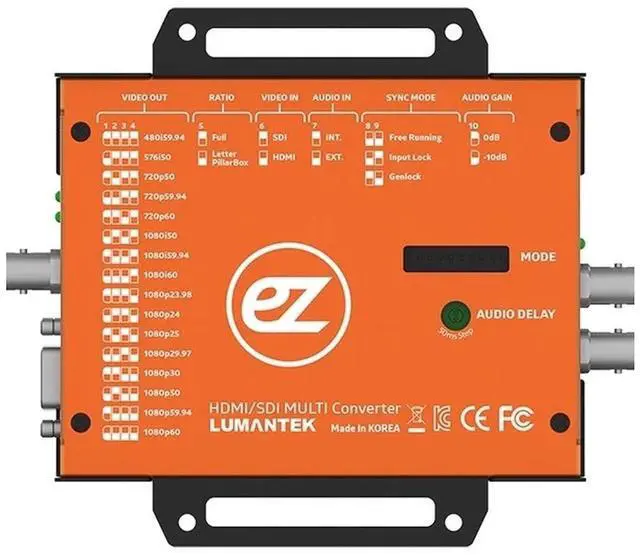

Up / Down Scaling and Screen Ratio Control: Lumantek's ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either a 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement
Audio Delay Control: Use the rotary switch to control the audio delay of the video source (50ms Step)
Frame Synchronization: There is a Free Running, Input Lock, and Genlock mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with an external

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

HDMI/SDI cross converter with audio mux/demux and scaler Audio embedding/De-embedding with external XLR Audio Audio Delay control
SDI video input: 1x SD/HD/3G-SDI (BNC 75Ohms)
HDMI video input: 1x SD/HD/3G (HDMI
Type A) Reference input: 1x B. B, TRI (BNC 75Ohms)
Audio input: 1x D-SUB 9PIN (female)
