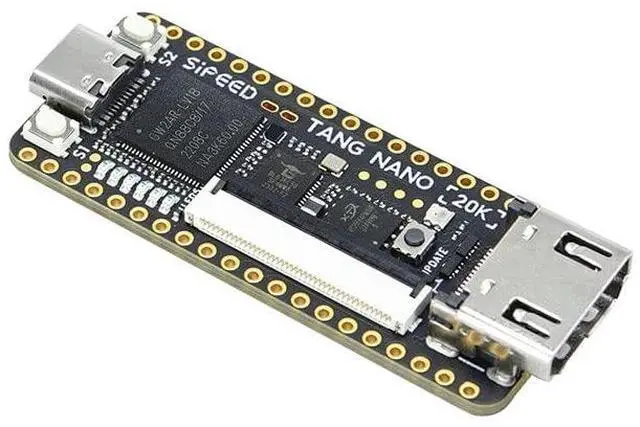

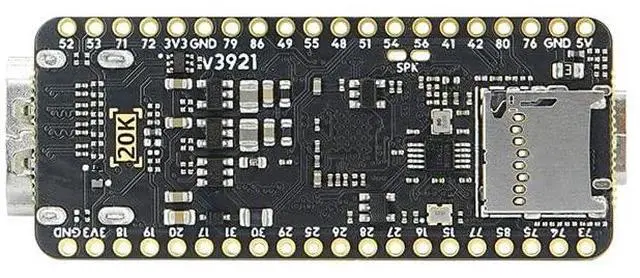

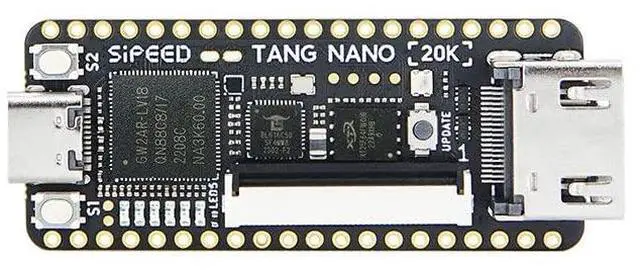

Sipeed Tang Nano 20K GW2AR-18 FPGA Single Board Computer, Open Source RISCV Linux Retro Game Console, Onboard 64Mbits SDRAM BL616 Debugger, Support Multiple Display Outputs NES Emulator
- [FPGA Chip] Sipeed Tang Nano 20K Linux Signle Board Computer with GW2AR-18 QN88 FPGA Chip containing 20736 LUT4 logic cells and 15552 Filp-Flops.There are 2 PLL in this FPGA chip, and many DSP units supporting 18 bit x 18 bit multiplication.
- [Onboard Debugger ] Sipeed Tang Nano 20K Signle Board Computer support JTAG for FPGA, USB to UART for FPGA,USB to SPI for FPGA communication, Control MS5351 generate frequency
- [USB2.0 HS interface] The 27MHz crystal generates the clock for HDMI display, onboard MS5351 clock generating chip also provides mutiple clocks.Support Serial communication, high-speed SPI reception.
- [Application scenarios] Tang Nano 20K Open source RISCV Signle Board Computer supports game console emulators, drives RGB screens, multiple display outputs, 20K LUT4, RISC-V soft-core experiments.
- [Wiki] "https://dl.sipeed.com/shareURL/TANG/Nano_20K/1_Datasheet";Any after-Sales Privems, Please Contact us by click "Waypondev" store and ask a question or leave
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
FPGA Chip: GW2A-LV18QN88C8I7
Logic units (LUT4): 20736
Flip-Flop (FF): 15552
Shadow SRAM (S-SRAM) (bits): 41472
Block SRAM (B-SRAM) (bits): 828K
Numbers of 18x18 Multiplier: 48
Onboard debugger: BL616
Clock generator: MS5351, provide extra 3 clocks for FPGA
Display interface: 40Pins RGB lcd connector/ HDMI interface
LED: 6, Low voltage level enable
RGB LED: 1, WS2812
User key: 2
TF Card Slot: 1
PCM Amplifier: 1, MAX98357Afor audio driving
Storage: 64Mbits Flash, To save bitstream
Size: 22.55 mm x 54.04 mm x 5mm
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire. cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum. youyeetoo. com/.
FPGA Chip: GW2A-LV18QN88C8I7
Logic units (LUT4): 20736
Flip-Flop (FF): 15552
Shadow SRAM (S-SRAM) (bits): 41472
Block SRAM (B-SRAM) (bits): 828K
Numbers of 18x18 Multiplier: 48
Onboard debugger: BL616
Clock generator: MS5351, provide extra 3 clocks for FPGA
Display interface: 40Pins RGB lcd connector/ HDMI interface
LED: 6, Low voltage level enable
RGB LED: 1, WS2812
User key: 2
TF Card Slot: 1
PCM Amplifier: 1, MAX98357Afor audio driving
Storage: 64Mbits Flash, To save bitstream
Size: 22.55 mm x 54.04 mm x 5mm
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire. cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum. youyeetoo. com/.
