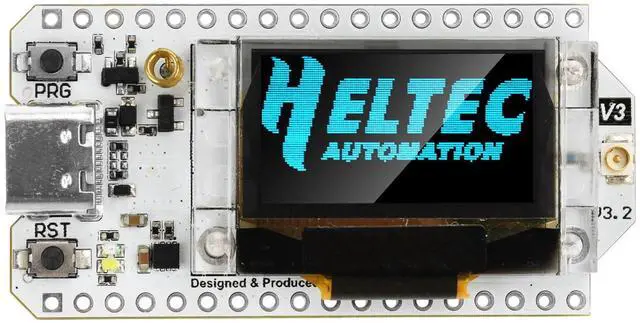

Large AntennaThis ESP32 LoRa V3 Development Board With the large antennamore stable, meeting the needs of more scenarios.
Microprocessor: ESP32-S3FN8 (Xtensa 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240 MHz).SX1262 LoRa node chip

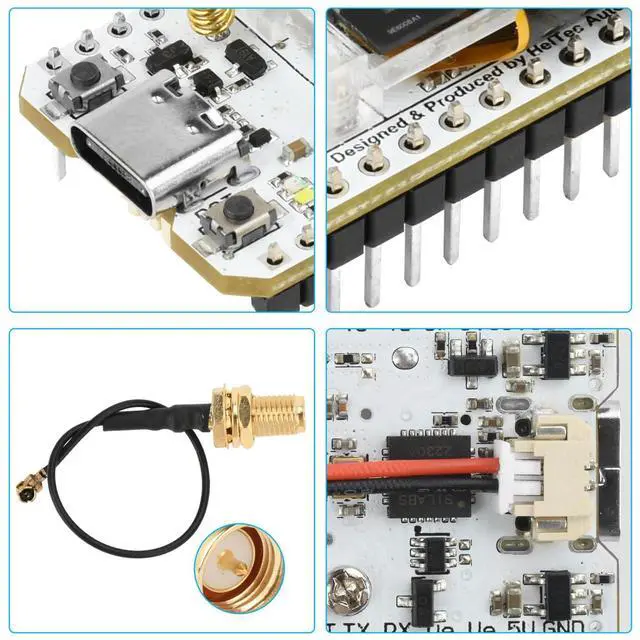

Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
ESP32 lora Module integrated Wi-Fi, LoRa, BT three network connections, onboard Wi-Fi, BT dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use

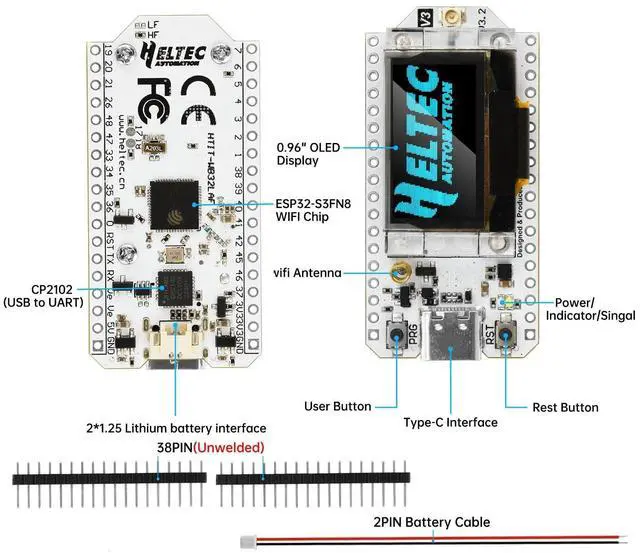

Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.
Integrated CP2102 Type C to serial port chip, convenient for program downloading, debugging information printing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

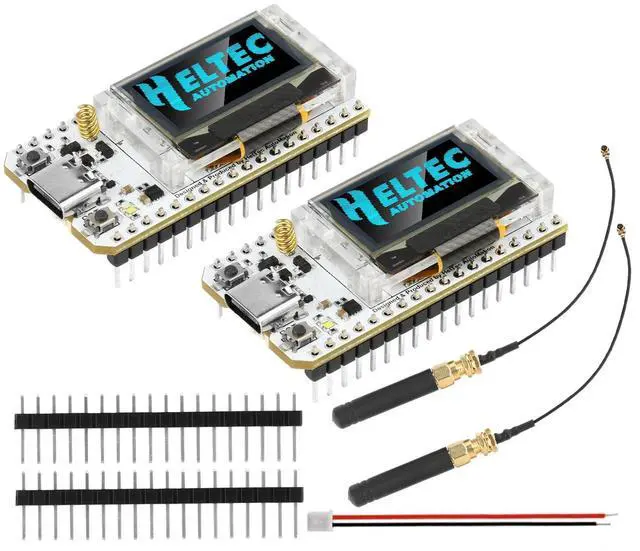

LoRa V3 ESP32 LoRa V3 Development Board, SX1262 ESP32 V3 Dual-core OLED Type C WI-FI Kit OLED Display ESP32 Module CP2012 863-928 MHz for IOT Meshtastic Arduin0, 2-Pack
Learn more about the Detailed Specifications
Additional Information
First Listed on Newegg
July 09, 2025
There are no reviews yet.
