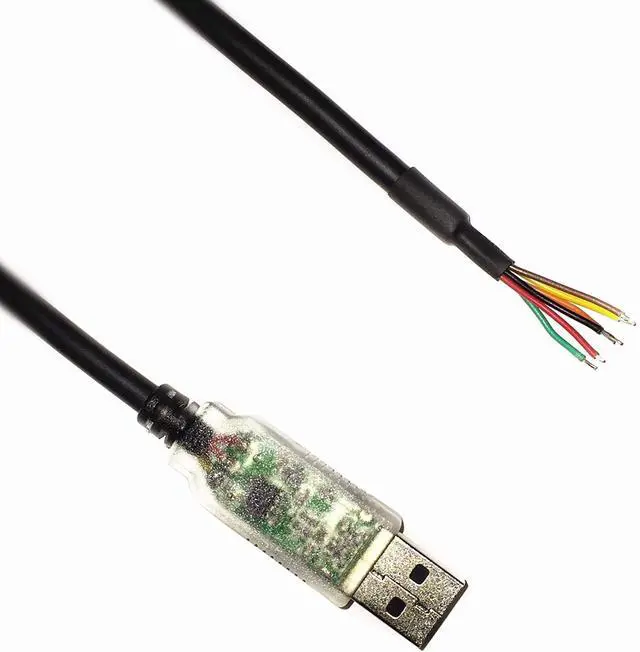

EZSync USB to RS485 Serial Converter Cable with TX/RX LEDs, Wire End, 1.5m, USB-RS485-WE Compatible, EZSync010
- This cable is exclusively compatible with the RS485 protocol. To find a device that supports both RS485 and RS422, please search for "EZSync2885" or "EZSync201".
- USB-RS485 converter cable provides a USB to RS485 serial interface with customized end connectors. Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable.
- Featuring an EIA/TIA-485 communication interface with low power consumption, the overmolded chipset provides a single-chip solution for USB to asynchronous serial data transfer. Compatible with all Windows and Mac operating systems.

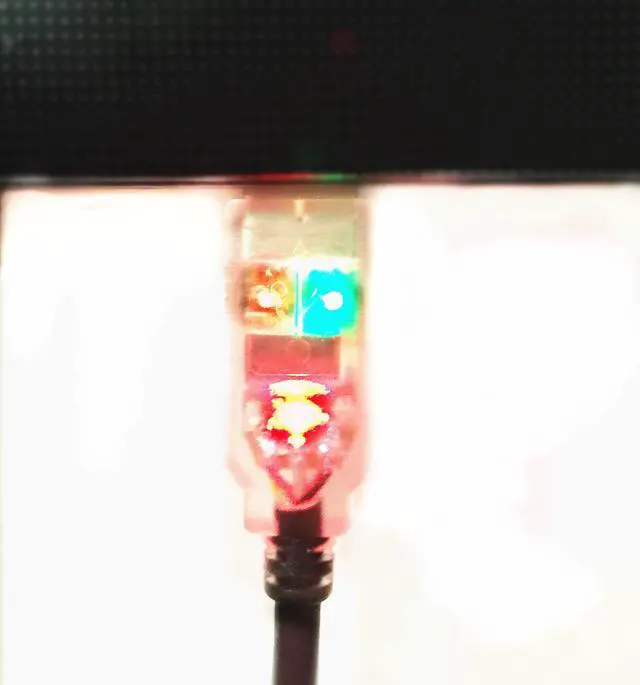

- The transparent USB connector features visual indicators for power and Tx/Rx data traffic, via LED lights.

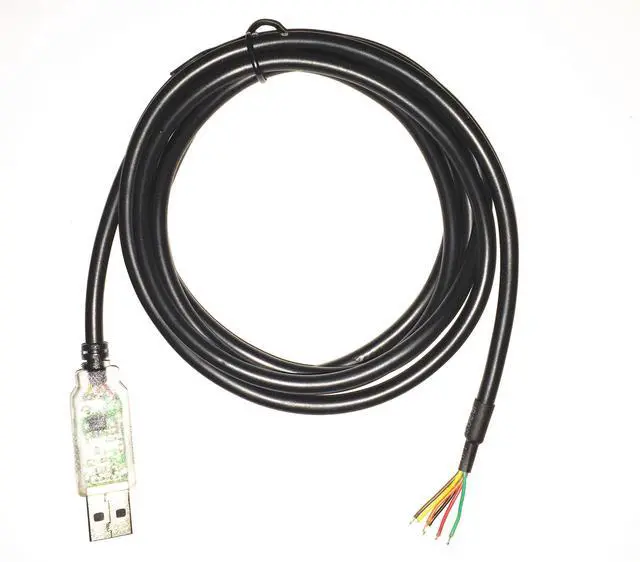

- Cable dimensions: 6 feet or 1.8m length, 5.0mm diameter. Wire gauge: 6 wires, 0.16mm x7 strands each. For additional technical information, please refer to the datasheet in the "Technical Specification" section of this page.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

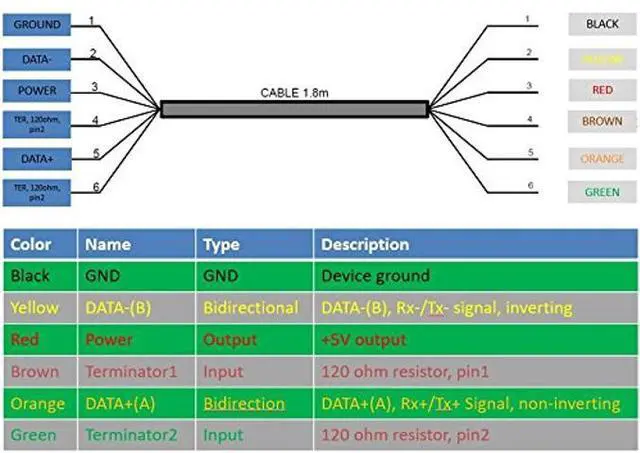

Every EZSync cable is built to last for years with high-quality industrial-grade materials. Compatible with all Windows and Mac operating systems, including the latest versions of Windows 10 and Mac OS X 10.12 (Sierra), the USB-RS485 cable is a USB to RS485 levels serial UART converter cable, featuring USB to serial UART interface IC device which manages all USB signaling and protocols. Offering a fast and simple connection solution, this cable allows devices with an RS485 interface to be connected to USB. The cable features 6 output ports: GND (Black), Data- (Yellow), 5vPower (RED), Terminator1 (Brown), Data+ (Orange), Terminator 2 (Green), and includes a 120 ohm resistor connected between Terminator 1 and Terminator 2.
