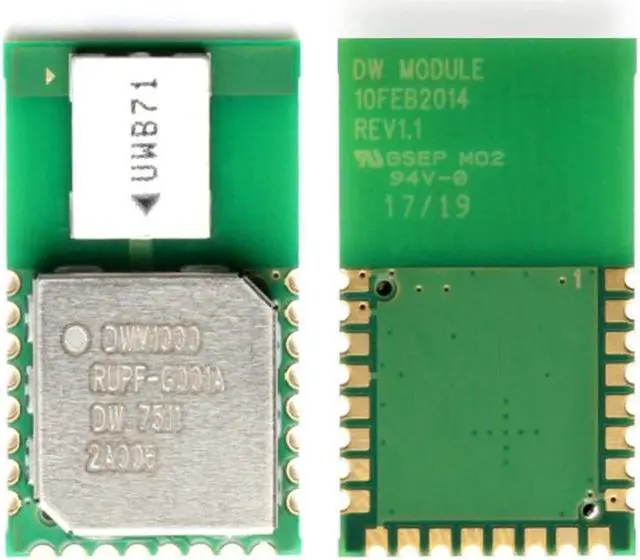

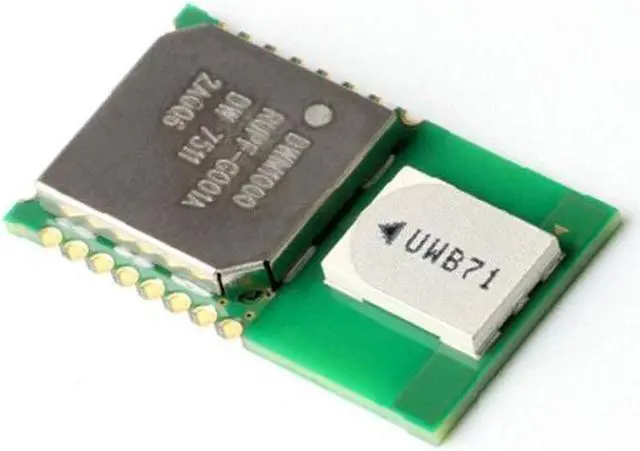

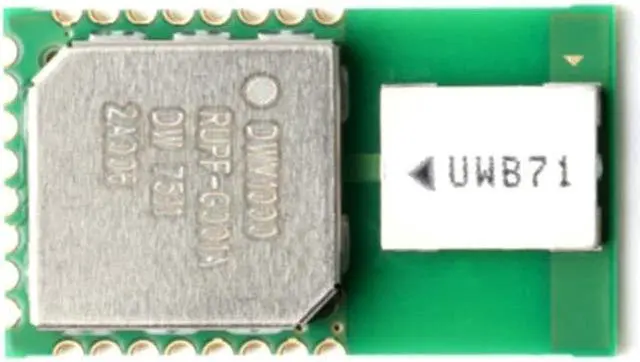

Taidacent UWB DWM1000 Positioning UWB Positioning Module Ultra Wideband Indoor Positioning Module Ultra Wideband Location
- UWB technology is a wireless carrier communication technology that uses a frequency bandwidth above 1 GHz.
- It does not use a sinusoidal carrier, but uses nanosecond-level non-sine wave narrow pulses to transmit data, so it occupies a large spectrum range.
- Although it uses wireless communication, its data transmission rate can reach hundreds of megabits per second or more.
- Compliant with IEEE 802.15.4-2011 UWB
- Supports 4 RF bands from 3.5 GHz to 6.5 GHz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Main features:
Compliant with IEEE 802.15. 4-2011 UWB
Supports 4 RF bands from 3.5 GHz to 6.5 GHz
Programmable transmitter output power
Fully coherent receiver, maximum range and accuracy
Designed to comply with FCC and ETSI UWB spectrum masking
Power supply voltage 2.8 V to 3.6 V
Low power consumption
110 Kbps, 850 Kbps, 6.8 Mbps data rate
For high data throughput applications, the maximum packet length is 1023 bytes
Integrated Mac support
Support two-way ranging and time difference
SPI interface with the host processor

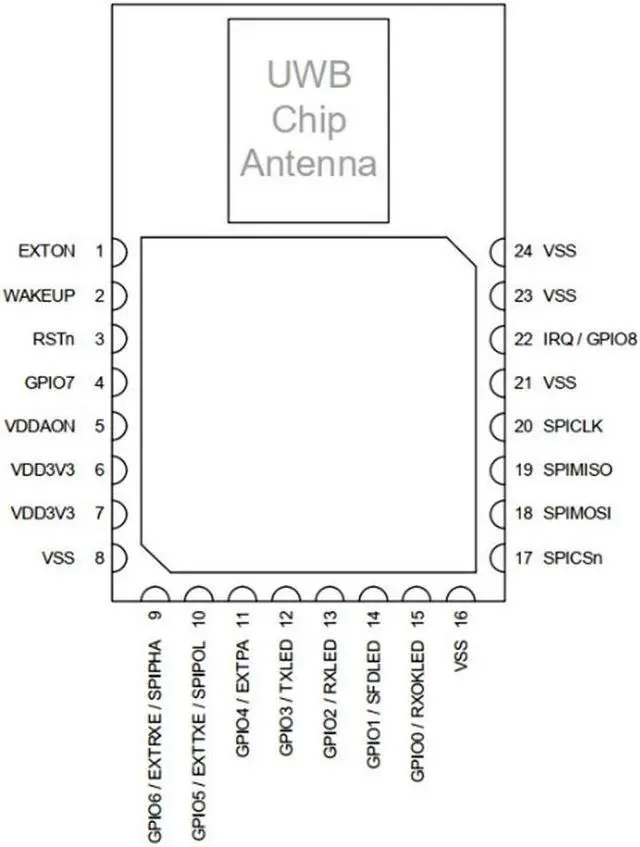

23 mm x 13 mm x 2.9 mm 24-pin side slot package
Main advantages:
Simplify integration without RF design
Mark the precise location of objects to increase business efficiency cut costs
Extended communication range minimizes the infrastructure required in RTL
High multipath fading immunity
Supports very high label density in RTL
Low cost for cost-effective solutions
Low power consumption reduces the need to replace batteries and reduces system life cost
Application field:
An accurate real-time positioning system (RTL) that uses a two-way ranging or time difference scheme in various markets.
Location-aware wireless sensor network (WSN)
Compliant with IEEE 802.15. 4-2011 UWB
Supports 4 RF bands from 3.5 GHz to 6.5 GHz
Programmable transmitter output power
Fully coherent receiver, maximum range and accuracy
Designed to comply with FCC and ETSI UWB spectrum masking
Power supply voltage 2.8 V to 3.6 V
Low power consumption
110 Kbps, 850 Kbps, 6.8 Mbps data rate
For high data throughput applications, the maximum packet length is 1023 bytes
Integrated Mac support
Support two-way ranging and time difference
SPI interface with the host processor
23 mm x 13 mm x 2.9 mm 24-pin side slot package
Main advantages:
Simplify integration without RF design
Mark the precise location of objects to increase business efficiency cut costs
Extended communication range minimizes the infrastructure required in RTL
High multipath fading immunity
Supports very high label density in RTL
Low cost for cost-effective solutions
Low power consumption reduces the need to replace batteries and reduces system life cost
Application field:
An accurate real-time positioning system (RTL) that uses a two-way ranging or time difference scheme in various markets.
Location-aware wireless sensor network (WSN)
