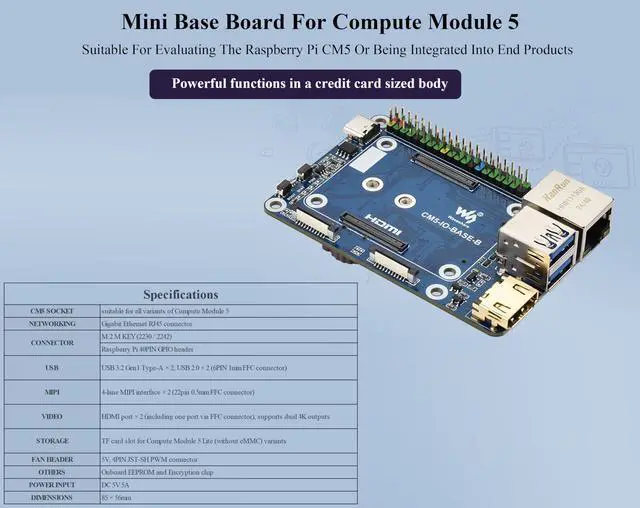

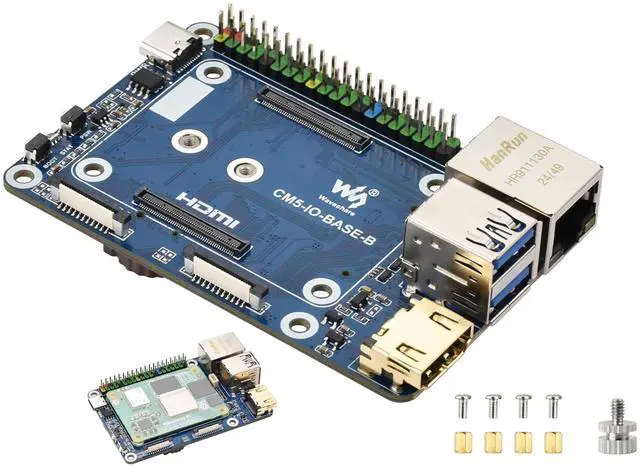

Mini Base Board (B) Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM and Encryption Chip, Compact Design with 4xUSB, Color-Coded 40PIN GPIO Header, 2xMIPI, M.2 M Key PCIe Interfaces,etc
- Mini Base Board (B) for Compute Module 5, suitable for evaluating the Compute Module 5 or being integrated into end products. Onboard EEPROM And Encryption Chip

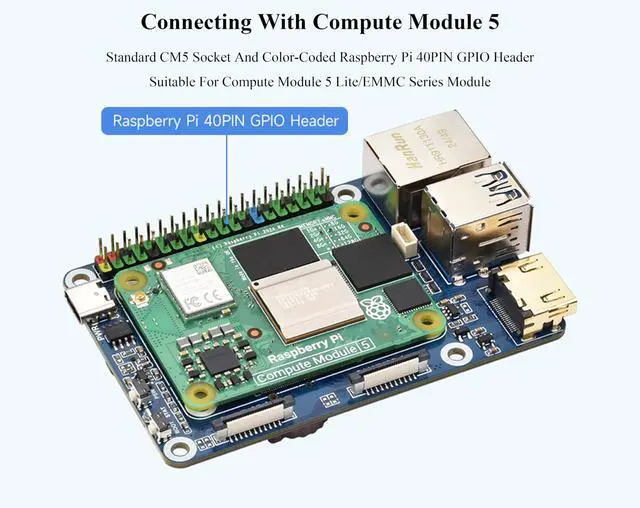

- Connecting with Compute Module 5, standard CM5 socket and color-coded Pi 40PIN GPIO header, suitable for Compute Module 5 Lite/eMMC series module

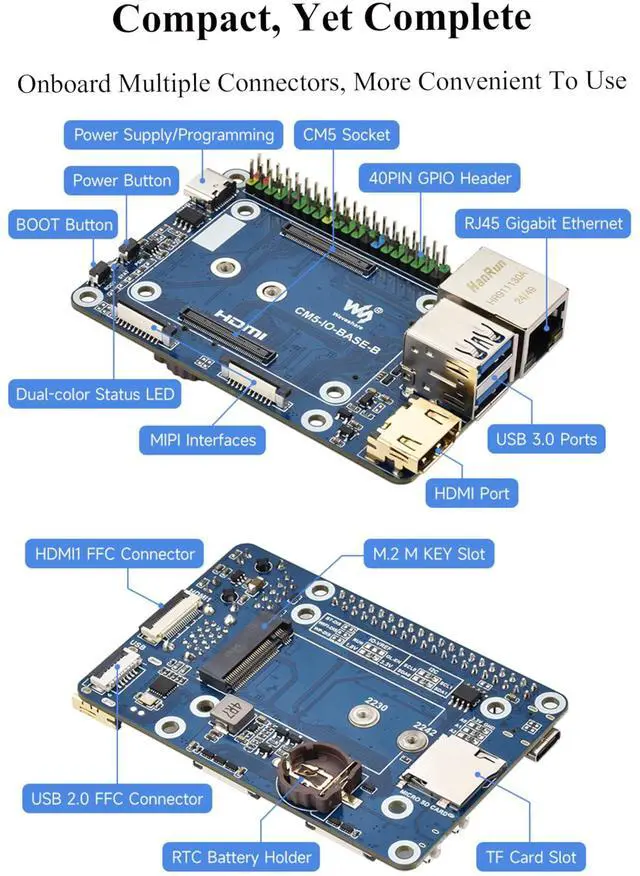

- With powerful features are integrated into a compact design, it is only the size of a bank card. Onboard multiple connectors, more convenient to use. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users
- with Gigabit Ethernet RJ45 connector for Networking. M.2 M KEY: Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive
- HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video. Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5mm FFC connector)
- Do not plug or unplug any device other than USB and HDMI when the device is powered on. D
+
+
Overview
Specs
Reviews
Mini Base Board (B) Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM and Encryption Chip, Compact Design with 4xUSB, Color-Coded 40PIN GPIO Header, 2xMIPI, M. 2 M Key PCIe Interfaces, etc
