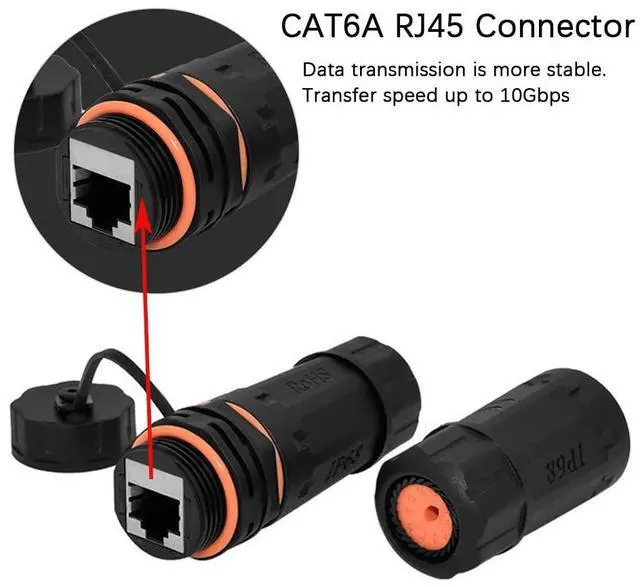

ANMBEST 5PCS Shielded RJ45 CAT6A Waterproof Connector IP68 Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Female to Female Outdoor Network Adapter with Waterproof Dustproof Cap Cover for Outdoor Network

The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6/6A patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.

Specifications

:
Number of cores: 8 PIN
Waterproof rating: IP68
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD ( 7.514. 5) mm
Case wall thickness: Threaded
type: >2mm, through-hole type: 0.3 ~12mm
Connector transmission classification: CAT6A
Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds
Electrical parameters:
Rated current: 2.4A
Rated voltage: 250VAC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10m
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:

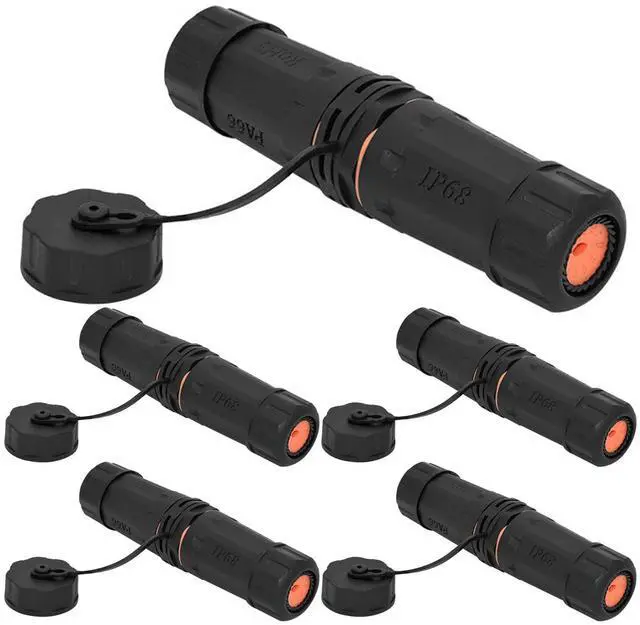

5x Waterproof CAT6A RJ45 Connector
5x Waterproof/Dust Cap Cover
