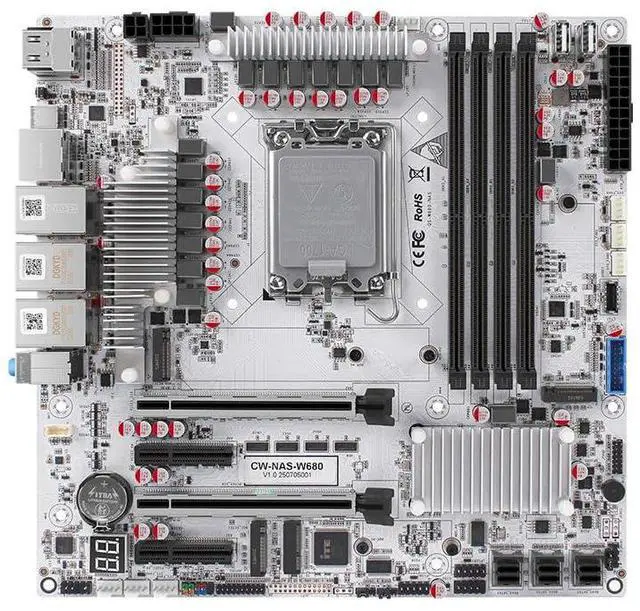

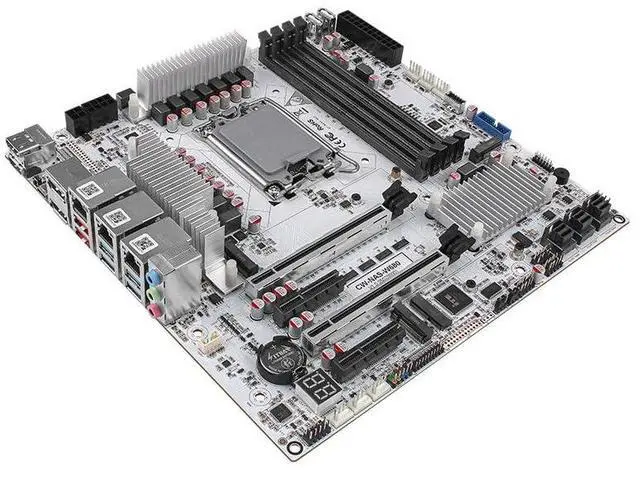

HKUXZR W680 12-Bay NAS Server M-ATX Motherboard(LGA1700, 12th/13th/14th Gen. Desktop Processor), 4* U-DIMM DDR5 MAX 4 * 32GB, 3* M.2 NVMe, 12* SATA 3.0, 10G RJ45, PCI-E x16, Type-C 10Gbps, 8K Display

244mmx244mm standard M-ATX board type ATX24+8Pin+4Pin power supply
Intel W680 chipset workstation/NAS server level commercial platform stable choice
LGA1700 slot compatible with Intel 12/13/14 generation CPU processors
4 U-DIMDR5 slots support pure ECC server memory 560OMHz backward compatibility
1 10G electrical port, Marvel AQC113CS chip with 10 Gigabit network speed
Dual 2.5G Ethernet ports Intel i226-V/i2 26-LM supports vPro remote management function

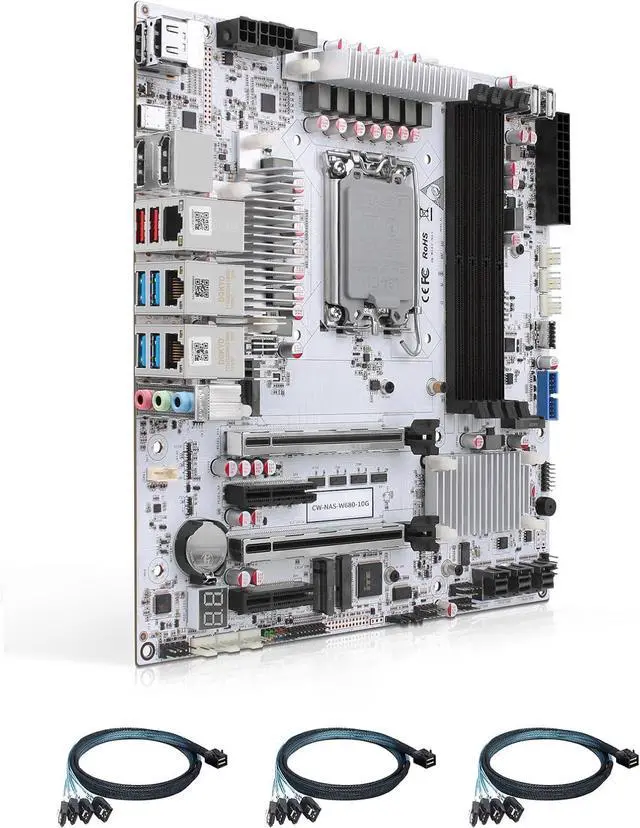

3 SFF-86432 native and 1 ASM1164 converted to a total of 12 SATA
3 M. 2 slots, 2 PCle 4.0 x4 signals, 1 PCle 3.0 x4 signal
2 PCI-Ex16 slots, single use Gen5x16 signal/dual use Gen4x8 signal simultaneously
1 Type-C (USB 3.2 +DP) with a theoretical speed of 10G and support for display
Dual HDMI 2.0 +Dual DP 1.4 a+Type-C (DP signal), a total of five display interfaces
2 USB 3.2 (10G) +2 USB 3.2 (10G) +2 USB 2.0, totaling 6 USB interfaces
Built in 1 USB 3.0 female socket+1 Type-E female socket
1 ALC897 audio chip supports microphone input and audio output -8-layer white PCB
Main board features
Full protection (supports all USB, audio, and network interfaces)
PCI-Ex16 signal supports automatic splitting into 2 Gen4x8 signals+Gen4x8 signals
Supports Intel 12/13/14 generation LGA1700 desktop CPU
processor
Note: The vPro feature requires an i5-1X500 or higher processor to be used. The F series does not support it and requires a graphics card to support it
Note: By default, it supports 125WTDP processors, and it is not recommended to use K-series processors
Note: It is recommended to use processors with T, such as 13500T, which have low power consumption and are suitable for long-term use
Supports 4 ordinary desktop UDIMM-DDR5 memory supports pure ECC server memory error correction technology Memory
4 * U-DIMM DDR5 quad channel memory slot
DDR5 supports 5600MHz by default (note: 12th generation processors only support 4800MHz)
Single memory maximum capacity 32GB, four memory maximum 128GB storage
2 * M. 2 NVMe PCIe 4.0 x4 signals/1 * M. 2 NVMe PCIe 3.0 x4, a total of 3 M. 2
3 * SFF-8643 transposons SFF-8643-1 and 2 are native signals, SFF-8643-3 is an ASM1164 extended signal
1 * MARVELLAQC113CS 10G RJ45 Ethernet card
1 * Inteli226-V 2.5G RJ45 electrical port
1 * Intel i226-LM 2.5G RJ45 electrical port (supports vPro) remote management function
CPU decides to integrate core display
display
2 HDMI 2.0 interfaces support 4K 4096 x2160 @ 60Hz
Two DP 1.4 interfaces support 8K 7680 × 4320@60Hz
1 Type-C interface supports 8K 7680x 4320 @ 60Hz
2 PCI-E × 16 slots support array cards/graphics cards/network cards
expand
Single slot PCIe 5.0 x16 signal 2 cards, fully inserted to transform PCIe 4.0 x8 signal
Two PCIe 3.0 x4 slots support x4 signal network cards and expansion cards
power supply
ATX24Pin (motherboard power supply) /ATX8Pin+ATX4Pin (CPU enhanced power supply)

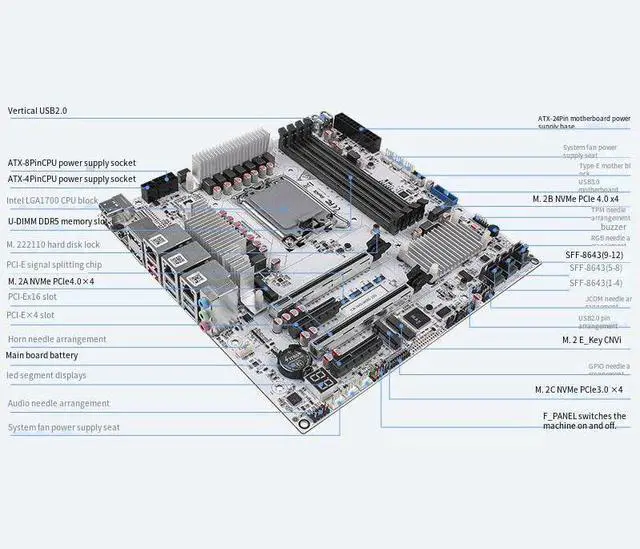

Onboard interface

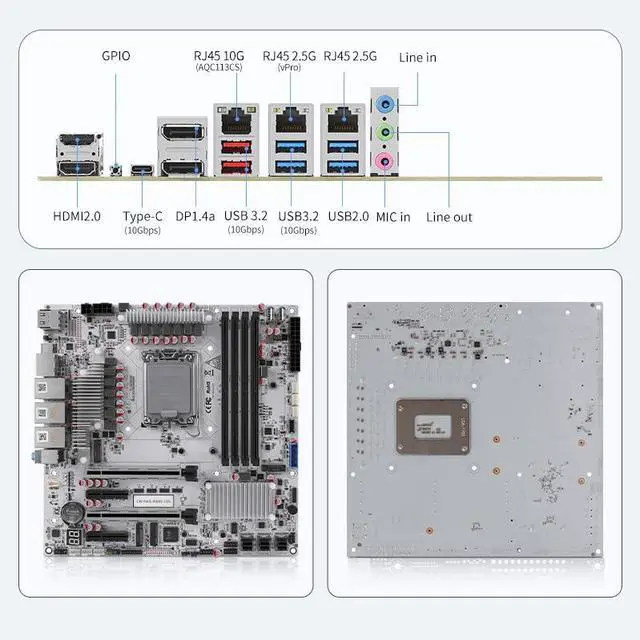

2 * Vertical USB 2.0 1 * ATX-8PinCPU power supply socket -1 * ATX-4PinCPU power supply socket (CPU enhanced power supply) -1 * LGA1700 CPU socket -4 * UDIMM DDR5 memory slot -4 * PCIl-E signal splitting chip -2* M. 2 NVMe PCle 4.0 x4 -2 * PCl-Ex16 slot -2 * PCI-Ex4 slot -1 * Horn needle arrangement -1 * Mainboard battery -1 * LED digital tube -1 * Audio pin arrangement -6 * System fan power supply socket -1 * CPU fan power supply socket -1 * ATX-24Pin motherboard power socket -1 * Type-E female seat -1 * USB 3.0 female socket -1*M. 2NVMe PCle 3.0 x4 -1 * TPM pin arrangement -1 * Buzzer -1 * RGB needle arrangement -3*5FF-8643 -1 * JCOM needle set -1 * USB 2.0 pin arrangement -1*M. 2E_Key CNViWiFi -1 * GPIO pin bank -1 * F_PANEL power on/off pin arrangement -2*HDMI 2.0 -1 * GPIO button -1 * Type-C (USB 3.2 Gen2 10Gbps theoretical speed) -2*DP 1.4 a IO panel -1 * 10G RJ45 Ethernet port -2 * 2.5G RJ45 Ethernet port -2 * USB 3.2 red (Gen2 10Gbps theoretical speed) -2 * USB 3.2 Blue (Gen2 10Gbps theoretical speed) -2 * USB 2.0 Blue -1 * Blue (Line in audio input) /1 * Green (Line out audio output) /1 * Red (MIC in microphone)
structure
M-ATX specifica
