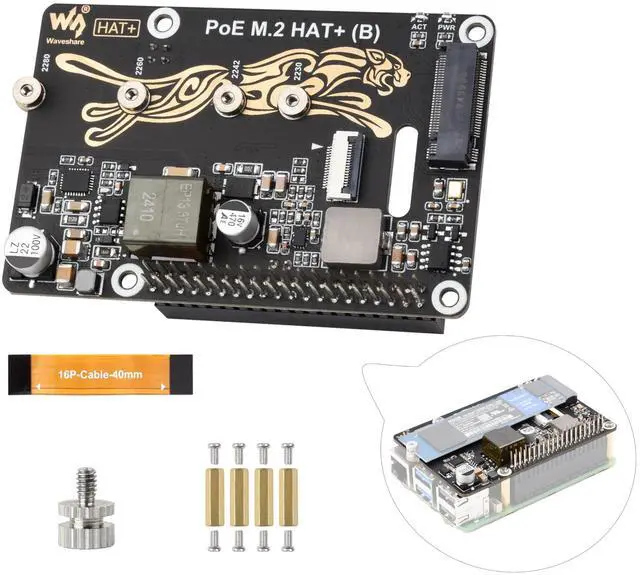

Main image of Pi 5 PCIe to M.2 HAT with PoE Function Adapter Board Compatible with Raspberry Pi 5, Combination of PoE and PCIE to M.2 for Pi5, Supports NVMe 2230/2242 / 2260/2280 Size M.2 Solid State Drive

Alt view image 2 of 5 - Pi 5 PCIe to M.2 HAT with PoE Function Adapter Board Compatible with Raspberry Pi 5, Combination of PoE and PCIE to M.2 for Pi5, Supports NVMe 2230/2242 / 2260/2280 Size M.2 Solid State Drive

Alt view image 3 of 5 - Pi 5 PCIe to M.2 HAT with PoE Function Adapter Board Compatible with Raspberry Pi 5, Combination of PoE and PCIE to M.2 for Pi5, Supports NVMe 2230/2242 / 2260/2280 Size M.2 Solid State Drive

Alt view image 4 of 5 - Pi 5 PCIe to M.2 HAT with PoE Function Adapter Board Compatible with Raspberry Pi 5, Combination of PoE and PCIE to M.2 for Pi5, Supports NVMe 2230/2242 / 2260/2280 Size M.2 Solid State Drive

Alt view image 5 of 5 - Pi 5 PCIe to M.2 HAT with PoE Function Adapter Board Compatible with Raspberry Pi 5, Combination of PoE and PCIE to M.2 for Pi5, Supports NVMe 2230/2242 / 2260/2280 Size M.2 Solid State Drive

Shop All Astro Gaming Products | Visit To the Internet media Store

Pi 5 PCIe to M.2 HAT with PoE Function Adapter Board Compatible with Raspberry Pi 5, Combination of PoE and PCIE to M.2 for Pi5, Supports NVMe 2230/2242 / 2260/2280 Size M.2 Solid State Drive

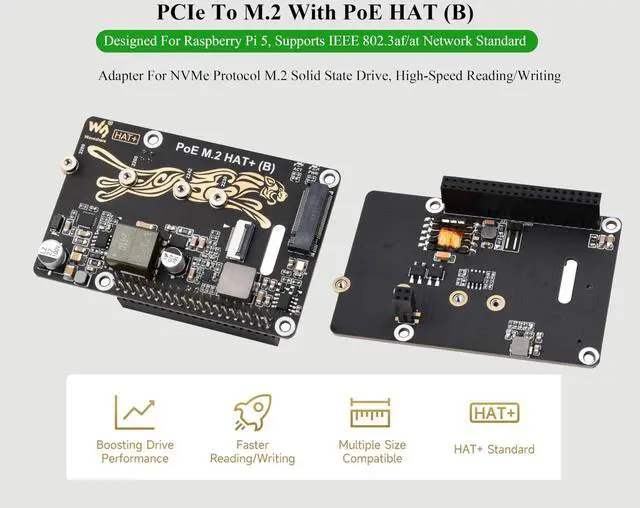

The POE M.2 HAT+(B) is a combination of Power over Ethernet (PoE) and PCIE to M.2 which is compatible with Raspberry Pi 5. And it supports the IEEE 802.3af/at networking standard.

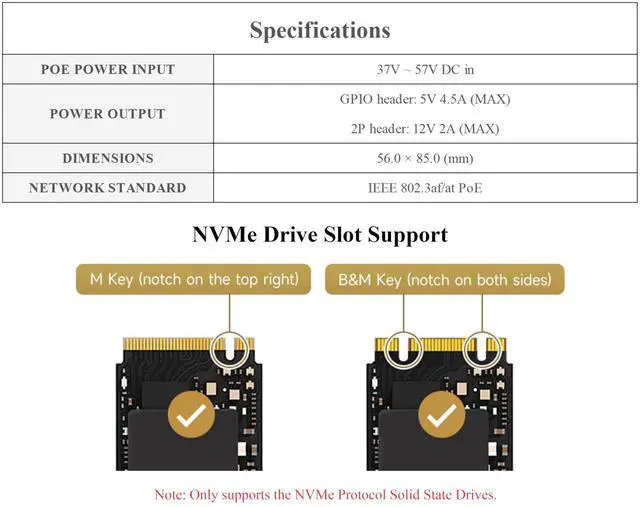

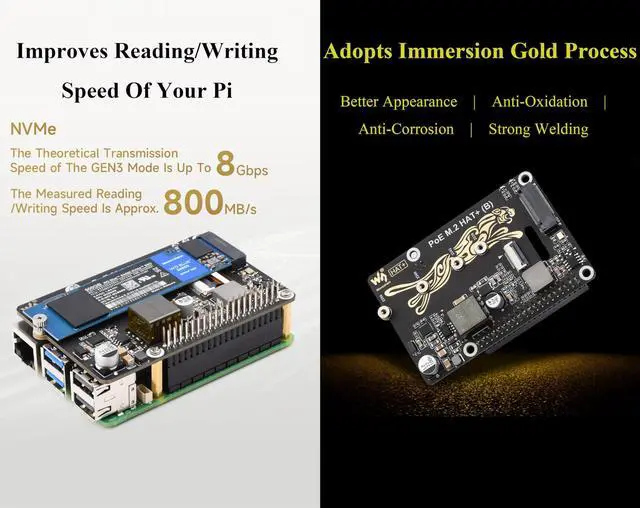

Support NVMe Drive Protocol, Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive. Supports NVMe protocol M.2 interface hard drives, featuring high-speed read and write, and high work efficiency.
Power Over Ethernet, providing both network connection and power supply for your Raspberry Pi in one cable.
Onboard 5V & 12V header outputs, 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power), be able to power extra devices while providing stable power to RPi.
Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible.
Comes with Online Tutorial Usage Guide and Online

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The POE M. 2 HAT+ (B) is a combination of Power over Ethernet (PoE) and PCIE to M. 2 which is compatible with Raspberry Pi 5. And it supports the IEEE 802.3 af/at networking standard. ^^ Support NVMe Drive Protocol, Compatible With 2230 / 2242 / 2260 / 2280 Size M. 2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive. Supports NVMe protocol M. 2 interface hard drives, featuring high-speed read and write, and high work efficiency. ^^ Power Over Ethernet, providing both network connection and power supply for your Raspberry Pi in one cable.

^^ Onboard 5V & 12V header outputs, 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power), be able to power extra devices while providing stable power to RPi. ^^ Onboard operational indicator lights, the PWR is continuously lit when powered on, and the ACT blinks during read and write operations, making the operational status easily visible. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/hgo1h
