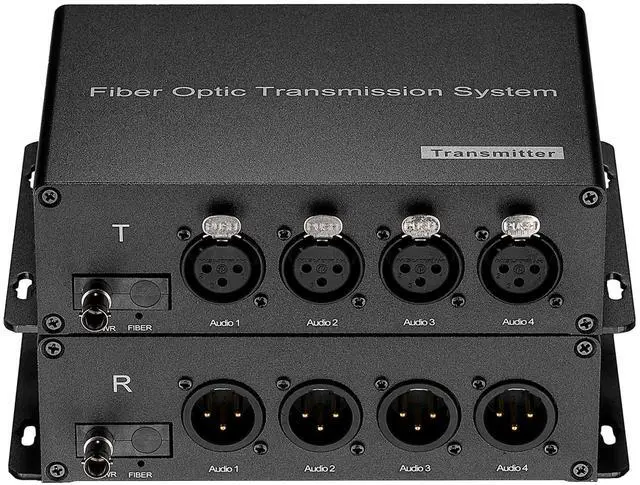

Hebbeko 4Port XLR Audio Fiber Converter,Broadcast Grade Balanced 3Pin XLR Audio Over Fiber Extender,ST Optical Transceiver,Singlemode 20Km Multimode 500m Professional Crystal Clear Sound,A Pair

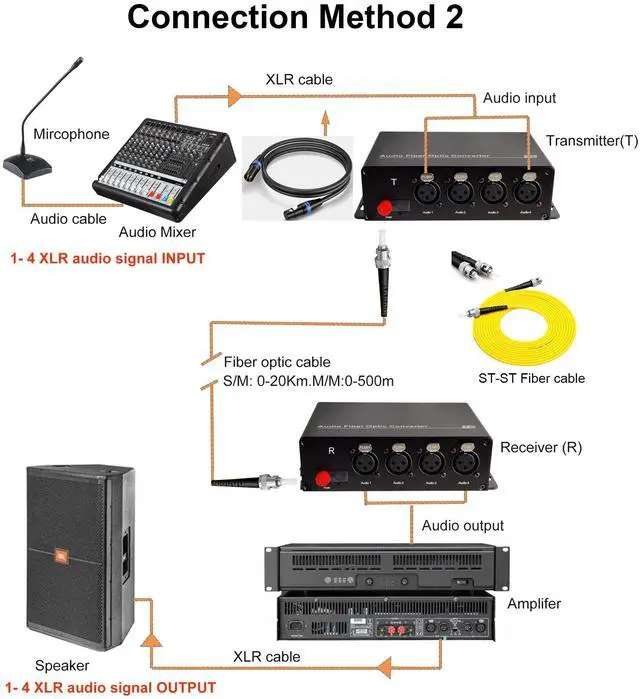

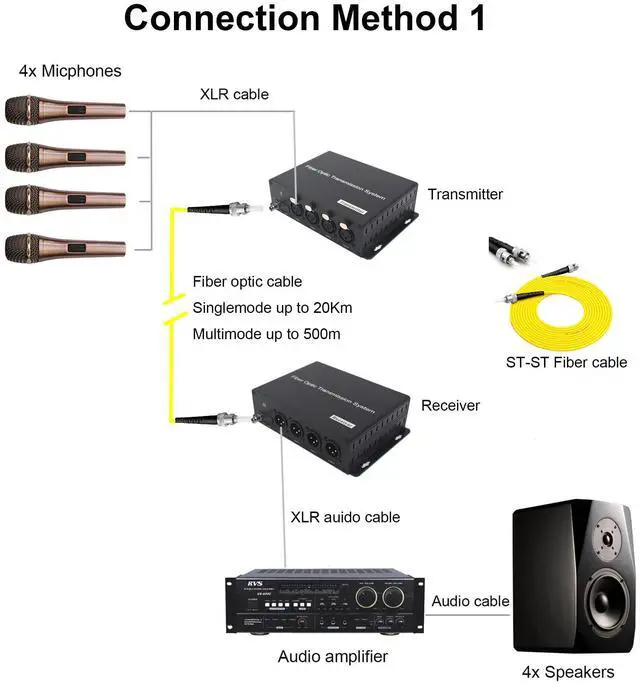

- FunctionThis XLR Audio over fiber extender can extend 4 channels of Balanced XLR Broadcast level high quality Audio over an optical fiber cable to far end. It allows 4 XLR audio device synchronous transmission, No debugging required. 4 XLR Audio signal is transmitted from T (TX) in the direction of R (RX)
- Universal for Fiber TypesThe unit can work on both universal single-mode and universal multi mode optical fiber cable, Long distance transmission: Singlemode single fiber up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters). with ST optical interface
- Crystal clear sound, No Loss, No DelayProfessional Quality ,Pure and Clean fiber optic audio signal transmission
- Wide ApplicationsTypically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations
- Plug and PlayNo need to set up ,Simply plug in an Optical S
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Optical Port: Optical
connector:
STWavelength: 1310nm/1550nm.
Transmitting optical power: more than -7db.
Receiving sensitivity: more
than -24dbFiber: single fiber multimode (MM) or single mode (SM).
Transmission range: 0-20km for SM, 0-500meters for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5 /125u multimode.
XLR Audio Ports: Number of
Channels: 4Input
Connector: XLR (Female).
Output Connector: XLR (Male).
Pin wiring diagram: "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)Input /
Output Impedance: 600 Ohm.
Max input/output voltage: 4.0V p-p.
Signal level: 0.5 -4Vp-p.
Sampling frequency: 192 KHz.
Audio A/D sampling: 24
BitSNR: 100dB. Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20 s)
Differential mode: 6KV.
General Spec: Power
Consumption: 8W.
Working temperature: -20C ~ +70C.
Relative Humidity: 0% ~ 95% (non-condensing).
MTBF: >100, 000 hours.
Installation: stand-alone. Support wide range working

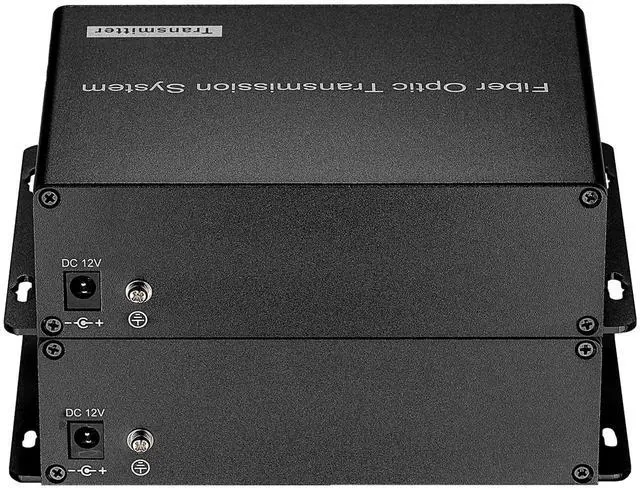

Voltage: AC100-240V 50/60Hz, DC12VPower plugUS/EU/UK/AU standard is optional.
Dimension: 167mm (L) 114mm (W) 45mm (H).
Package include: 1x Balanced XLR Audio Fiber Transmitter1x Balanced XLR Audio Fiber Receiver2x Power supply adapter (US standard) 1x FREE 3M ST-ST Fiber patch cord1x Manual.
connector:
STWavelength: 1310nm/1550nm.
Transmitting optical power: more than -7db.
Receiving sensitivity: more
than -24dbFiber: single fiber multimode (MM) or single mode (SM).
Transmission range: 0-20km for SM, 0-500meters for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5 /125u multimode.
XLR Audio Ports: Number of
Channels: 4Input
Connector: XLR (Female).
Output Connector: XLR (Male).
Pin wiring diagram: "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)Input /
Output Impedance: 600 Ohm.
Max input/output voltage: 4.0V p-p.
Signal level: 0.5 -4Vp-p.
Sampling frequency: 192 KHz.
Audio A/D sampling: 24
BitSNR: 100dB. Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20 s)
Differential mode: 6KV.
General Spec: Power
Consumption: 8W.
Working temperature: -20C ~ +70C.
Relative Humidity: 0% ~ 95% (non-condensing).
MTBF: >100, 000 hours.
Installation: stand-alone. Support wide range working
Voltage: AC100-240V 50/60Hz, DC12VPower plugUS/EU/UK/AU standard is optional.
Dimension: 167mm (L) 114mm (W) 45mm (H).
Package include: 1x Balanced XLR Audio Fiber Transmitter1x Balanced XLR Audio Fiber Receiver2x Power supply adapter (US standard) 1x FREE 3M ST-ST Fiber patch cord1x Manual.
