VSDISPLAY 12.3 Inch 2K LCD Screen 2400x900 with USB-C LCD Controller Board,as Extra Secondary Display Panel for PC/Laptop/Game Cabinet Monitor
- Specification12.3 inch stretched bar display 2400x900 2K LCD screen with USB-C interface lcd controller board;Brightness 250 cd/m (Typ.)
- Clear DisplayR support,12.3'' 2k lcd screen 2400x900,vivid and clarify display panel,enjoy better visual
- Lightweight & ThinOutline size 300 123.33.5 (HVD);display 291.6 109.35 (HV),save more space,easy to install
- ApplicationWidely usages,perfect for DIY project,fit for pc/laptop working,DIY pc case,car display,game monitor,replacement panel or extended display,meet your different request

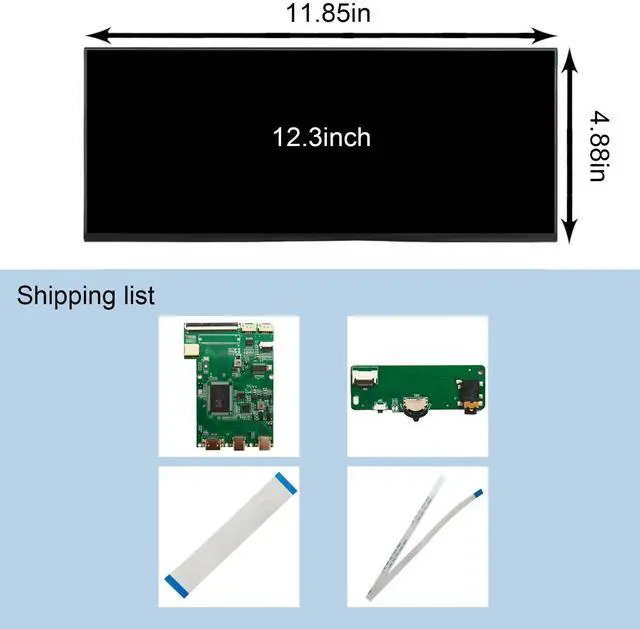

- Packing List1 USB-C LCD Controller Board VS-AP2K;1 12.3inch VS123T-01 2400X900 2K LCD Screen;1 Signal Cable;1 Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: USB C Control Board Work for
LCD ScreenInput Power Adapter: USB-C
connectorR: SupportCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput:
USB-COutput: eDP USB (max 500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 60.8 mm x 60.2 mm x 4mm 12.3" VS123GF-01 2400X900
LCD Screen: Display Mode ADS, Normally Black, TransmissiveResolution: 2400 (RGB) 900Outline
Size: 300 123.33.
5 (HVD) Display Area: 291.6 109.35 (HV)
Brightness: 250 cd/m (Typ.
)Contrast Ratio: 1500:1 (Typ. )
(TM) Viewing Angle: 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface Parallel LVDS (2 ch, 8-bit), 68 pins, FPC
Backlight WLED
Input Voltage: 3.3V (Typ.
)Packing list: 1 USB-C LCD Controller Board VS-AP2K1 12.3 inch VS123T-01 2400X900 2K LCD Screen1 Signal Cable1
Keyboard With CableTips: All the products are tested before package and shipment, if any problem of product, please feel free to contact us
LCD ScreenInput Power Adapter: USB-C
connectorR: SupportCome In Standby Model When Not Input SignalStandby Model < 0.3WI nput:
USB-COutput: eDP USB (max 500mA)
Audio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 60.8 mm x 60.2 mm x 4mm 12.3" VS123GF-01 2400X900
LCD Screen: Display Mode ADS, Normally Black, TransmissiveResolution: 2400 (RGB) 900Outline
Size: 300 123.33.
5 (HVD) Display Area: 291.6 109.35 (HV)
Brightness: 250 cd/m (Typ.
)Contrast Ratio: 1500:1 (Typ. )
(TM) Viewing Angle: 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface Parallel LVDS (2 ch, 8-bit), 68 pins, FPC
Backlight WLED
Input Voltage: 3.3V (Typ.
)Packing list: 1 USB-C LCD Controller Board VS-AP2K1 12.3 inch VS123T-01 2400X900 2K LCD Screen1 Signal Cable1
Keyboard With CableTips: All the products are tested before package and shipment, if any problem of product, please feel free to contact us
