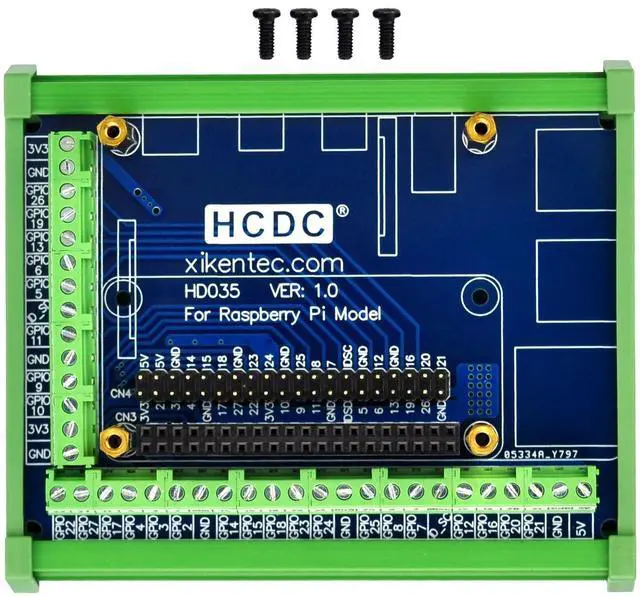

HCDC Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W Terminal Block Module - Green, Screw Connector, Nylon Material, DIN Rail Mount
- DIN Rail Mount Screw Terminal Block Adapter Module. With the adapter module you can easily extend Raspberry-Pi projects to industrial control applications. Applications for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W.
- Pitch 3.81mm/0.15" high quality screw terminal block, wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw. FR-4 fiber glass PCB, dual copper layers. CN3 and CN4 1:1 on board connected. CN3 connect Raspberry Pi board. CN4 Extension connector, you can use a FRC 40-pins wire connect to other devices.
- Module Dimensions: L 102mm x W 87mm x H 45.5mm, PCB Dimensions: L 100mm x W 72.5mm.

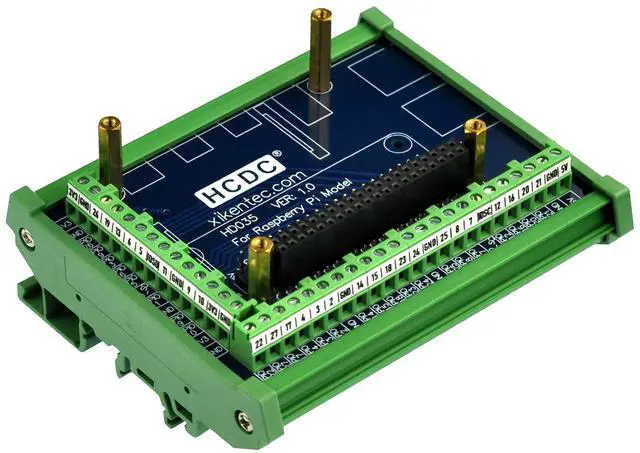

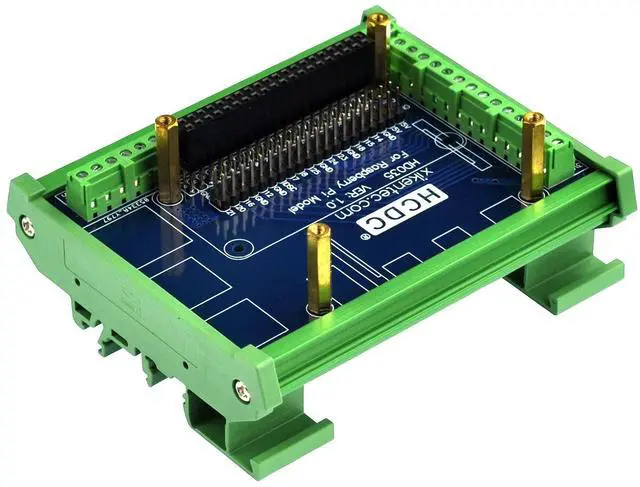

- High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- Note: the item not include Raspberry-Pi module and iron rail.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

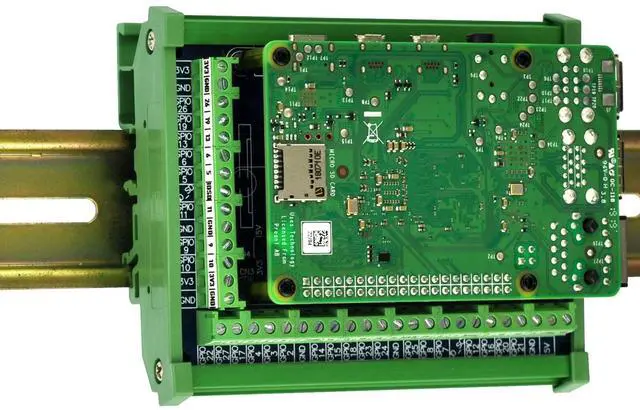

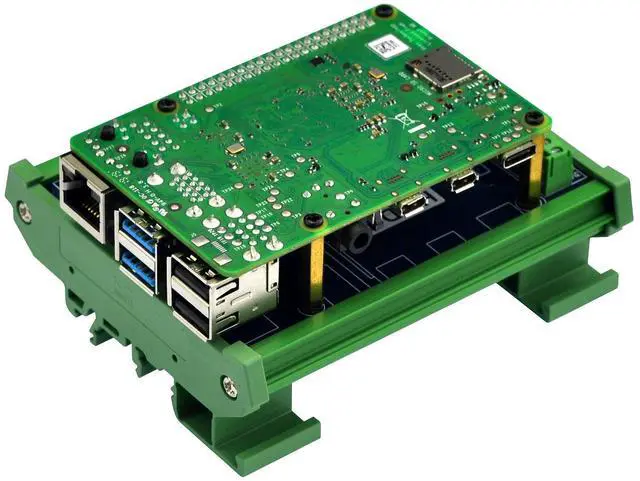

DIN Rail Mount Screw Terminal Block Adapter Module. With the adapter module you can easily extend Raspberry-Pi projects to industrial control applications. Applications for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W. ^^ Pitch 3.81 mm/ 0.15" high quality screw terminal block, wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw. FR-4 fiber glass PCB, dual copper layers. CN3 and CN4 1:1 on board connected. CN3 connect Raspberry Pi board. CN4 Extension connector, you can use a FRC 40-pins wire connect to other devices.
^^
Module Dimensions: L 102mm x W 87mm x H 45.5 mm, PCB
Dimensions: L 100mm x W 72.5 mm. ^^ High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
^^ Note: the item not include Raspberry-Pi module and iron rail.
^^
Module Dimensions: L 102mm x W 87mm x H 45.5 mm, PCB
Dimensions: L 100mm x W 72.5 mm. ^^ High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
^^ Note: the item not include Raspberry-Pi module and iron rail.
