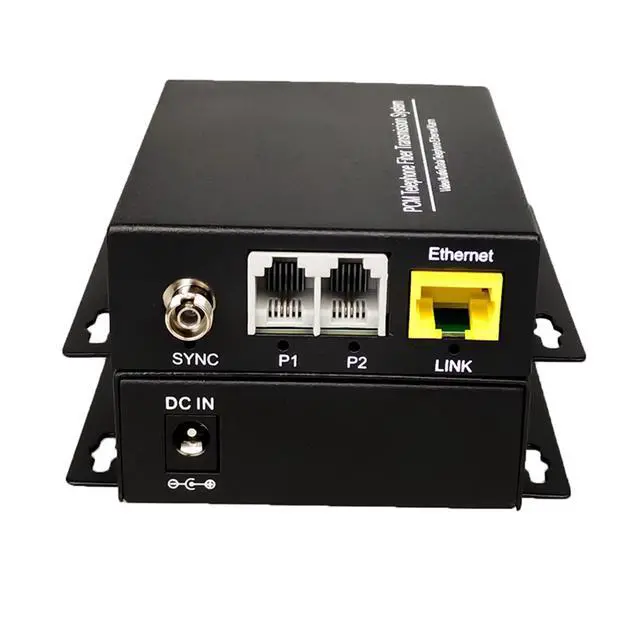

Main image of Hebbeko 2 Channels POTS Telephones and 10/100Mbps Ethernet Over Fiber Optic Extenders FC-FC Singlemode up 20Km Support Called id Ring and Fax No Delay A Set

Alt view image 2 of 5 - Hebbeko 2 Channels POTS Telephones and 10/100Mbps Ethernet Over Fiber Optic Extenders FC-FC Singlemode up 20Km Support Called id Ring and Fax No Delay A Set

Alt view image 3 of 5 - Hebbeko 2 Channels POTS Telephones and 10/100Mbps Ethernet Over Fiber Optic Extenders FC-FC Singlemode up 20Km Support Called id Ring and Fax No Delay A Set

Alt view image 4 of 5 - Hebbeko 2 Channels POTS Telephones and 10/100Mbps Ethernet Over Fiber Optic Extenders FC-FC Singlemode up 20Km Support Called id Ring and Fax No Delay A Set

Alt view image 5 of 5 - Hebbeko 2 Channels POTS Telephones and 10/100Mbps Ethernet Over Fiber Optic Extenders FC-FC Singlemode up 20Km Support Called id Ring and Fax No Delay A Set

Shop All Astro Gaming Products | Visit FortressTek Store

Hebbeko 2 Channels POTS Telephones and 10/100Mbps Ethernet Over Fiber Optic Extenders FC-FC Singlemode up 20Km Support Called id Ring and Fax No Delay A Set

This pots over fiber converter can extend POTS (Plain Old Telephone Service) landline phones and Network signal by a same fiber: 2 Independent POTS telephones lines and 1x 10/100Mbps Ethernet port over same fiber optic cable to far end, Optical interface is FC/UPC
Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber distance up to 20 km(12.4 miles), Compatible with Multimode fiber distance up to 200m
Support Called id, Ring and Fax function,Voice coding adopts PCM coding .Uncompressed and No Delay Transmission and Protocol Support, High fidelity speech
Professional high quality design and Excellent performance, Voice quality is pure clear and stable. Widely used in government units, electric power, public security, military, civil aviation, maritime, mining, highway and other college networks or public networks
LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system
Plug and play,No need

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Phone RJ11 port specifications: FXS interface (transmitter)
Telephone Channel: 2Ringing
receiving voltage: 75V (AC)
Ring frequency: 25Hz
or 50HzTwo-wire input impedance: 600FXO interface (receiver)
Telephone Channel: 2Ring
output voltage: 75V (AC)
Ring frequency: 50HzTwo-wire
input impedance: 600Optical
interface: FC/UPC
Ethernet
RJ45 port specifications:
Rate: 10M/100Mbps, full duplex, half
duplex fully adaptiveProtocol: IEEE 802.3 10Base-T Ethernet, IEEE 802.3 u. 100Base-TX/FX Fast Ethernet, IEEE 802.3 x Flow control, IEEE 802.1 q VLAN, IEEE 802.1 p Qos, IEEE 802.1 d
Spanning TreePhysical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)
Power supply: 1. Suitable working voltage AC100~240V, DC12V2. US/EU/UK/AU standard power supply adaptor is optional. Other indexWorking temperature -20C ~70CStorage temperature -40C ~85CMTBF >100, 000hoursProduct

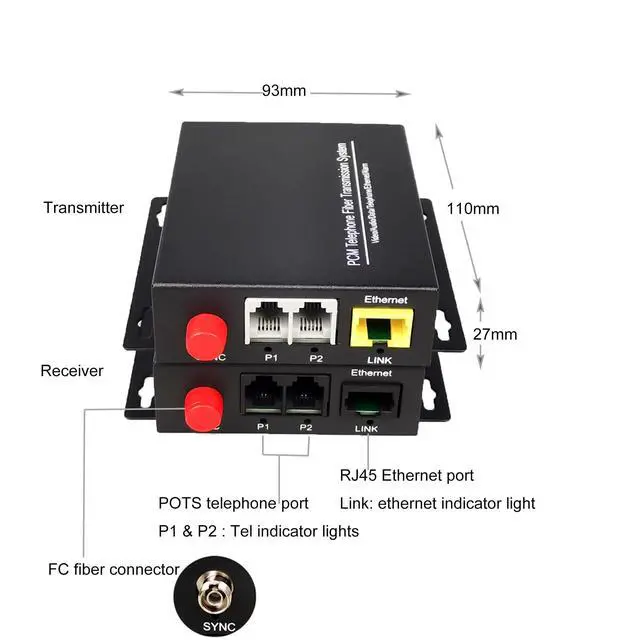

size: 110*93*27mm (LxWxH)
Weight: 1Kg/setPackage
include: 1. 1x 2 channel POTS telephone Transmitter2. 1x 2 channel POTS telephone Receiver3. 1x FREE 3m FC-FC Fiber patch cord4. 2 x External US standard power adapter5. User Manual
