UMLIFE 6PCS SP1848-27145 Peltier TEG Module Heatsink Semiconductor Thermoelectric Generator Cooler Cooling Power Plate Module 40 x 40 mm 150

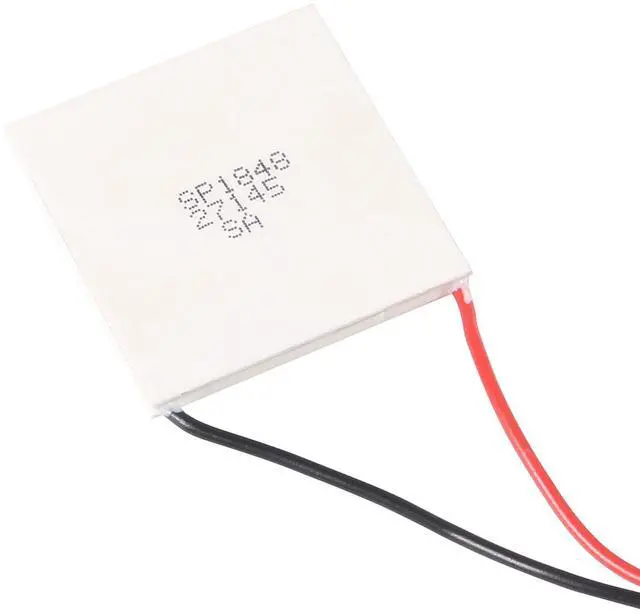

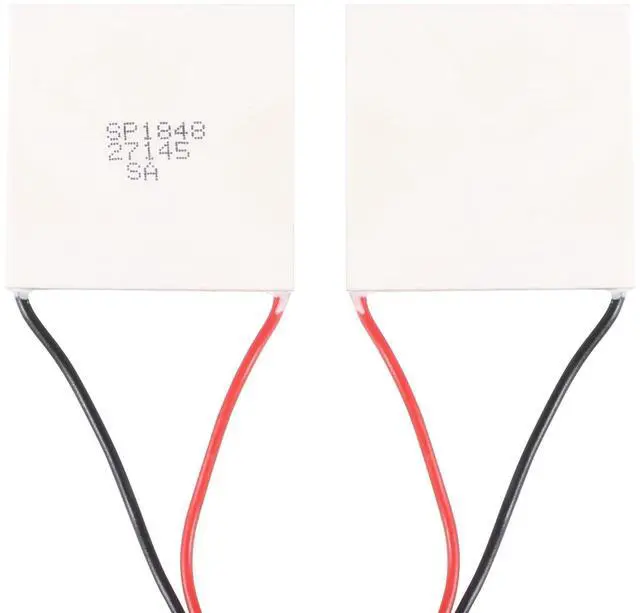

UsageOne side of TEG peltier(with word) is close to the heat dissipating surface (cold end), the non-word side is placed on the heat absorbing surface (hot end), the red line is connected to the positive pole, the black line is connected to the negative pole, and the power can be generated when there is a temperature difference.
High Reliability and Environmental FriendlySP1848-27145 thermoelectric peltier TEG module has no extra moving parts, easy to move, light weight, long life.High reliability and no pollution, this thermoelectric generator has high-temperature power generation components. The heating side is empty.
The Principle of Heat GenerationWhen the thermal energy is discharged from the low temperature side through the thermoelectric power generation piece, part of the thermal energy flowing into the device does not exotherm, and becomes electric energy in the device, and outputs DC voltage and current.
ParameterModel: SP1848-27145, Color: White, Lead Length: about

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

When there is a temperature difference between the two ends of the thermoelectric module, the modified module can generate continuous DC power, and the greater the temperature difference between the two ends of the module, the greater the DC power generated, and the thermoelectric conversion efficiency will also be improved. When in use, the flexible graphite thermal conductive paper with high temperature resistance and good thermal conductivity is pasted on both ends of the module, which can improve the thermal conductivity of the module and the efficiency and durability of the device.

Specifications

:
Model:
SP1848-27145Color: WhiteLead
Length: about

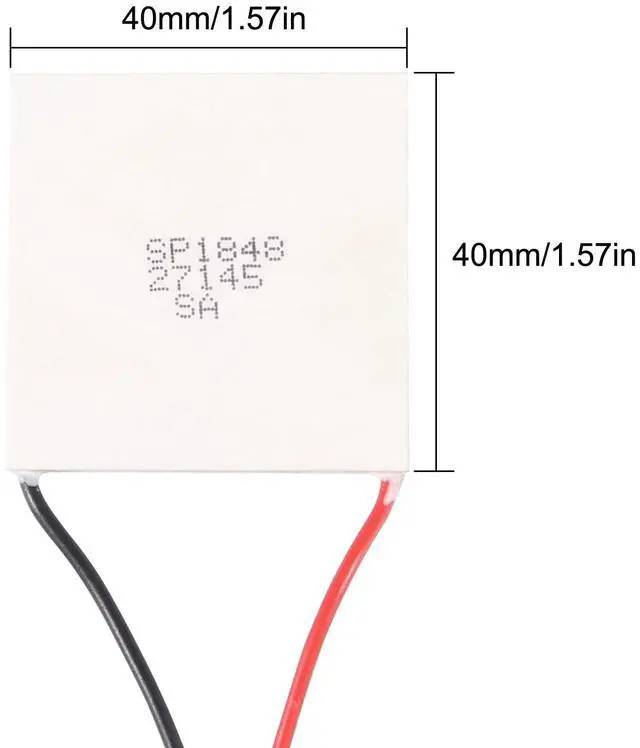

300mmSize: 4x4x 0.34 cm / 1.57 x 1.57 x 0.13 inchOptimum value (Z): 2.5 ~ 3x10-3W/20 Degree
Temperature Difference: Open-circuit Voltage 0.97V, Generated
Current: 225MA40 Degree
Temperature Difference: Open Circuit Voltage 1.8V, Generated
Current: 368MA60 Degree
Temperature Difference: Open Circuit Voltage 2.4V, Generated
Current: 469MA80 Degree
Temperature Difference: Open Circuit Voltage 3.6V, Generated
Current: 558MA100 Degree
Temperature Difference: Open Circuit Voltage 4.8V, Generated
Current: 669MAThe above values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current.
Product structure and composition: Single-layer double-sided ceramic packaging structureThe package is 704 silica gelInside is a semiconductor material made of bismuth telluride (Bi2Te3) Soldering agent is low temperature solder (Tin-Bismuth
Alloy)Note: 1. Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid. 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

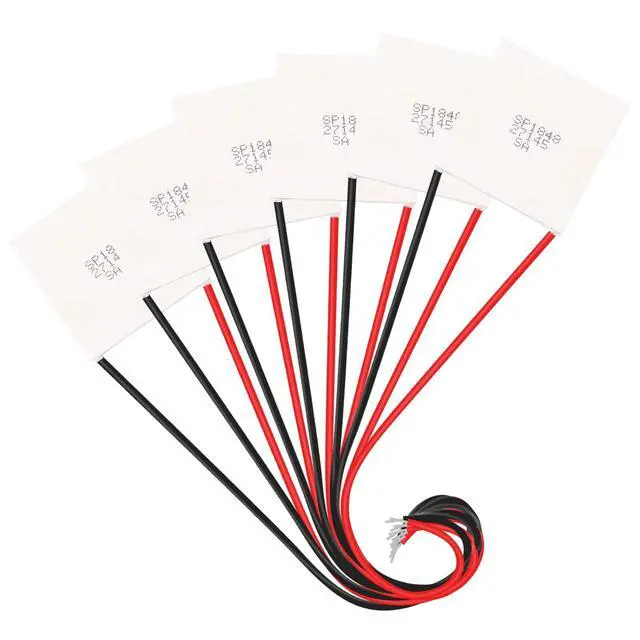

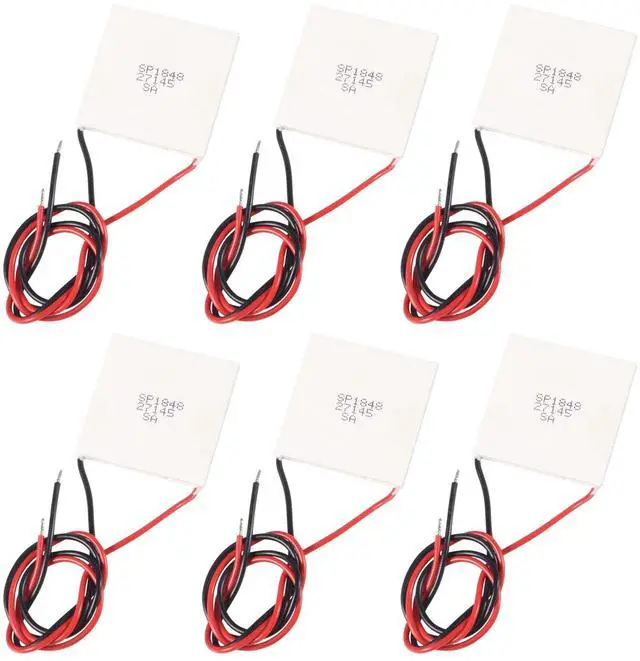

Package includes: 6 x Thermoelectric Power Module
