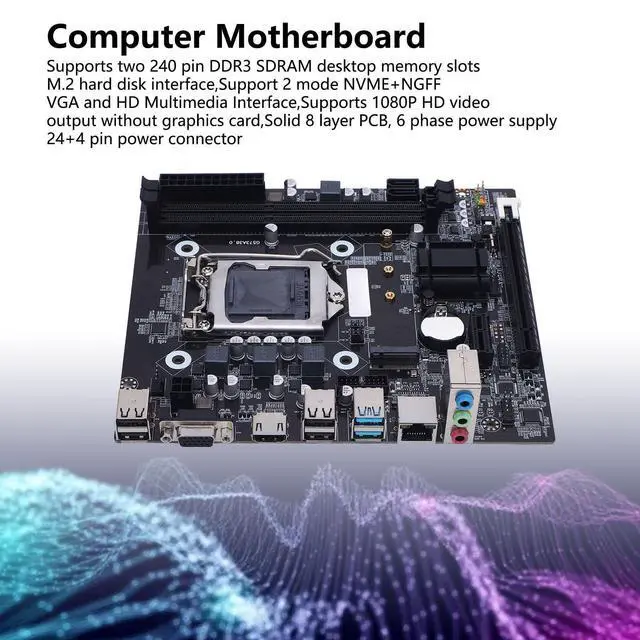

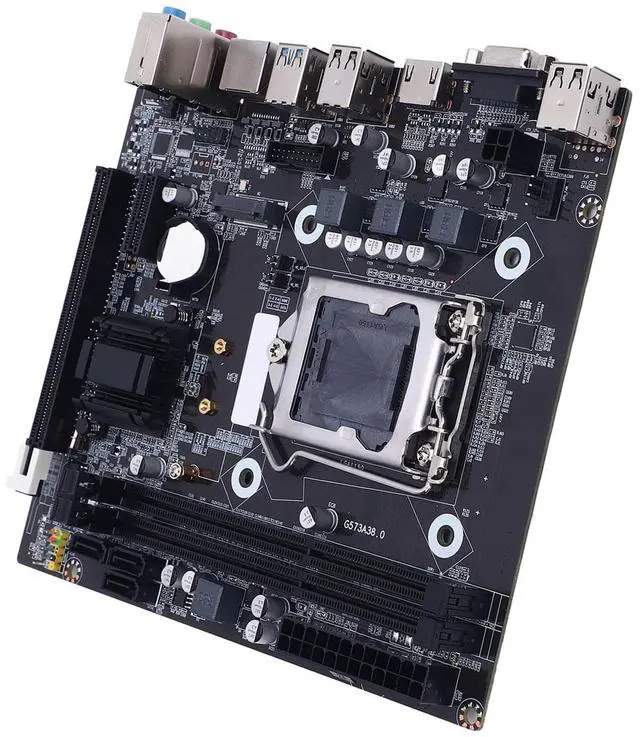

PUSOKEI H81 Gaming Motherboard, LGA 1150 Socket M ATX DDR3 1600MHz 16GB RAM with M.2 NVMe NGFF PCIe 6Gb / s, for Core i3 i5 i7 4th Gen E3 V3 Celeron G Series 22nm CPU
- H81 MOTHERBOARD: This LGA 1150 motherboard is built on the H81 chipset, supporting a range of processors including for Core i3 i5 i7 4th generation, for E3 V3, for Celeron G, and for G series 22nm CPU processors. (Eg. for Core for Core i7-4770, for Core i5-4670, for Core i5-4590, for Core i3-4170, for E3-1285 v3, for G3470, for Celeron G1830, etc.)
- 2 CHANNEL DDR3 MEMORY SLOTS: Gaming motherboard supports two 240 pin DDR3 SDRAM desktop memory slots, unbuffered, supports 2 channel effective frequency DDR3 1066 1333 1600 MHZ, memory support up to 16GB, 2 channel architecture.
- M.2 HARD DRIVE INTERFACE: The upgraded H81 motherboard features a high speed M.2 interface, complete with jumpers, Supports 2 mode NVME+NGFF, freely select high and low, extreme PCIE HDD switching and Serial ATA 3.0 (6GB/s)) channel.
- VGA AND HD MULTIMEDIA INTERFACE: Achieve 1080P video output without the need for a dedicated graphics card. Note that to utilize these ports, your CPU must support integrated gr
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec: Item
Type: Gaming
MotherboardModel:
H81Material: PCB
Battery: CR2032 (Built in)
Capacity:
240mAhSocket: LGA1150
SocketCPU Support: for Core i3 i5 i7 4th generation, for E3 V3 series, for Celeron G series, and for G series 22nm
CPU processorsMemory: 2 x 240 pin DDR3 SDRAM slots, maximum memory support 16GB, support 2 channel DDR3 1066 1333 1600
MHzStorage: 2 x Serial ATA 2.0 (3GB/s) ports + 1 x Serial ATA 3.0 (6GB/s) portIntegrated
LAN: for Realtek Onboard 10 100 Mbps
LAN
Expansion Slots: 1x PCI Express x16 slot, 1x PCI Express x1 slotIntegrated
Sound Card: Onboard for Realtek ALC 6 channel HD sound codec, front sound interface, front stereo microphone interfaceI/O
Ports: 4 x USB 2.0, 2 x USB 3.0, 1 x VGA port, 1 x HD Multimedia Interface port, 1 x RJ45 port, 1 x 3 in 1 sound port (Sound input output;
Microphone input)Power Ports: 1 x 24 pin ATX power port, 1 x 4 pin
ATX 12V power portSize: M-ATX (17 x 19cm / 6.7 x 7.5 in)How to
Use: Simply remove the product from the packaging.
PackageList: 1 x Motherboard
Type: Gaming
MotherboardModel:
H81Material: PCB
Battery: CR2032 (Built in)
Capacity:
240mAhSocket: LGA1150
SocketCPU Support: for Core i3 i5 i7 4th generation, for E3 V3 series, for Celeron G series, and for G series 22nm
CPU processorsMemory: 2 x 240 pin DDR3 SDRAM slots, maximum memory support 16GB, support 2 channel DDR3 1066 1333 1600
MHzStorage: 2 x Serial ATA 2.0 (3GB/s) ports + 1 x Serial ATA 3.0 (6GB/s) portIntegrated
LAN: for Realtek Onboard 10 100 Mbps
LAN
Expansion Slots: 1x PCI Express x16 slot, 1x PCI Express x1 slotIntegrated
Sound Card: Onboard for Realtek ALC 6 channel HD sound codec, front sound interface, front stereo microphone interfaceI/O
Ports: 4 x USB 2.0, 2 x USB 3.0, 1 x VGA port, 1 x HD Multimedia Interface port, 1 x RJ45 port, 1 x 3 in 1 sound port (Sound input output;
Microphone input)Power Ports: 1 x 24 pin ATX power port, 1 x 4 pin
ATX 12V power portSize: M-ATX (17 x 19cm / 6.7 x 7.5 in)How to
Use: Simply remove the product from the packaging.
PackageList: 1 x Motherboard
